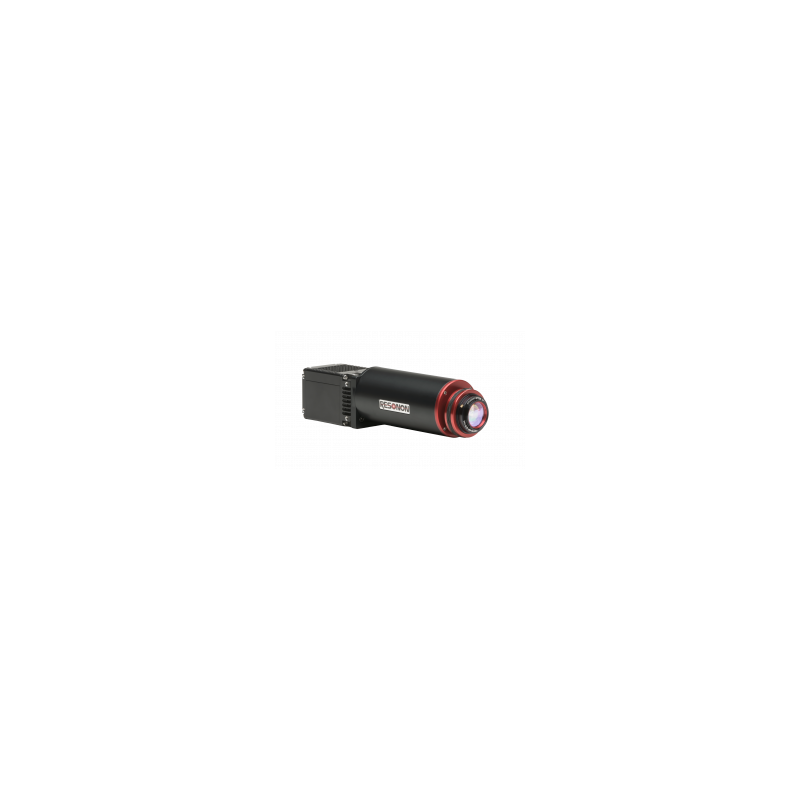

Pika IR+ High-resolution Near Infrared Hyperspectral Imaging Camera

search

Reference number: RES-CM-Pika-IR-L+

The Pika IR+ is a high-performance near-infrared hyperspectral camera. With a spectral range from 900 to 1700 nm, 640 spatial pixels and a spectral resolution of 5.6 nm FWHM, it is ideal for demanding laboratory and field applications.

alt

Need more info?
Contact our expert.

Our Team

alt

Need more info?
Contact our expert.

Optical Test & Measurement Team
Phone: +49 8153 405-11

alt

Need more info?
Contact our expert.

Machine Vision Team
Phone: +49 8153 405-11

Description

Pika IR+ NIR Hyperspectral Camera for Outstanding Data Quality

The Pika IR+ hyperspectral camera covers the near-infrared (NIR) spectral range from 900 to 1700 nm. As a high-performance camera with high spatial and spectral resolution, it is ideal for infrared laboratory applications and offers exceptional image quality.

Key Features

Spectral Range:With a spectral range of 900 to 1700 nm, the Pika IR+ opens up new dimensions of spectral data for your applications.

Spatial precision:With 640 spatial pixels per line, our camera ensures that every detail in your images is carefully captured.

Spectral excellence:With a spectral resolution of 5.6 nm FWHM, the Pika IR+ guarantees exceptional data quality for your projects.

Application areas:

  • Excellent in the lab:

    In the controlled environment of your lab, the Pika IR+ shines and delivers the high-quality data you need for research and experimentation.

  • Outdoor Insights:

    Use hyperspectral imaging outdoors and capture the beauty of nature with confidence. The Pika IR+ is ideal for outdoor scenarios and reveals hidden insights.

  • Standalone Capabilities:

    With camera APIs and programming guidance, the Pika IR+ can operate as a standalone system, providing flexibility and convenience to your workflow.

  • Seamless Integration:

    Effortlessly integrate the Pika IR+ into your existing vision systems using the camera APIs and Resonon programming documentation.

Applications:

  • Food safety and quality control
  • Pharmaceutical manufacturing
  • Sorting and recycling of plastics
  • Environmental monitoring
  • Precision agriculture

A free version of Spectronon, with sample data cubes is available upon request.

Spectral range 900 - 1700 nm
Spectral resolution 5.6 nm
Spectral Channels 336
Dispersion per Pixel 2.38 nm
Spatial channels 640
Frame rate 240 fps
Bit depth 14
Data interface GigE
Power requirements 12V, 5A
Weight 2.95 kg
Dimensions (cm) 11.5 x 26.4 x 8.8
Operating Temperature 5-40 °C
f / # f / 1.8
Pixel Size 15 µm

Standard objective lens options - Pika IR+

Focal Length (mm) FOV (deg) IFOV (mrad)
100 5.5 0.15
75 7.3 0.2
50 11 0.3
25 21.7 0.6
6 77.3 2.5

Other objective lenses are available. Please contact us to discuss your requirements.
