Pika IR + Near Infrared Hyperspectral Imaging Camera

Pika NIR-640 - Near Infrared Hyperspectral Imaging Camera
search
  • Pika NIR-640 - Near Infrared Hyperspectral Imaging Camera

Reference number: RES-CM-Pika-IR+

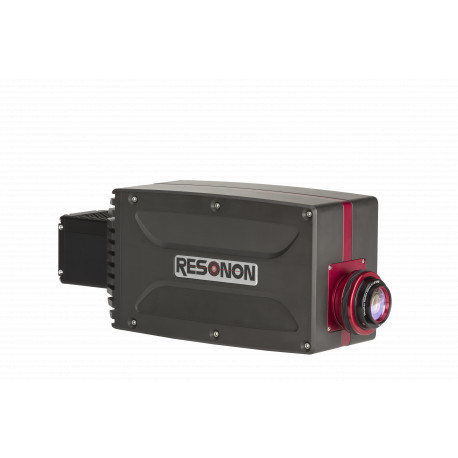

The high-resolution near infrared hyperspectral imaging camera Pika IR + by Resonon can cover a spectral range between 900 - 1700 nm

alt

Need more info?
Contact our expert.

Our Team

Description

Resonon's hyperspectral imaging cameras can be operated using SpectrononPro software, which controls the cameras and scanning stage and has many tools to analyze hyperspectral data.SpectrononPro also has capability to accept user-written plugins, allowing the user to integrate custom data-analysis algorithms into SpectrononPro.

A free version of SpectrononPro, along with sample datacubes is available.

A C++ Software Development Kit is available for customers who want to integrate Resonon hyperspectral cameras into their own software system. Available in Windows and Linux.

The Pika NIR-640 near-infrared hyperspectral imaging camera covers the 900 - 1700 nm spectral

Spectral Range 900 - 1700 nm
Spectral Resolution 2.5 nm
Spectral Channels 328
Dispersion per Pixel = Spectral Sampling 2.5 nm
Spectral Pixels 328
Spatial Channels 640
Max Frame Rate 249 fps
Bit Depth 14
Connection Options GigE
Power Requirements 12V, 5A

Weight 5.9 lbs, 2.7 kgs
Dimensions (in) 4.3 x 11.7 x 3.5
Dimensions (cm) 11.0 x 29.6 x 8.9
Operating Temperature 41-104 F, 5-40 C

f / # f / 1.8
Avg. RMS Spot Radius 10 µm
Smile (peak to peak) 10 µm
Keystone (peak to peak) 10 µm
Pixel size 15 µm

Standard objective lens options - Pika NIR-640

Focal Length (mm) FOV (deg) IFOV (mrad)
75 7.3 0.2
50 11 0.3
25 21.7 0.6
6 88.8 2.5

Other objective lenses are available. Please contact us to discuss your requirements.
