Reference number: RES-CM-Pika-IR

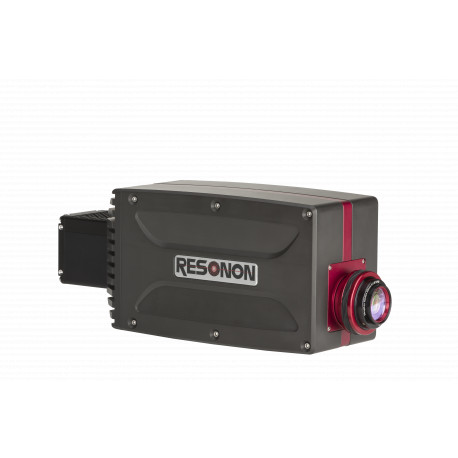

The Resonon Pika IR Hyperspectral imaging camera covers the near-infrared spectral rage from 900-1700 nm
Need more info?
Contact our expert.
Our Team
Description
Resonon's hyperspectral imaging cameras can be operated using SpectrononPro software, which controls the cameras and scanning stage and has many tools to analyze hyperspectral data.SpectrononPro also has capability to accept user-written plugins, allowing the user to integrate custom data-analysis algorithms into SpectrononPro.
A free version of SpectrononPro, along with sample datacubes is available.
A C++ Software Development Kit is available for customers who want to integrate Resonon hyperspectral cameras into their own software system. Available in Windows and Linux.
The Pika NIR near-infrared hyperspectral imaging camera covers the 900 - 1700 nm spectral range.
Specifications
| Spectral Range | 900 - 1700 nm |
| Spectral Resolution | 4.9 nm |
| Spectral Channels | 164 |
| Dispersion per Pixel = Spectral Sampling | 4.9 nm |
| Spectral Pixels | 164 |
| Spatial Channels | 320 |
| Max Frame Rate | 520 fps |
| Bit Depth | 14 |
| Signal-to-Noise Ratio (peak) | 1885 |
| Connection Options | GigE |
| Power Requirements | 12V, 5A |
| Weight | 5.9 lbs, 2.7 kgs |
| Dimensions (in) | 4.3 x 11.7 x 3.5 |
| Dimensions (cm) | 11.0 x 29.6 x 8.9 |
| Operating Temperature | 41-104 F, 5-40 C |
| f / # | f / 1.8 |
| Avg. RMS Spot Radius | 10 µm |
| Smile (peak to peak) | 10 µm |
| Keystone (peak to peak) | 10 µm |
| Pixel size | 30 µm |
Standard objective lens options – Pika IR
| Focal Length (mm) | FOV (deg) | IFOV (mrad) |
| 75 | 7.3 | 0.33 |
| 50 | 11 | 0.5 |
| 25 | 21.7 | 1 |
| 6 | 88.8 | 5.1 |
Other objective lenses are available. Please contact us to discuss your requirements.
