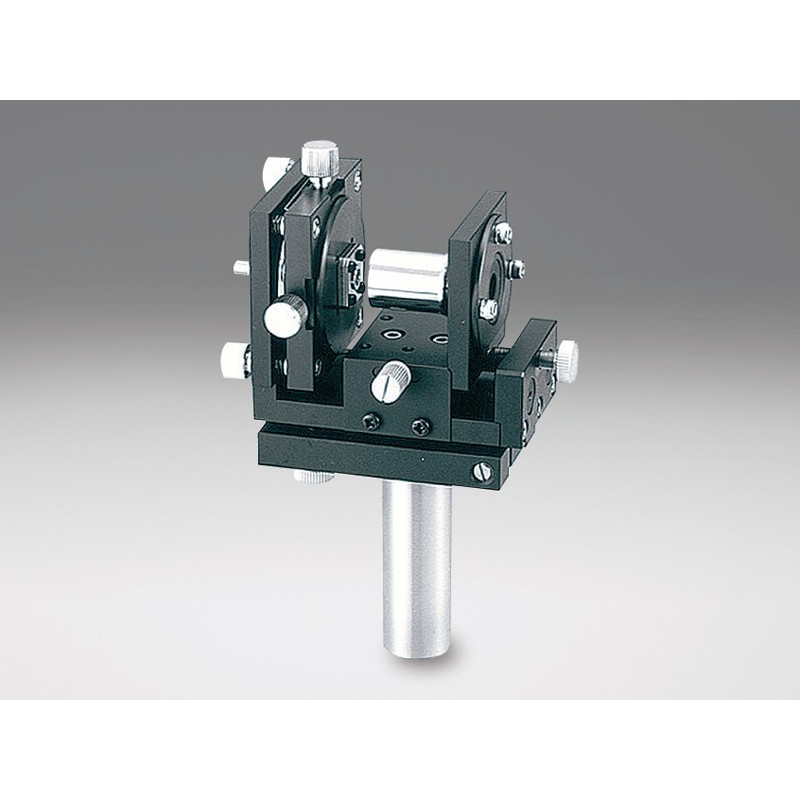

OSE-FOPT-SMA: Laser Forcasing Holder

search

Reference number: OSE-FOPT-SMA

alt

Need more info?
Contact our expert.

Our Team

Description

  • Focal length objectives lens: 16.6
  • Centering adjustment range: 1
  • Centering adjustment resolution [mm/rotation]: 0.5
  • Focus adjustment range: 5
  • Fiber/angle adjustment range (tilt, rotation): 2
  • Holder adjustment range (tilt): 2.5
  • Fiber adjustment resolution (tilt): about 0.7
  • Fiber adjustment resolution (rotation): about 0.7
  • Holder adjustment resolution (tilt): about 0.53
  • Primary material: Aluminum
  • Finish: Black Anodized
  • Weight [kg]: 0.55
  • Compatible connector: SMA
