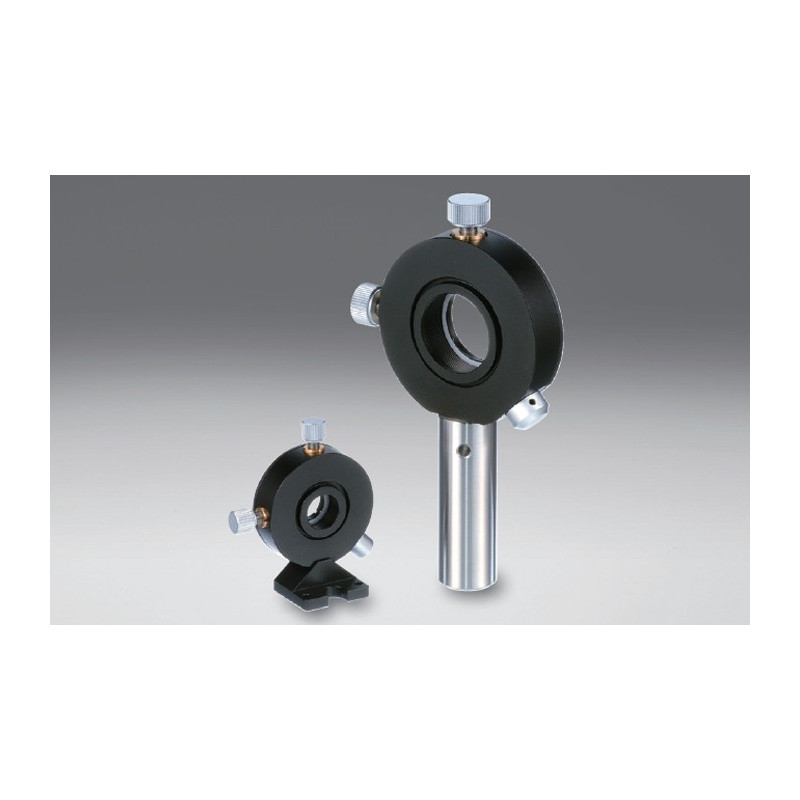

OSE-LHCM-B: Caliper Variable Lens Holders

OSE-LHCM-B: Caliper Variable Lens Holders

Reference number: OSE-LHCM-10B

Compatible Optics Diameter

Compatible Optics Diameter

Need more info?
Contact our expert.

Our Team

I am interested in:

an offer

information material

a call and advice

*Required field

reCAPTCHA

Write your question

Email address^*

Message^*

^* Required fields

Question sent

Your question has been sent!

Your question cannot be sent!

Description

Compatible optics diameter [mm]: 10
Compatible optic thickness [mm]: 1 - 6
Centering adjustment range: 1
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.025
A [mm]: 24
B [mm]: 11.5
C [mm]: 43
D [mm]: 20
E [mm]: 11
F [mm]: 7
G [mm]: 10
H [mm]: 26
I [mm]: 17
J [mm]: 21
K [mm]: 14

Downloads

OSE-LHCM-10B_STP.zip

Holders.zip

Compatible optics diameter [mm]: 12.7
Compatible optic thickness [mm]: 1 - 8
Centering adjustment range: 2
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.045
A [mm]: 32
B [mm]: 12.5
C [mm]: 61
D [mm]: 30
E [mm]: 13
F [mm]: 10
G [mm]: 12.7
H [mm]: 41
I [mm]: 18
J [mm]: 22
K [mm]: 22

Downloads

OSE-LHCM-12.7B_STP.zip

Holders.zip

Compatible optics diameter [mm]: 15
Compatible optic thickness [mm]: 1 - 8
Centering adjustment range: 2
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.045
A [mm]: 32
B [mm]: 12.5
C [mm]: 61
D [mm]: 30
E [mm]: 13
F [mm]: 12
G [mm]: 15
H [mm]: 41
I [mm]: 18
J [mm]: 22
K [mm]: 22

Downloads

OSE-LHCM-15B_STP.zip

Holders.zip
