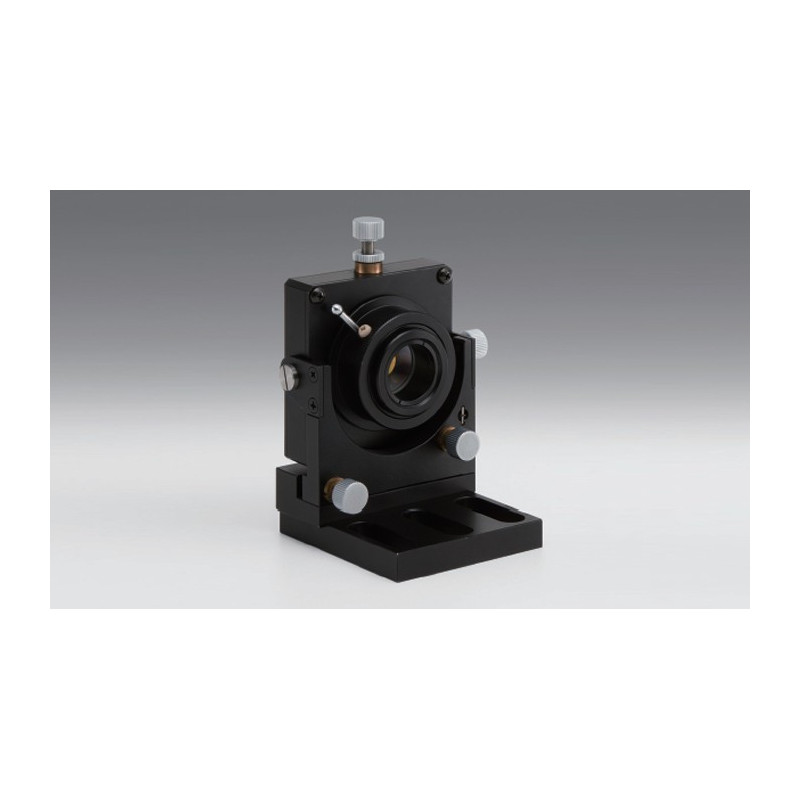

OSE-ALHN-3-EEUU: Three-axis Lens Holders

Reference number: OSE-ALHN-25.4-3-EE

Option

Compatible Optics Diameter

Need more info?
Contact our expert.

Our Team

Description

Compatible optics diameter [mm]: 25
Compatible optic thickness [mm]: 3 - 28
Centering adjustment range: 6
Centering adjustment resolution [mm/rotation]: 0.25
Focus adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.49
A [mm]: 68
B [mm]: 90
C [mm]: 54
D [mm]: 25.4
E [mm]: 22
F [mm]: 28.6
G [mm]: 25
H [mm]: 11.6
I [mm]: 14.3
J [mm]: 21.5
K [mm]: M6
L [mm]: M4

Downloads

OSE-ALHN-25.4-3-EE_STP.zip

Holders.zip

Compatible optics diameter [mm]: 50.8
Compatible optic thickness [mm]: 3 - 28
Centering adjustment range: 6
Centering adjustment resolution [mm/rotation]: 0.25
Focus adjustment range: 3
Zoom range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.78
A [mm]: 88
B [mm]: 112.7
C [mm]: 66.7
D [mm]: 50.8
E [mm]: 46
F [mm]: 36
G [mm]: 50
H [mm]: 10.5
I [mm]: 18
J [mm]: 18
K [mm]: M6
L [mm]: M4

Downloads

OSE-ALHN-50.8-3-EE_STP.zip

Holders.zip

Compatible optics diameter [mm]: 12.7
Compatible optic thickness [mm]: 0 - 27.5
Centering adjustment range: 4
Centering adjustment resolution [mm/rotation]: 0.25
Focus adjustment range: 3
Zoom range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.2

Downloads

OSE-ALHN-12.7-3-UU_STP.zip

Holders.zip

Compatible optics diameter [mm]: 25
Compatible optic thickness [mm]: 3 - 28
Centering adjustment range: 6
Centering adjustment resolution [mm/rotation]: 0.25
Zoom range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.49
A [mm]: 68
B [mm]: 90
C [mm]: 54
D [mm]: 25.4
E [mm]: 22
F [mm]: 28.6
G [mm]: 25
H [mm]: 11.6
I [mm]: 14.3
J [mm]: 21.5
K [mm]: 1/4-20UNC
L [mm]: 8-32UNC

Downloads

OSE-ALHN-25.4-3-UU_STP.zip

Holders.zip

Compatible optics diameter [mm]: 50.8
Compatible optic thickness [mm]: 3 - 28
Centering adjustment range: 6
Centering adjustment resolution [mm/rotation]: 0.25
Zoom range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.78
A [mm]: 88
B [mm]: 112.7
C [mm]: 66.7
D [mm]: 50.8
E [mm]: 46
F [mm]: 36
G [mm]: 50
H [mm]: 10.5
I [mm]: 18
J [mm]: 18
K [mm]: 1/4-20UNC
L [mm]: 8-32UNC

Downloads

OSE-ALHN-50.8-3-UU_STP.zip

Holders.zip
