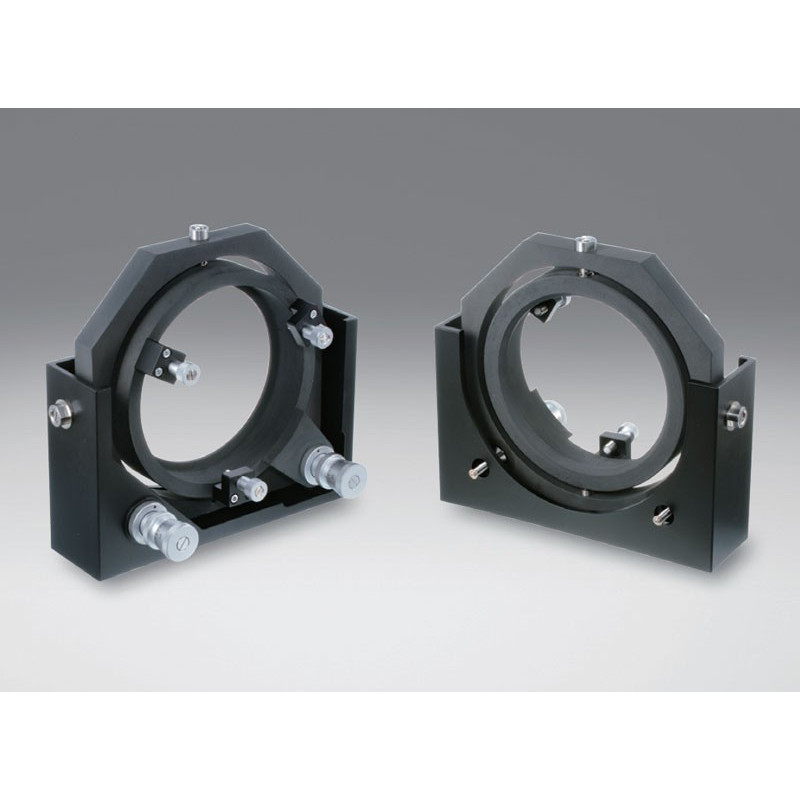

OSE-MHD: Larger Precision Gimbal Mirror holders

Reference number: OSE-MHD-100

Option

Compatible Optics Diameter

Option

Compatible Optics Diameter

Need more info?
Contact our expert.

Our Team

Description

Compatible optics diameter [mm]: 100
Compatible optic thickness [mm]: 5 - 28
Adjustment range tilt ±[mm]: 5.7
Adjustment range rotation ±[mm]: 5.7
Coarse resolution /tilt [°/rotation]: about 0.57
Coarse resolution /rotation [°/rotation]: about 0.57
Fine adjuster indicator conversion /tilt: about 0.0008
Fine adjuster indicator conversion /rotation: about 0.0008
Primary material: Aluminium
Finish: Black matte (main unit) , Black Anodized (Holder)
Weight [kg]: 2.1

Downloads

OSE-MHD-100_STP.zip

OSE-MHD.pdf

Holders.zip

Compatible optics diameter [mm]: 101.6
Compatible optic thickness [mm]: 5 - 28
Adjustment range tilt ±[mm]: 5.7
Adjustment range rotation ±[mm]: 5.7
Coarse resolution /tilt [°/rotation]: about 0.57
Coarse resolution /rotation [°/rotation]: about 0.57
Fine adjuster indicator conversion /tilt: about 0.0008
Fine adjuster indicator conversion /rotation: about 0.0008
Primary material: Aluminium
Finish: Black matte (main unit) , Black Anodized (Holder)
Weight [kg]: 2.1

Downloads

OSE-MHD-101.6_STP.zip

OSE-MHD.pdf

Holders.zip

Compatible optics diameter [mm]: 150
Compatible optic thickness [mm]: 5 - 38
Adjustment range tilt ±[mm]: 4.3
Adjustment range rotation ±[mm]: 4.3
Coarse resolution /tilt [°/rotation]: about 0.43
Coarse resolution /rotation [°/rotation]: about 0.43
Fine adjuster indicator conversion /tilt: about 0.0006
Fine adjuster indicator conversion /rotation: about 0.0006
Primary material: Aluminium
Finish: Black matte (main unit) , Black Anodized (Holder)
Weight [kg]: 3.3

Downloads

OSE-MHD-150_STP.zip

OSE-MHD.pdf

Holders.zip

Compatible optics diameter [mm]: 152.4
Compatible optic thickness [mm]: 5 - 38
Adjustment range tilt ±[mm]: 4.3
Adjustment range rotation ±[mm]: 4.3
Coarse resolution /tilt [°/rotation]: about 0.43
Coarse resolution /rotation [°/rotation]: about 0.43
Fine adjuster indicator conversion /tilt: about 0.0006
Fine adjuster indicator conversion /rotation: about 0.0006
Primary material: Aluminium
Finish: Black matte (main unit) , Black Anodized (Holder)
Weight [kg]: 3.3

Downloads

OSE-MHD-152.4_STP.zip

OSE-MHD.pdf

Holders.zip

Compatible optics diameter [mm]: 200
Compatible optic thickness [mm]: 20 - 44
Adjustment range tilt ±[mm]: 3.4
Adjustment range rotation ±[mm]: 3.4
Coarse resolution /tilt [°/rotation]: about 0.34
Coarse resolution /rotation [°/rotation]: about 0.34
Fine adjuster indicator conversion /tilt: about 0.0005
Fine adjuster indicator conversion /rotation: about 0.0005
Primary material: Aluminium
Finish: Black matte (main unit) , Black Anodized (Holder)
Weight [kg]: 4.9

Downloads

OSE-MHD-200_STP.zip

OSE-MHD.pdf

Holders.zip

Compatible optics diameter [mm]: 203.2
Compatible optic thickness [mm]: 20 - 44
Adjustment range tilt ±[mm]: 3.4
Adjustment range rotation ±[mm]: 3.4
Coarse resolution /tilt [°/rotation]: about 0.34
Coarse resolution /rotation [°/rotation]: about 0.34
Fine adjuster indicator conversion /tilt: about 0.0005
Fine adjuster indicator conversion /rotation: about 0.0005
Primary material: Aluminium
Finish: Black matte (main unit) , Black Anodized (Holder)
Weight [kg]: 4.9

Downloads

OSE-MHD-203.2_STP.zip

OSE-MHD.pdf

Holders.zip

Compatible optics diameter [mm]: 254
Compatible optic thickness [mm]: 40 - 54
Adjustment range tilt ±[mm]: 2.8
Adjustment range rotation ±[mm]: 2.8
Coarse resolution /tilt [°/rotation]: about 0.28
Coarse resolution /rotation [°/rotation]: about 0.28
Fine adjuster indicator conversion /tilt: about 0.0004
Fine adjuster indicator conversion /rotation: about 0.0004
Primary material: Aluminium
Finish: Black matte (main unit) , Black Anodized (Holder)
Weight [kg]: 6.2

Downloads

OSE-MHD-254_STP.zip

OSE-MHD.pdf

Holders.zip

Compatible optics diameter [mm]: 254
Compatible optic thickness [mm]: 40 - 54
Adjustment range tilt ±[mm]: 2.8
Adjustment range rotation ±[mm]: 2.8
Coarse resolution /tilt [°/rotation]: about 0.28
Coarse resolution /rotation [°/rotation]: about 0.28
Fine adjuster indicator conversion /tilt: about 0.0004
Fine adjuster indicator conversion /rotation: about 0.0004
Primary material: Aluminium
Finish: Black matte (main unit) , Black Anodized (Holder)
Weight [kg]: 6.2

Downloads

OSE-MHD-254PUU_STP.zip

OSE-MHD.pdf

Holders.zip

Compatible optics diameter [mm]: 300
Compatible optic thickness [mm]: 40 - 54
Adjustment range tilt ±[mm]: 2.3
Adjustment range rotation ±[mm]: 2.3
Coarse resolution /tilt [°/rotation]: about 0.23
Coarse resolution /rotation [°/rotation]: about 0.23
Fine adjuster indicator conversion /tilt: about 0.0003
Fine adjuster indicator conversion /rotation: about 0.0003
Primary material: Aluminium
Finish: Black matte (main unit) , Black Anodized (Holder)
Weight [kg]: 11

Downloads

OSE-MHD-300_STP.zip

OSE-MHD.pdf

Holders.zip
