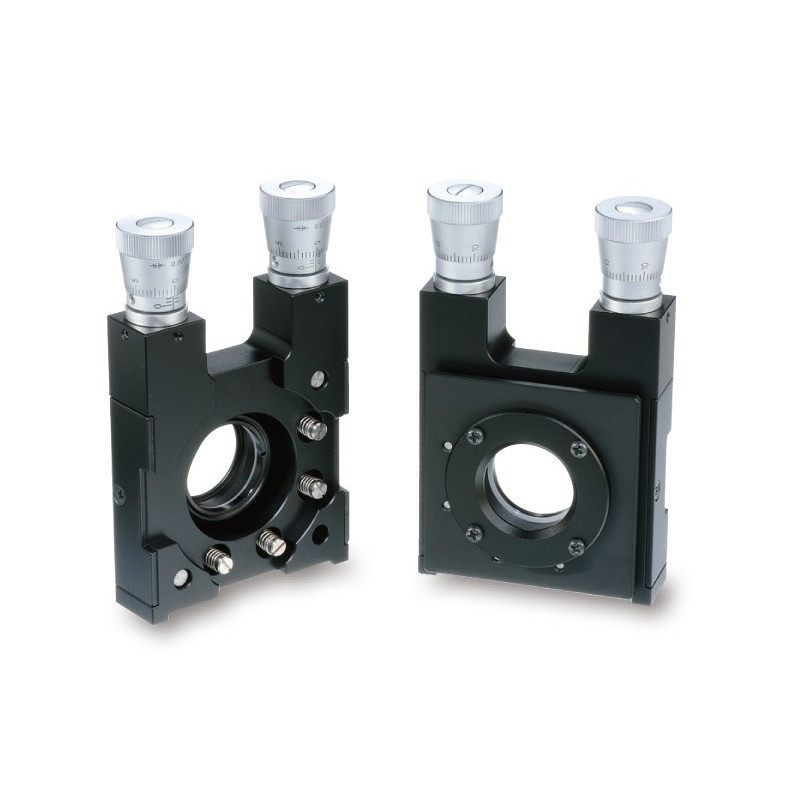

OSE-LMHB-DM: Topmike Vertical Control Mirror holder, D: 30mm

Reference number: OSE-LMHB-30DM

Compatible Optics Diameter

Need more info?
Contact our expert.

Our Team

Description

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 3 - 9
Adjustment range tilt ±[mm]: 2.8
Adjustment range rotation ±[mm]: 2.8
Coarse resolution /tilt [°/rotation]: about 0.57
Coarse resolution /rotation [°/rotation]: about 0.57
Fine adjustment range /tilt [°/rotation]: about 0.57
Fine adjustment range /rotation [°/rotation]: about 0.57
Fine adjuster indicator conversion /tilt: about 0.0011
Fine adjuster indicator conversion /rotation: about 0.0011
Resolution /tilt [°/rotation]: -
Resolution /rotation [°/rotation]: -
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.44

Downloads

OSE-LMHB-30DM_STP.zip

Holders.zip

Compatible optics diameter [mm]: 50
Compatible optic thickness [mm]: 2 - 16
Adjustment range tilt ±[mm]: 1.8
Adjustment range rotation ±[mm]: 1.8
Coarse resolution /tilt [°/rotation]: about 0.36
Coarse resolution /rotation [°/rotation]: about 0.36
Fine adjustment range /tilt [°/rotation]: about 0.36
Fine adjustment range /rotation [°/rotation]: about 0.36
Fine adjuster indicator conversion /tilt: about 0.0007
Fine adjuster indicator conversion /rotation: about 0.0007
Resolution /tilt [°/rotation]: -
Resolution /rotation [°/rotation]: -
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.75

Downloads

OSE-LMHB-50DM_STP.zip

Holders.zip

Compatible optics diameter [mm]: 60
Compatible optic thickness [mm]: 4 - 17
Adjustment range tilt ±[mm]: 1.8
Adjustment range rotation ±[mm]: 1.8
Coarse resolution /tilt [°/rotation]: about 0.36
Coarse resolution /rotation [°/rotation]: about 0.36
Fine adjustment range /tilt [°/rotation]: about 0.36
Fine adjustment range /rotation [°/rotation]: about 0.36
Fine adjuster indicator conversion /tilt: about 0.0007
Fine adjuster indicator conversion /rotation: about 0.0007
Resolution /tilt [°/rotation]: -
Resolution /rotation [°/rotation]: -
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.7

Downloads

OSE-LMHB-60DM_STP.zip

Holders.zip
