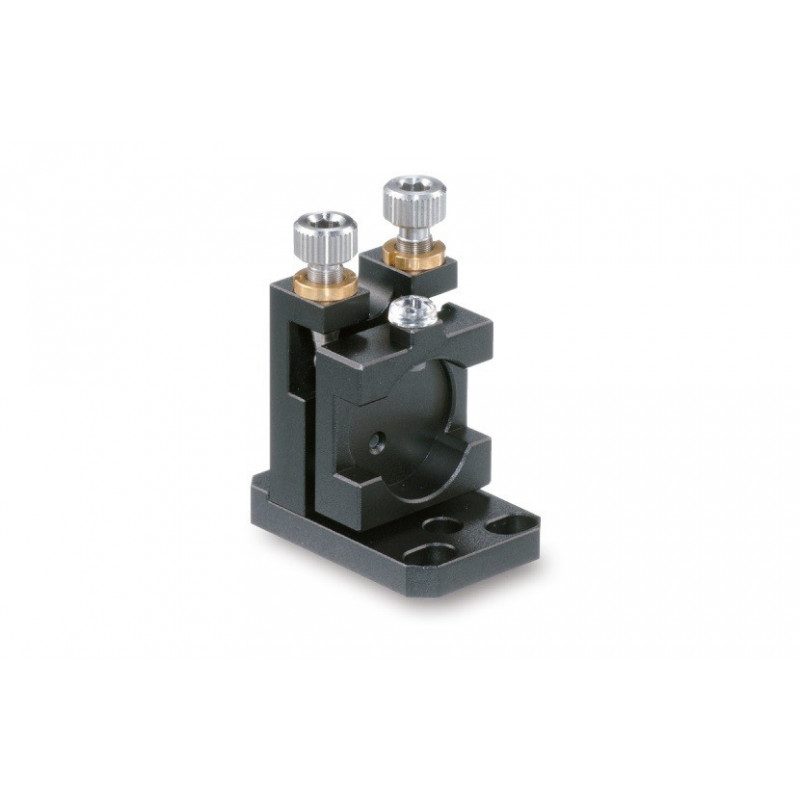

OSE-LMMH-B: Vertical Control Small Mirror holders (Base Type)

OSE-LMMH-B: Vertical Control Small Mirror holders (Base Type)

Reference number: OSE-LMMH-10B

Compatible Optics Diameter

Compatible Optics Diameter

Need more info?
Contact our expert.

Our Team

I am interested in:

an offer

information material

a call and advice

*Required field

reCAPTCHA

Write your question

Email address^*

Message^*

^* Required fields

Question sent

Your question has been sent!

Your question cannot be sent!

Description

Compatible optics diameter [mm]: 10
Compatible optic thickness [mm]: 5
Adjustment range tilt ±[mm]: 2.5
Adjustment range rotation ±[mm]: 2.5
Resolution /tilt [°/rotation]: about 0.28
Resolution /rotation [°/rotation]: about 0.3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.03

Downloads

OSE-LMMH-10B_STP.zip

Holders.zip

Compatible optics diameter [mm]: 12.7
Compatible optic thickness [mm]: 5
Adjustment range tilt ±[mm]: 2.5
Adjustment range rotation ±[mm]: 2.5
Resolution /tilt [°/rotation]: about 0.28
Resolution /rotation [°/rotation]: about 0.3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.25

Downloads

OSE-LMMH-12.7B_STP.zip

Holders.zip

Compatible optics diameter [mm]: 15
Compatible optic thickness [mm]: 5
Adjustment range tilt ±[mm]: 2.5
Adjustment range rotation ±[mm]: 2.5
Resolution /tilt [°/rotation]: about 0.28
Resolution /rotation [°/rotation]: about 0.3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.03

Downloads

OSE-LMMH-15B_STP.zip

Holders.zip
