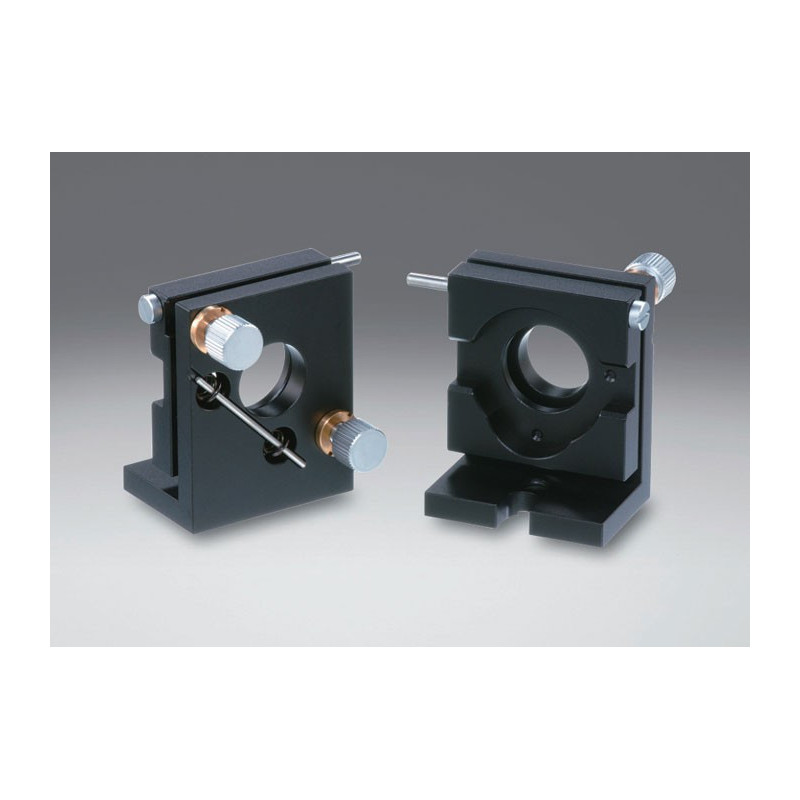

OSE-MHF: One-Touch Kinematic Mirror Holders

Reference number: OSE-MHF-20

Type

Compatible Optics Diameter

Type

Compatible Optics Diameter

Need more info?
Contact our expert.

Our Team

Description

Compatible optics diameter [mm]: 20
Compatible optic thickness [mm]: 3 - 5
Adjustment range tilt ±[mm]: 3
Adjustment range rotation ±[mm]: 3
Fine adjustment range /tilt [°/rotation]: about 0.72
Fine adjustment range /rotation [°/rotation]: about 0.72
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.11

Downloads

OSE-MHF-20_STP.zip

Holders.zip

Compatible optics diameter [mm]: 20
Compatible optic thickness [mm]: 3 - 5
Adjustment range tilt ±[mm]: 3
Adjustment range rotation ±[mm]: 3
Fine adjustment range /tilt [°/rotation]: about 0.72
Fine adjustment range /rotation [°/rotation]: about 0.72
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.06

Downloads

OSE-MHF-20F_STP.zip

Holders.zip

Compatible optics diameter [mm]: 25.4
Compatible optic thickness [mm]: 3 - 5
Adjustment range tilt ±[mm]: 3
Adjustment range rotation ±[mm]: 3
Fine adjustment range /tilt [°/rotation]: about 0.57
Fine adjustment range /rotation [°/rotation]: about 0.57
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.12

Downloads

OSE-MHF-25.4_STP.zip

Holders.zip

Compatible optics diameter [mm]: 25.4
Compatible optic thickness [mm]: 3 - 5
Adjustment range tilt ±[mm]: 3
Adjustment range rotation ±[mm]: 3
Fine adjustment range /tilt [°/rotation]: about 0.57
Fine adjustment range /rotation [°/rotation]: about 0.57
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.07

Downloads

OSE-MHF-25.4F_STP.zip

Holders.zip

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 3 - 5
Adjustment range tilt ±[mm]: 3
Adjustment range rotation ±[mm]: 3
Fine adjustment range /tilt [°/rotation]: about 0.48
Fine adjustment range /rotation [°/rotation]: about 0.48
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.15

Downloads

OSE-MHF-30_STP.zip

Holders.zip

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 3 - 5
Adjustment range tilt ±[mm]: 3
Adjustment range rotation ±[mm]: 3
Fine adjustment range /tilt [°/rotation]: about 0.48
Fine adjustment range /rotation [°/rotation]: about 0.48
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.1

Downloads

OSE-MHF-30F_STP.zip

Holders.zip

Compatible optics diameter [mm]: 50.8
Compatible optic thickness [mm]: 5 - 8
Adjustment range tilt ±[mm]: 3
Adjustment range rotation ±[mm]: 3
Fine adjustment range /tilt [°/rotation]: about 0.3
Fine adjustment range /rotation [°/rotation]: about 0.3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.3

Downloads

OSE-MHF-50.8_STP.zip

Holders.zip

Compatible optics diameter [mm]: 50.8
Compatible optic thickness [mm]: 5 - 8
Adjustment range tilt ±[mm]: 3
Adjustment range rotation ±[mm]: 3
Fine adjustment range /tilt [°/rotation]: about 0.3
Fine adjustment range /rotation [°/rotation]: about 0.3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.25

Downloads

OSE-MHF-50.8F_STP.zip

Holders.zip

Compatible optics diameter [mm]: 50
Compatible optic thickness [mm]: 5 - 8
Adjustment range tilt ±[mm]: 3
Adjustment range rotation ±[mm]: 3
Fine adjustment range /tilt [°/rotation]: about 0.3
Fine adjustment range /rotation [°/rotation]: about 0.3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.25

Downloads

OSE-MHF-50F_STP.zip

Holders.zip
