Optics & Optomechanics
Filters

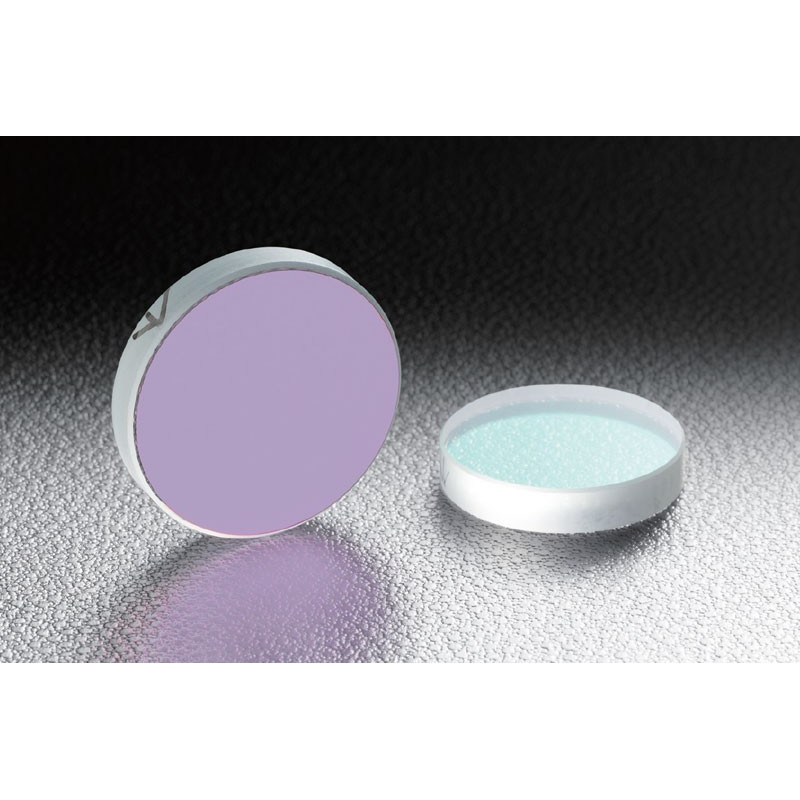

Notch Filters, OSE-NF

Notch Filters, OSE-NF

Reference number: OSE-NF-25C05-27-355

Notch Filter is a filter that cuts only a specific wavelength.

Cutoff wavelength

Need more info?
Contact our expert.

Our Team

I am interested in:

an offer

information material

a call and advice

*Required field

reCAPTCHA

Write your question

Email address^*

Message^*

^* Required fields

Question sent

Your question has been sent!

Your question cannot be sent!

Description

Those products may also interest you

Continuously Variable Filters

DOT-Variable-Filters

€0.00
Absorptive Neutral Density Filter, Circle

OSE-AND-C

€24.40
Absorptive Neutral Density Filter, Mounted

OSE-MAN

€40.80
Absorptive Neutral Density Filter, Square

OSE-AND-S

€24.40
Absorptive Neutral Density Filter, YAG, Circle

OSE-ANDY-C

€44.90

Surface Quality: 60-40

Material: Syntheticfused silica

Coating: Dielectric multi-layer coating

Transmittance [%]: Average 90

Half bandwidth [nm]: 27±2.7

Cutoff wavelength [nm]: 355

Optical density OD: >4

Transmittance wavelength ranges [nm]: 320- 335, 375-500

Incident angle: 0°

Downloads

OSE-nf.pdf

Surface Quality: 60-40

Material: BK7

Coating: Dielectric multi-layer coating

Transmittance [%]: Average 90

Half bandwidth [nm]: 40±4.0

Cutoff wavelength [nm]: 532

Optical density OD: >4

Transmittance wavelength ranges [nm]: 400- 502, 562-700

Incident angle: 0°

Downloads

OSE-nf.pdf

Surface Quality: 60-40

Material: BK7

Coating: Dielectric multi-layer coating

Transmittance [%]: Average 90

Half bandwidth [nm]: 47±4.7

Cutoff wavelength [nm]: 633

Optical density OD: >4

Transmittance wavelength ranges [nm]: 475- 597, 669-850

Incident angle: 0°

Downloads

OSE-nf.pdf

Surface Quality: 60-40

Material: BK7

Coating: Dielectric multi-layer coating

Transmittance [%]: Average 90

Half bandwidth [nm]: 80±8.0

Cutoff wavelength [nm]: 1064

Optical density OD: >4

Transmittance wavelength ranges [nm]: 800- 1004, 1124-1400

Incident angle: 0°

Downloads

OSE-nf.pdf

Notch Filter is a filter that cuts only a specific wavelength.
