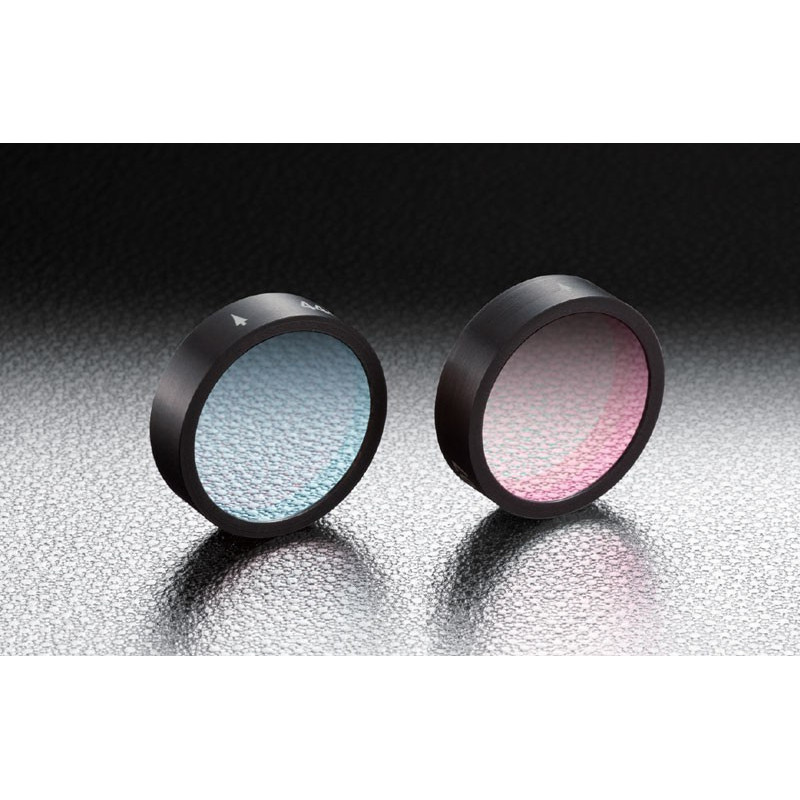

Raman Longpass Filters

Reference number: OSE-RSF-25C-325RU

It is available to cut the excitation laser beam and extracted with high transmittance Raman shifted light on the longer wavelength side with a sharp rise.

Laser wavelength in nm

Need more info?
Contact our expert.

Our Team

Description

Surface Quality: 60-40

Coating: Dielectric multi-layer coating

Wavelength [nm]: 329.2 - 733.1

Transmittance [%]: >80

Blocking range laser wavelength [nm]: 325

Blocking range optical density (average): 6

Incident angle: 0°

Downloads

OSE-rsf.pdf

DOWNLOAD

Surface Quality: 60-40

Coating: Dielectric multi-layer coating

Wavelength [nm]: 359.6 - 800.8

Transmittance [%]: >90

Blocking range laser wavelength [nm]: 355

Blocking range optical density (average): 6

Incident angle: 0°

Downloads

OSE-rsf.pdf

DOWNLOAD

Surface Quality: 60-40

Coating: Dielectric multi-layer coating

Wavelength [nm]: 368.5 - 820.6

Transmittance [%]: >90

Blocking range laser wavelength [nm]: 363.8

Blocking range optical density (average): 6

Incident angle: 0°

Downloads

OSE-rsf.pdf

DOWNLOAD

Surface Quality: 60-40

Coating: Dielectric multi-layer coating

Wavelength [nm]: 447.3 - 996.1

Transmittance [%]: >90

Blocking range laser wavelength [nm]: 441.6

Blocking range optical density (average): 6

Incident angle: 0°

Downloads

OSE-rsf.pdf

DOWNLOAD

Surface Quality: 60-40

Coating: Dielectric multi-layer coating

Wavelength [nm]: 463.9 - 1032.9

Transmittance [%]: >90

Blocking range laser wavelength [nm]: 457.9

Blocking range optical density (average): 6

Incident angle: 0°

Downloads

OSE-rsf.pdf

DOWNLOAD

Surface Quality: 60-40

Coating: Dielectric multi-layer coating

Wavelength [nm]: 479.1 - 683.9

Transmittance [%]: >90

Blocking range laser wavelength [nm]: 473

Blocking range optical density (average): 6

Incident angle: 0°

Downloads

OSE-rsf.pdf

DOWNLOAD

Surface Quality: 60-40

Coating: Dielectric multi-layer coating

Wavelength [nm]: 494.3 - 1100.8

Transmittance [%]: >90

Blocking range laser wavelength [nm]: 488

Blocking range optical density (average): 6

Incident angle: 0°

Downloads

OSE-rsf.pdf

DOWNLOAD

Surface Quality: 60-40

Coating: Dielectric multi-layer coating

Wavelength [nm]: 521.2 - 1160.5

Transmittance [%]: >90

Blocking range laser wavelength [nm]: 514.5

Blocking range optical density (average): 6

Incident angle: 0°

Downloads

OSE-rsf.pdf

DOWNLOAD

Surface Quality: 60-40

Coating: Dielectric multi-layer coating

Wavelength [nm]: 538.9 - 1200.0

Transmittance [%]: >90

Blocking range laser wavelength [nm]: 532

Blocking range optical density (average): 6

Incident angle: 0°

Downloads

OSE-rsf.pdf

DOWNLOAD

Surface Quality: 60-40

Coating: Dielectric multi-layer coating

Wavelength [nm]: 568.7 - 1266.3

Transmittance [%]: >90

Blocking range laser wavelength [nm]: 561.4

Blocking range optical density (average): 6

Incident angle: 0°

Downloads

OSE-rsf.pdf

DOWNLOAD

Surface Quality: 60-40

Coating: Dielectric multi-layer coating

Wavelength [nm]: 575.6 - 1281.7

Transmittance [%]: >90

Blocking range laser wavelength [nm]: 568.2

Blocking range optical density (average): 6

Incident angle: 0°

Downloads

OSE-rsf.pdf

DOWNLOAD

Surface Quality: 60-40

Coating: Dielectric multi-layer coating

Wavelength [nm]: 641.0 - 1427.4

Transmittance [%]: >90

Blocking range laser wavelength [nm]: 632.8

Blocking range optical density (average): 6

Incident angle: 0°

Downloads

OSE-rsf.pdf

DOWNLOAD

Surface Quality: 60-40

Coating: Dielectric multi-layer coating

Wavelength [nm]: 655.5 - 1441.9

Transmittance [%]: >90

Blocking range laser wavelength [nm]: 647.1

Blocking range optical density (average): 6

Incident angle: 0°

Downloads

OSE-rsf.pdf

DOWNLOAD

Surface Quality: 60-40

Coating: Dielectric multi-layer coating

Wavelength [nm]: 672.6 - 1497.7

Transmittance [%]: >90

Blocking range laser wavelength [nm]: 664

Blocking range optical density (average): 6

Incident angle: 0°

Downloads

OSE-rsf.pdf

DOWNLOAD

Surface Quality: 60-40

Coating: Dielectric multi-layer coating

Wavelength [nm]: 790.1 - 1008.0

Transmittance [%]: >90

Blocking range laser wavelength [nm]: 780

Blocking range optical density (average): 6

Incident angle: 0°

Downloads

OSE-rsf.pdf

DOWNLOAD

Surface Quality: 60-40

Coating: Dielectric multi-layer coating

Wavelength [nm]: 804.0 - 1500.0

Transmittance [%]: >90

Blocking range laser wavelength [nm]: 785

Blocking range optical density (average): 6

Incident angle: 0°

Downloads

OSE-rsf.pdf

DOWNLOAD

Surface Quality: 60-40

Coating: Dielectric multi-layer coating

Wavelength [nm]: 818.5 - 1822.6

Transmittance [%]: >90

Blocking range laser wavelength [nm]: 808

Blocking range optical density (average): 6

Incident angle: 0°

Downloads

OSE-rsf.pdf

DOWNLOAD

Surface Quality: 60-40

Coating: Dielectric multi-layer coating

Wavelength [nm]: 840.8 - 1872.2

Transmittance [%]: >90

Blocking range laser wavelength [nm]: 830

Blocking range optical density (average): 6

Incident angle: 0°

Downloads

OSE-rsf.pdf

DOWNLOAD

Surface Quality: 60-40

Coating: Dielectric multi-layer coating

Wavelength [nm]: 992.7 - 2000.0

Transmittance [%]: >90

Blocking range laser wavelength [nm]: 980

Blocking range optical density (average): 6

Incident angle: 0°

Downloads

OSE-rsf.pdf

DOWNLOAD

Surface Quality: 60-40

Coating: Dielectric multi-layer coating

Wavelength [nm]: 1077.8 - 2000.0

Transmittance [%]: >90

Blocking range laser wavelength [nm]: 1064

Blocking range optical density (average): 6

Incident angle: 0°

Downloads

OSE-rsf.pdf

DOWNLOAD

Surface Quality: 60-40

Coating: Dielectric multi-layer coating

Wavelength [nm]: 1336.1 - 2000.0

Transmittance [%]: >90

Blocking range laser wavelength [nm]: 1319

Blocking range optical density (average): 6

Incident angle: 0°

Downloads

OSE-rsf.pdf

DOWNLOAD
