IBC™ Brand Cleaning Tools

search

Reference number: USC-One-Click-HE2.0

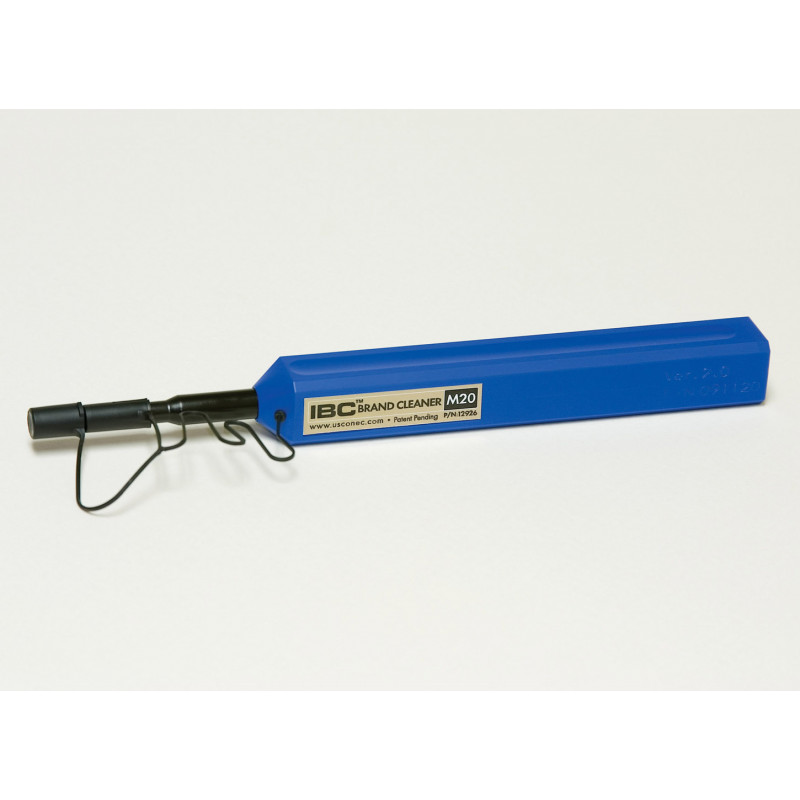

The US Conec IBC™ Brand Cleaners are mechanical cleaning tools designed to clean connectors residing in an adapter or faceplate and unmated connectors.

alt

Need more info?
Contact our expert.

Our Team

Description

The IBC™ Brand Cleaning tools use a novel dry cleaning strand to gently sweep and lift away dust and residues from the connector end face.


The IBC™ Brand Cleaners are effective at removing Arizone Road Dust (ISO 12103-1), Alcohol Residue, Distilled Water Residue, Skin Oil Residue, Vegetable Residue, Graphite, Salt Water Residue, Hand Lotion and T-shirt Lint.

Features
Audible CLICK to alert the operator when tools is fully engaged Over 525+ engagements per unit Cleans connectors loaded in a bulkhead adapter and on unmated cable assemblies Dry cleaning strand eliminates the need for solvents to be effective Crush resistant to over 250N Impact resistant to survive drops over 1.5M Simple pushing motion to engage tool

Applications



  • Telecom Central Offices
  • Data Centers
  • Cable Television Head End
  • Outside Plant and Fiber To The Home
  • Fiber to The Antenna for WiMax and Cellular Networks
  • Fiber Optic Broadcasting including HDTV
  • Fiber Optic Military and Civilian Aviation
  • Military and Civilian Maritime Optical Networks
  • Fiber Optic Satellite Communication Systems

 Part Number

Description

13309

USC-One-click-HE-1,6

  • Cleans harsh environment 1.6mm based connector systems M38999
  • Cleans plug and socket termini
  • RoHS compliant

12926

USC-One-click-HE-2,0

  • Cleans harsh environment 2.0mm based connector systems - SMPTE 304M and SMPTE 358M and MIL PRF 28876
  • Cleans plug and socket termini
  • RoHS compliant

9392

USC-One-click-2,5

  • 525 + cleaning cycles
  • All 2,5 mm ferrules with PC and APC polish

9393

USC-One-click- 1,25

  • 525 + cleaning cycles
  • All 1.25 mm ferrules with PC and APC polish

13310

USC-One-click-HE-2,5

  • 525 + cleaning cycles
  • All 2.5 mm ferrules incl E2000 with PC and APC polish
  • Cleans TFOCA based connector systems

7104

USC-One-Click-MPO

  • 600 cleaning cycles
  • Cleans MTP and MPO connector with "male" and "female" connections with PC and APC polish
