Dielectric Cube Half Mirrors

Reference number: OSE-CSMH-10-405

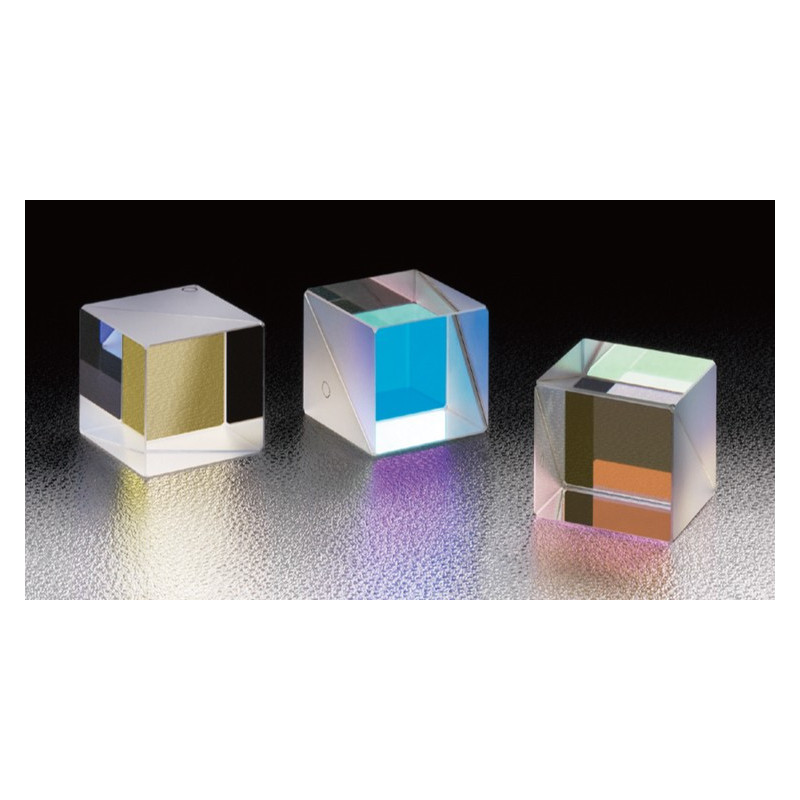

Dielectric cube half mirrors consist of two right-angled prisms. One of them is coated with a dielectric multilayer partial reflection layer on the hypotenuse surface.

Wavelength Range in nm

A - B - C in mm

Need more info?
Contact our expert.

Our Team

Description

Material: BK7
Surface flatness of substrate: λ/4
Beam Deviation: 5
Coating: Hypotenuse surface: Dielectric multi-layer coating Four surfaces: Multi-layer anti-reflection coating
Incident angle [°]: 0
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0,3
Surface Quality (Scratch-Dig): 20-10
Clear aperture: 85% of circle to actual dimension (80% of actual aperture for 5 and 7mm dimension (A=B=C) products.)
