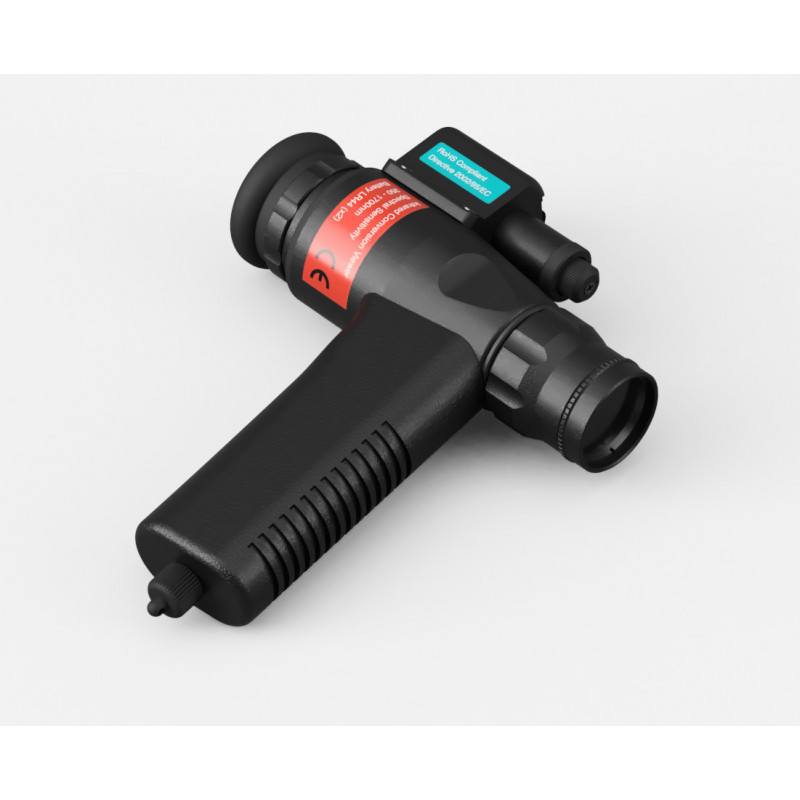

Miniature IR viewer, 1.8x, 350-1700 nm

search

Reference number: IRV-SM-3R-1700-1.8X

IR viewer is based on a first generation high-grade image converter that has an electro-static focusing system, photocathode S-1+ with increased concentration of oxygen and screen of type P-20 with maximum of luminescence at 550 nm.

alt

Need more info?
Contact our expert.

Our Team

Description

Miniature infrared (IR) viewer

Main features:

  • Compact
  • Battery powered
  • Hand-held / tripod fixed
  • Up to 100 hours continuous working
  • IR cut-off filter, batteries, case and more are included
  • 2 years warranty

Application examples:

  • Laser alignment and safety
  • Semiconductor inspection
  • Forensics and art restoration
  • Photo processing
  • Thermal imaging

Specifications:

  • Resolution (centre): 50 Lp / mm
  • Working Distance of Lens: 12.5 (± 0.2) mm
  • Battery: 2 x LR44 or CR1/3N
  • Non-uniformity of Screen: < 20 %
  • Non-uniformity of Response: < 15 %
  • Distortion of Image: < 18 %
  • Battery Life (continuous): 10 hours (up to 100 hours with AAA batteries adapter)
  • Weight: 0.3 kg
  • Dimensions: 130 x 65 x 43 mm
  • Temperature Range: -10 °C --- 40 °C
  • Tripod or handle connection: R''1/4''
  • Spectral Sensivity: 350 - 1700 nm
  • Field of View: 25 °
  • Magnification: 1.8x
