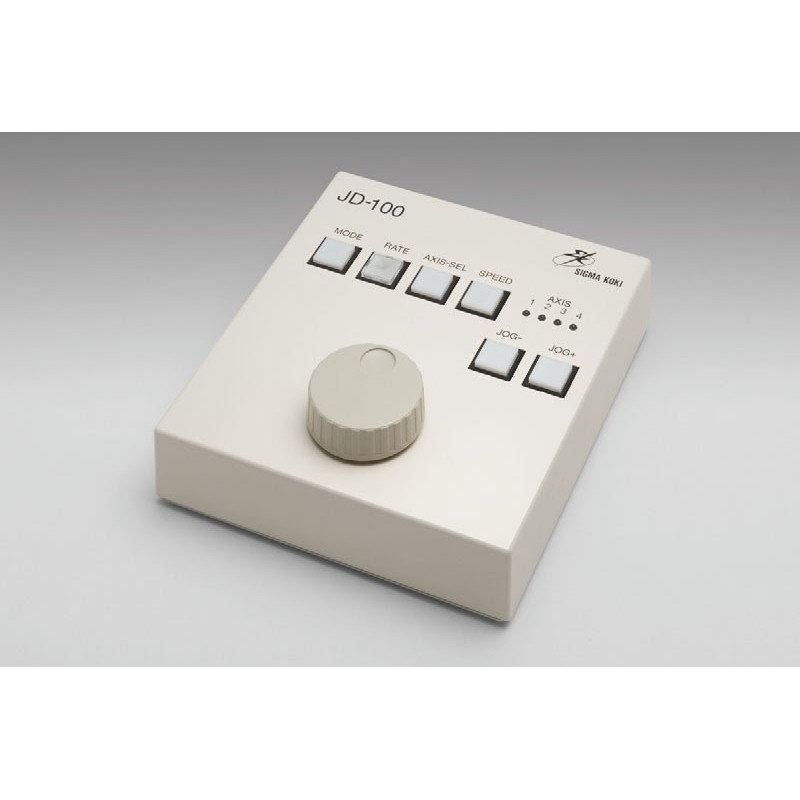

Jog Dial

Description

• Cable:

• • MDR14-CA-2.5 (purchase separately)

• Display:

• • None

• External Dimensions [WxHxDmm]:

• • 130x36x145

• Weight [kg]:

• • 0.6

• LCD Panel:

• • None

• MODE Button:

• • Switches between SHOT-302GS/SHOT-304GS modes.

• RATE Button:

• • Changes the travel per click (Normal RATE: 1 pulse/click, High RATE: 5 pulses/click)

• AXIS-SEL Button:

• • Switches the motion axes (1 to 4 axes) using the jog dial.

• SPEED Button:

• • Switches the travel speed in 4 steps set wit the controller.

• JOG+/- Button:

• Operates in +/- direction while the respective button being pressed.
