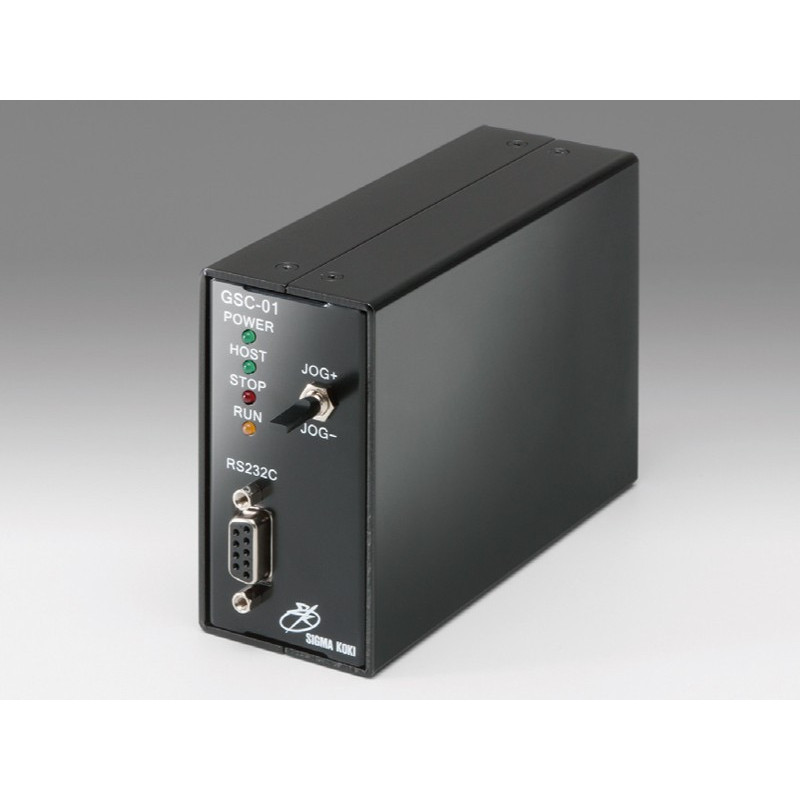

Single axis Stage Controller

Description

• Controller Function:

• • Yes

• Number of Control Axes:

• • 1

• Stored Program Control:

• • No

• Feedback Control:

• • No

• Circular Interpolation Control:

• • No

• Linear Interpolation Control:

• • No

• Driver Function:

• • Standard

• Micro-step (Max. Division):

• • 2

• Driving Current (A/phase):

• • 0.2-0.8

• Power Voltage:

• • DC24V2A

• Power Consumption:

• • 48VA

• Operating Temperature:

• • 5-40°C

• Storage Temperature:

• • No

• Ambient Humidity:

• • 20-80%RH

• External Dimensions (WxHxDmm):

• • 47x125x90

• Weight (kg):

• • 0.4

• GP-IB:

• • No

• RS232C:

• • Yes

• USB:

• • No

• Ethernet:

• • No

• Coordinate Indication Range:

• • No

• Max. Travel to Set:

• • 16,777,215

• Max. Driving Speed (pps):

• • 20000

• Min. Driving Speed (pps):

• • 100

• Acceleration/Deceleration Time (ms):

• • 0-1,000

• Origin Sensor:

• • No

• Proximity Sensor:

• • No

• CW (+) Limit:

• • Yes

• CCW (-) Limit:

• • Yes

• General Purpose Input:

• • 4 points

• General Purpose Output:

• • 4 points

• Control Input:

• • 3 points

• Control Output:

• • No

• Trigger Output:

• • No

• Machine Origin Return:

• • Yes

• Theoretical Origin Setting:

• • Yes

• Relative Position Drive:

• • Yes

• Absolut Position Drive:

• • Yes

• Jog Operation:

• • Yes

• Position Appointment:

• • No

• Circular Interpolation Control:

• • No

• Liner Interpolation Control:

• • No

• Drive:

• • Yes

• Deceleration Stop:

• • Yes

• Emergency Stop:

• • Yes

• Speed Setting:

• • Yes

• Motor Free/Hold:

• • Yes

• Port Output:

• • Yes

• Origin Offset Setting:

• • Yes

• Jog Operation Speed Setting:

• Yes
