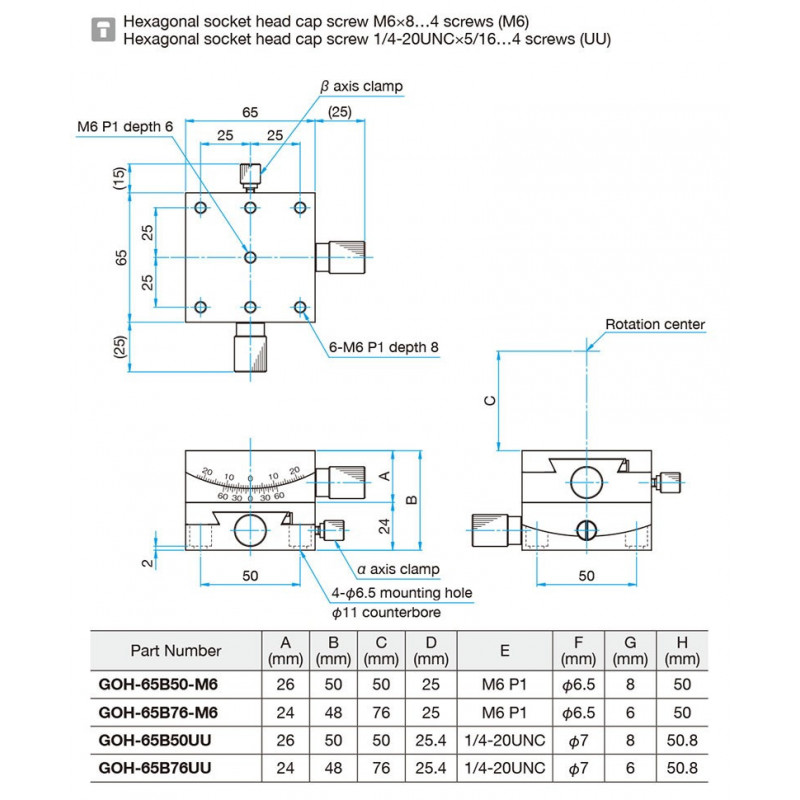

OSE-GOH-65B: Goniometers, 65 x 65 mm

Reference number: OSE-GOH-65B50-M6

Modèle

Version

Hauteur du centre de rotation en mm

Modèle

Version

Hauteur du centre de rotation en mm

Besoin de plus d'informations ?
Contactez notre expert.

Notre équipe

Description

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 50±0.1
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 0.84
Travel per Knob Rotation Beta axis : about 1.16
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1.5
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 1.74

Downloads

OSE-GOH-60A_GOH-60B.pdf

OSE-GOH-65B50-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 76±0.1
Angle Range(Upper) Beta axis [ ° ]: ±15
Angle Range (Lower) Alpha axis [ ° ] : ±10
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 0.65
Travel per Knob Rotation Beta axis : about 0.84
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1.5
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 1.72

Downloads

OSE-GOH-15A_GOH-25A-25B.pdf

OSE-GOH-65B76-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 50±0.1
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 0.84
Travel per Knob Rotation Beta axis : about 1.16
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1.5
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 1.74

Downloads

OSE-GOH-60A_GOH-60B.pdf

OSE-GOH-65B50R-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 50±0.1
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 0.84
Travel per Knob Rotation Beta axis : about 1.16
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1.5
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 1.74

Downloads

OSE-GOH-60A_GOH-60B.pdf

OSE-GOH-65B50UU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 50±0.1
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 0.84
Travel per Knob Rotation Beta axis : about 1.16
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1.5
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 1.74

Downloads

OSE-GOH-60A_GOH-60B.pdf

OSE-GOH-65B50RUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 76±0.1
Angle Range(Upper) Beta axis [ ° ]: ±15
Angle Range (Lower) Alpha axis [ ° ] : ±10
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 0.65
Travel per Knob Rotation Beta axis : about 0.84
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1.5
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 1.72

Downloads

OSE-GOH-60A_GOH-60B.pdf

OSE-GOH-65B76R-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 76±0.1
Angle Range(Upper) Beta axis [ ° ]: ±15
Angle Range (Lower) Alpha axis [ ° ] : ±10
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 0.65
Travel per Knob Rotation Beta axis : about 0.84
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1.5
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 1.72

Downloads

OSE-GOH-60A_GOH-60B.pdf

OSE-GOH-65B76UU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 76±0.1
Angle Range(Upper) Beta axis [ ° ]: ±15
Angle Range (Lower) Alpha axis [ ° ] : ±10
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 0.65
Travel per Knob Rotation Beta axis : about 0.84
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1.5
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 1.72

Downloads

OSE-GOHS-40A_GOHS-40B.pdf

OSE-GOH-65B76RUU_STP.zip

ManualStages.zip

Actuators.pdf
