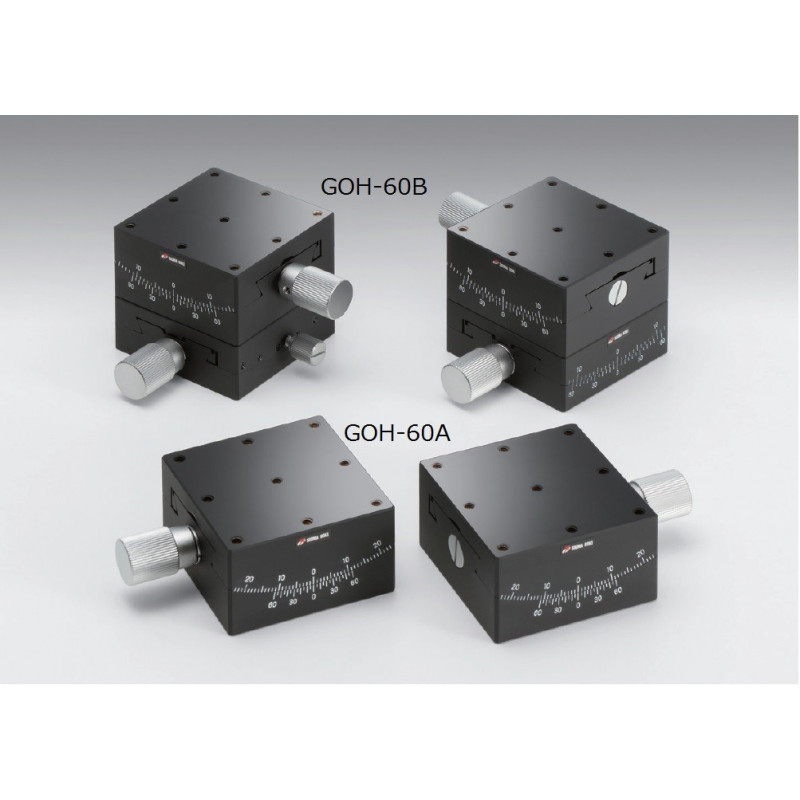

OSE-GOH-60A: Goniometers, 60 x 60 mm

Reference number: OSE-GOH-60A50

Modèle

Version

Hauteur du centre de rotation en mm

Modèle

Version

Hauteur du centre de rotation en mm

Besoin de plus d'informations ?
Contactez notre expert.

Notre équipe

Description

Type: Goniometers
Tabel Size [mm]: 60×60
Rotation Center Height [mm]: 50±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 1.03
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1.6
Max. Moment Capacity / Roll [Nm]: 2.2
Moment Stiffness / Roll [´´/Ncm]: 0.3
Parallelism [µm]: 50
Gewicht in kg: 1

Downloads

OSE-GOH-60A_GOH-60B.pdf

OSE-GOH-60A50_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 60×60
Rotation Center Height [mm]: 84±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 0.71
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1.6
Max. Moment Capacity / Roll [Nm]: 2.2
Moment Stiffness / Roll [´´/Ncm]: 0.3
Parallelism [µm]: 50
Gewicht in kg: 0.9

Downloads

OSE-GOH-60A_GOH-60B.pdf

OSE-GOH-60A84_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 60×60
Rotation Center Height [mm]: 115±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±10
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 0.58
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1.6
Max. Moment Capacity / Roll [Nm]: 2.2
Moment Stiffness / Roll [´´/Ncm]: 0.3
Parallelism [µm]: 50
Gewicht in kg: 0.85

Downloads

OSE-GOH-15A_GOH-25A-25B.pdf

OSE-GOH-60A115_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 60×60
Rotation Center Height [mm]: 50±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 1.03
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1.6
Max. Moment Capacity / Roll [Nm]: 2.2
Moment Stiffness / Roll [´´/Ncm]: 0.3
Parallelism [µm]: 50
Gewicht in kg: 1

Downloads

OSE-GOH-60A_GOH-60B.pdf

OSE-GOH-60A50R_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 60×60
Rotation Center Height [mm]: 84±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 0.71
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1.6
Max. Moment Capacity / Roll [Nm]: 2.2
Moment Stiffness / Roll [´´/Ncm]: 0.3
Parallelism [µm]: 50
Gewicht in kg: 0.9

Downloads

OSE-GOH-60A_GOH-60B.pdf

OSE-GOH-60A84R_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 60×60
Rotation Center Height [mm]: 115±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±10
Vernier Readable Resolution: 5"
Travel per Knob Rotation Alpha axis : about 0.58
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 1.6
Max. Moment Capacity / Roll [Nm]: 2.2
Moment Stiffness / Roll [´´/Ncm]: 0.3
Parallelism [µm]: 50
Gewicht in kg: 0.85

Downloads

OSE-GOH-15A_GOH-25A-25B.pdf

OSE-GOH-60A115R_STP.zip

ManualStages.zip

Actuators.pdf
