Optique et revêtements optiques

Optique et revêtements optiques

Optique et revêtements optiques

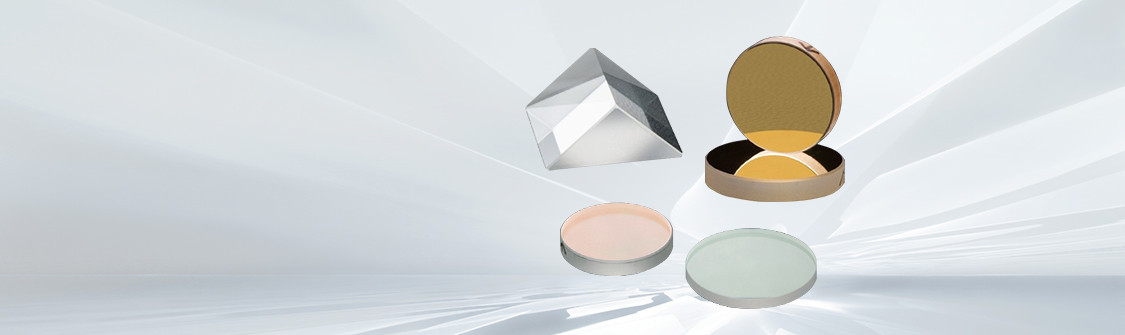

Le revêtement optique consiste en une combinaison de couches minces. Celles-ci produisent des effets d'interférence qui sont utilisés pour améliorer les caractéristiques de transmission ou de réflexion d'un système. Le comportement d'un revêtement optique dépend du nombre de couches lambda/4, de l'épaisseur des différentes couches et des différences entre les indices de réfraction des différentes couches. Les revêtements les plus courants pour l'optique de précision sont les revêtements antireflets (AR), les revêtements hautement réfléchissants (HR), les revêtements séparateurs de faisceau et les revêtements filtres.



Hybrid Cube Half Mirrors

OSE-HBCH

Low polarization cube half mirrors can be used for broadband visible and infrared light. The hybrid coating is a special combination of metallic and dielectric multilayers resulting in a low polarizing and broadband coating.
Chromium Cube Half Mirrors

OSE-CSCH

Chromium cube half mirrors consist of two rectangular prisms. One of them is coated with chromium on the hypotenuse surface.
Dielectric Cube Half Mirrors

OSE-CSMH

Dielectric cube half mirrors consist of two right-angled prisms. One of them is coated with a dielectric multilayer partial reflection layer on the hypotenuse surface.
Laser Line Plate Half Mirrors

OSE-PSMH-LL

Laser line plate mirrors are plate beamsplitters optically coated on the front side of optical parallels or wedge-shaped substrates with a dielectric multilayer coating.
Broadband Dielectric Half Mirrors

OSE-PSMH

These half mirrors have 3 types of ultra-wideband optics for ranges from visibile to NIR, which are used for optical communication applications.
Thin Plate Beamsplitter

OSE-MPSMH

These thin beam splitters can be inserted into an optical light path without beam shift or chromatic dispersion for any light transmission application.
Chromium Plate Half Mirrors

OSE-PSCH

Chrome plate half mirrors are plate beamsplitters coated with chrome on the front side of optical parallels or wedge-shaped substrates.
Dielectric Cube Beamsplitters, 1:2

OSE-CSM33

Cube beamsplitter with dielectric multilayer coating on the hypotenuse face of a 45° angle prism. Reflectance : Transmittance: 1:2
Dielectric Cube Beamsplitters, 1:3

OSE-CSM25

Cube beamsplitter with dielectric multilayer coating on the hypotenuse face of a 45° right-angle prism. Reflectance : Transmittance: 1:3
Dielectric Plate Beamsplitters, 1:3

OSE-PSM25

Plate-shaped beamsplitters are dielectric multilayer coatings on a parallel plate or wedge-shaped substrate. Reflectance : Transmittance: 1:3
