Optical Baseplates, OSE-OBC

Reference number: OSE-OBC-3045

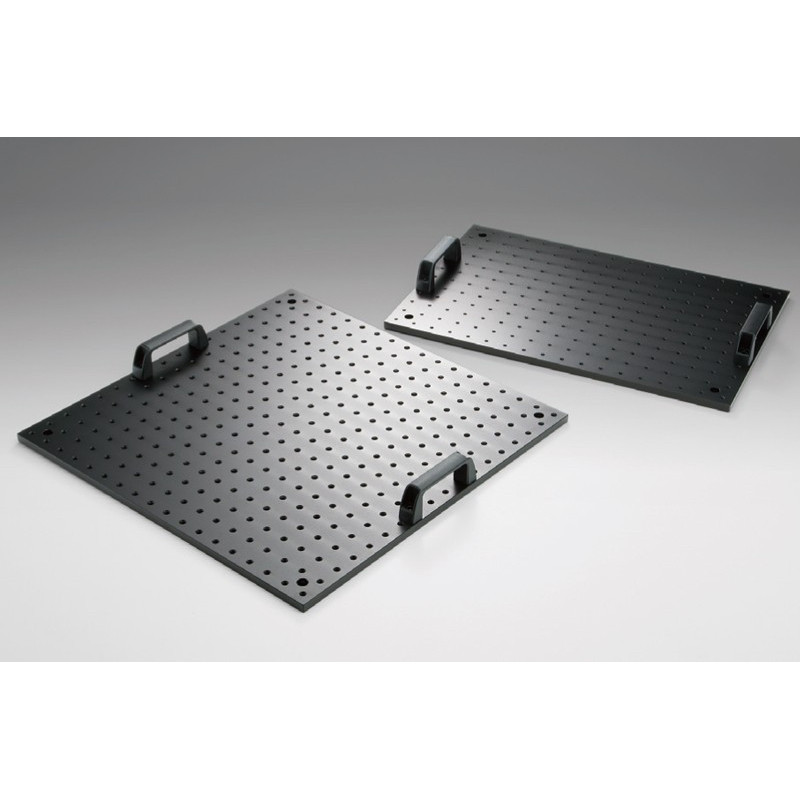

Base plates made of black anodized aluminum.

Headcap Screw

Dimensions in mm

Headcap Screw

Dimensions in mm

Need more info?
Contact our expert.

Our Team

Description

Type: Optical Baseplates
Size [mm]: 300x450
A [mm]: 425
B [mm]: 275
C [mm]: 25
D [mm]: 250
E [mm]: 400
F: M4
Weight [kg]: 3.6
Primary material: Aluminium
Finish: Black Anodized
