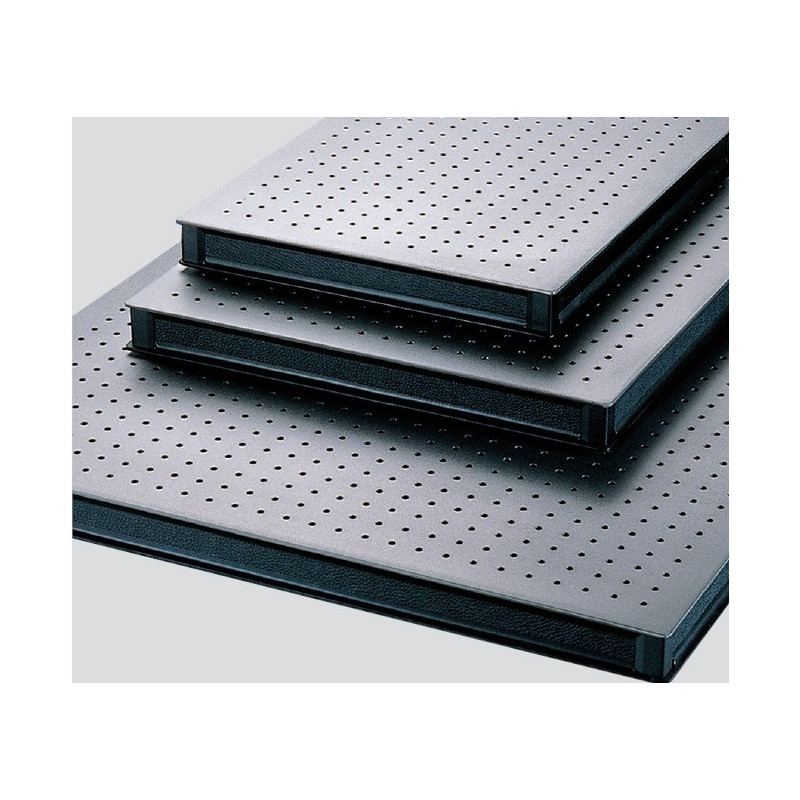

Tabletop Optical Breadbord

Reference number: OSE-OSDVIO-B-0504M-50t

Top plates are made of stainless steel (SUS430), base plates are made of hot rolled steel (SPHC).

Dimensions in mm

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Vibration isolated systems

OSE-OSDVIA

€8,871.50
HP Vibration Isolation Tables

OSE-OSDVIO

€3,229.80
Steel Honeycomb Optical Tables

OSE-OSDVIO-R

€2,571.50
Desk Style Vibration Isolation Systems, C-Series

OSE-OSDVID-C

€4,406.90
Desk Style Vibration Isolation Systems, L-Series

OSE-OSDVID-L

€3,540.60

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 500x400
T [mm] : 50
Weight [kg]: 17

Downloads

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 600x500
T [mm] : 50
Weight [kg]: 26

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 600x600
T [mm] : 50
Weight [kg]: 31

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 750x750
T [mm] : 50
Weight [kg]: 49

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 800x600
T [mm] : 50
Weight [kg]: 42

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 900x600
T [mm] : 50
Weight [kg]: 47

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 900x750
T [mm] : 50
Weight [kg]: 59

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 900x900
T [mm] : 50
Weight [kg]: 70

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,000x600
T [mm] : 50
Weight [kg]: 52

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,000x750
T [mm] : 50
Weight [kg]: 65

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,000x900
T [mm] : 50
Weight [kg]: 78

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,000x1,000
T [mm] : 50
Weight [kg]: 87

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,200x600
T [mm] : 50
Weight [kg]: 63

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,200x750
T [mm] : 50
Weight [kg]: 78

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,200x900
T [mm] : 50
Weight [kg]: 94

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,200x1,000
T [mm] : 50
Weight [kg]: 104

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,200x1,200
T [mm] : 50
Weight [kg]: 125

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,500x600
T [mm] : 50
Weight [kg]: 78

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,500x750
T [mm] : 50
Weight [kg]: 98

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,500x900
T [mm] : 50
Weight [kg]: 117

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,500x1,000
T [mm] : 50
Weight [kg]: 131

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,500x1,200
T [mm] : 50
Weight [kg]: 157

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,800x600
T [mm] : 50
Weight [kg]: 94

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,800x750
T [mm] : 50
Weight [kg]: 117

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,800x900
T [mm] : 50
Weight [kg]: 141

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,800x1,200
T [mm] : 50
Weight [kg]: 188

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 2,000x1,000
T [mm] : 50
Weight [kg]: 174

Downloads

OSE-OSDVIO-B.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Breadboards
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material: Upper plate: 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish Lateral surface: 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish Lower plate: 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (Leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 2,000x1,200
T [mm] : 50
Weight [kg]: 209
