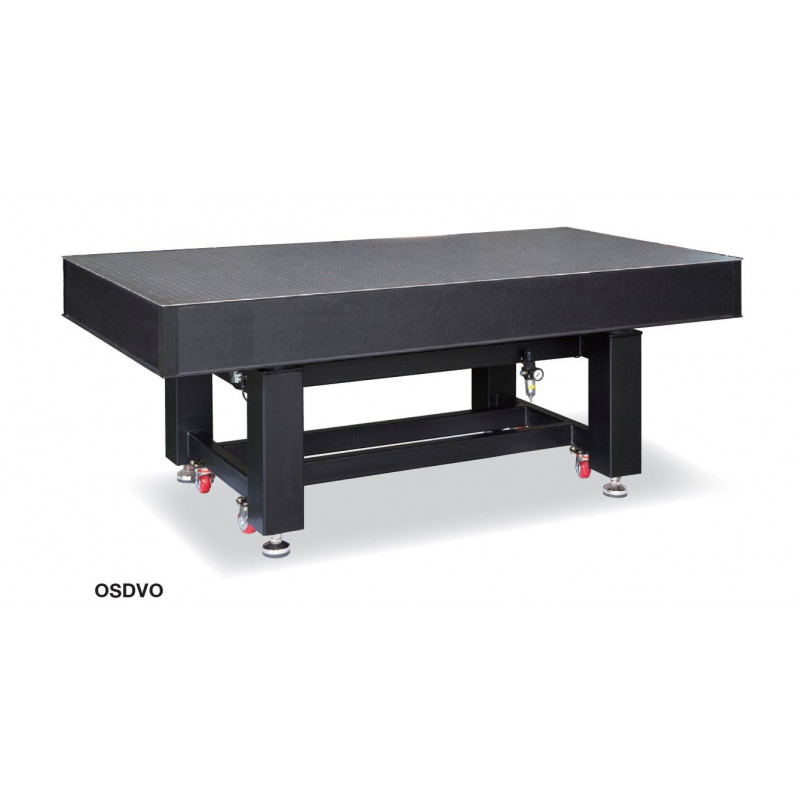

HP Vibration Isolation Tables

Reference number: OSE-OSDVIO-I-0909M-100t(800H)

The high performance vibration isolation system uses independent isolation mechanisms for the horizontal and vertical axes.

T in mm

Dimensions in mm

T in mm

Dimensions in mm

Need more info?
Contact our expert.

Our Team

Description

Type: Optical Tables with substructure
Natural Frequency (Vertical Direction): about 1.2 - 1.5Hz
Natural Frequency (Horizontal Direction): about 1.5 - 1.7Hz
Vibration Isolation: Air Spring Isolations
Damping: Air Damping by Orifice
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material (Upper plate): 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish
Bench Material (Lateral Side): 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish
Bench Material (Lower Plate): 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 900x900
H [mm] : 800
T [mm] : 100
Load capacity [kg] : 300
Weight [kg]: 154

Downloads

Type: Optical Tables with substructure
Natural Frequency (Vertical Direction): about 1.2 - 1.5Hz
Natural Frequency (Horizontal Direction): about 1.5 - 1.7Hz
Vibration Isolation: Air Spring Isolations
Damping: Air Damping by Orifice
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material (Upper plate): 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish
Bench Material (Lateral Side): 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish
Bench Material (Lower Plate): 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,000x700
H [mm] : 800
T [mm] : 100
Load capacity [kg] : 310
Weight [kg]: 140

Downloads

OSE-OSDVIO.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Tables with substructure
Natural Frequency (Vertical Direction): about 1.2 - 1.5Hz
Natural Frequency (Horizontal Direction): about 1.5 - 1.7Hz
Vibration Isolation: Air Spring Isolations
Damping: Air Damping by Orifice
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material (Upper plate): 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish
Bench Material (Lateral Side): 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish
Bench Material (Lower Plate): 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,200x600
H [mm] : 800
T [mm] : 100
Load capacity [kg] : 310
Weight [kg]: 141

Downloads

OSE-OSDVIO.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Tables with substructure
Natural Frequency (Vertical Direction): about 1.2 - 1.5Hz
Natural Frequency (Horizontal Direction): about 1.5 - 1.7Hz
Vibration Isolation: Air Spring Isolations
Damping: Air Damping by Orifice
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material (Upper plate): 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish
Bench Material (Lateral Side): 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish
Bench Material (Lower Plate): 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,200x700
H [mm] : 800
T [mm] : 100
Load capacity [kg] : 290
Weight [kg]: 159

Downloads

OSE-OSDVIO.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Tables with substructure
Natural Frequency (Vertical Direction): about 1.2 - 1.5Hz
Natural Frequency (Horizontal Direction): about 1.5 - 1.7Hz
Vibration Isolation: Air Spring Isolations
Damping: Air Damping by Orifice
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material (Upper plate): 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish
Bench Material (Lateral Side): 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish
Bench Material (Lower Plate): 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,200x900
H [mm] : 800
T [mm] : 100
Load capacity [kg] : 260
Weight [kg]: 190

Downloads

OSE-OSDVIO.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Tables with substructure
Natural Frequency (Vertical Direction): about 1.2 - 1.5Hz
Natural Frequency (Horizontal Direction): about 1.5 - 1.7Hz
Vibration Isolation: Air Spring Isolations
Damping: Air Damping by Orifice
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material (Upper plate): 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish
Bench Material (Lateral Side): 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish
Bench Material (Lower Plate): 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,500x600
H [mm] : 800
T [mm] : 100
Load capacity [kg] : 390
Weight [kg]: 187

Downloads

OSE-OSDVIO.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Tables with substructure
Natural Frequency (Vertical Direction): about 1.2 - 1.5Hz
Natural Frequency (Horizontal Direction): about 1.5 - 1.7Hz
Vibration Isolation: Air Spring Isolations
Damping: Air Damping by Orifice
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material (Upper plate): 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish
Bench Material (Lateral Side): 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish
Bench Material (Lower Plate): 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,500x700
H [mm] : 800
T [mm] : 100
Load capacity [kg] : 370
Weight [kg]: 207

Downloads

OSE-OSDVIO.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Tables with substructure
Natural Frequency (Vertical Direction): about 1.2 - 1.5Hz
Natural Frequency (Horizontal Direction): about 1.5 - 1.7Hz
Vibration Isolation: Air Spring Isolations
Damping: Air Damping by Orifice
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material (Upper plate): 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish
Bench Material (Lateral Side): 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish
Bench Material (Lower Plate): 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,500x900
H [mm] : 800
T [mm] : 200
Load capacity [kg] : 310
Weight [kg]: 269

Downloads

OSE-OSDVIO.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Tables with substructure
Natural Frequency (Vertical Direction): about 1.2 - 1.5Hz
Natural Frequency (Horizontal Direction): about 1.5 - 1.7Hz
Vibration Isolation: Air Spring Isolations
Damping: Air Damping by Orifice
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material (Upper plate): 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish
Bench Material (Lateral Side): 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish
Bench Material (Lower Plate): 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,500x1,000
H [mm] : 800
T [mm] : 200
Load capacity [kg] : 290
Weight [kg]: 284

Downloads

OSE-OSDVIO.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Tables with substructure
Natural Frequency (Vertical Direction): about 1.2 - 1.5Hz
Natural Frequency (Horizontal Direction): about 1.5 - 1.7Hz
Vibration Isolation: Air Spring Isolations
Damping: Air Damping by Orifice
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material (Upper plate): 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish
Bench Material (Lateral Side): 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish
Bench Material (Lower Plate): 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,500x1,200
H [mm] : 800
T [mm] : 200
Load capacity [kg] : 240
Weight [kg]: 329

Downloads

OSE-OSDVIO.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Tables with substructure
Natural Frequency (Vertical Direction): about 1.2 - 1.5Hz
Natural Frequency (Horizontal Direction): about 1.5 - 1.7Hz
Vibration Isolation: Air Spring Isolations
Damping: Air Damping by Orifice
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material (Upper plate): 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish
Bench Material (Lateral Side): 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish
Bench Material (Lower Plate): 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,500x1,500
H [mm] : 800
T [mm] : 200
Load capacity [kg] : 180
Weight [kg]: 396

Downloads

OSE-OSDVIO.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Tables with substructure
Natural Frequency (Vertical Direction): about 1.2 - 1.5Hz
Natural Frequency (Horizontal Direction): about 1.5 - 1.7Hz
Vibration Isolation: Air Spring Isolations
Damping: Air Damping by Orifice
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material (Upper plate): 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish
Bench Material (Lateral Side): 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish
Bench Material (Lower Plate): 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,800x600
H [mm] : 800
T [mm] : 200
Load capacity [kg] : 340
Weight [kg]: 234

Downloads

OSE-OSDVIO.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Tables with substructure
Natural Frequency (Vertical Direction): about 1.2 - 1.5Hz
Natural Frequency (Horizontal Direction): about 1.5 - 1.7Hz
Vibration Isolation: Air Spring Isolations
Damping: Air Damping by Orifice
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material (Upper plate): 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish
Bench Material (Lateral Side): 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish
Bench Material (Lower Plate): 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,800x700
H [mm] : 800
T [mm] : 200
Load capacity [kg] : 320
Weight [kg]: 254

Downloads

OSE-OSDVIO.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Tables with substructure
Natural Frequency (Vertical Direction): about 1.2 - 1.5Hz
Natural Frequency (Horizontal Direction): about 1.5 - 1.7Hz
Vibration Isolation: Air Spring Isolations
Damping: Air Damping by Orifice
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material (Upper plate): 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish
Bench Material (Lateral Side): 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish
Bench Material (Lower Plate): 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,800x900
H [mm] : 800
T [mm] : 200
Load capacity [kg] : 270
Weight [kg]: 306

Downloads

OSE-OSDVIO.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Tables with substructure
Natural Frequency (Vertical Direction): about 1.2 - 1.5Hz
Natural Frequency (Horizontal Direction): about 1.5 - 1.7Hz
Vibration Isolation: Air Spring Isolations
Damping: Air Damping by Orifice
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material (Upper plate): 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish
Bench Material (Lateral Side): 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish
Bench Material (Lower Plate): 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,800x1,200
H [mm] : 800
T [mm] : 200
Load capacity [kg] : 190
Weight [kg]: 387

Downloads

OSE-OSDVIO.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Tables with substructure
Natural Frequency (Vertical Direction): about 1.2 - 1.5Hz
Natural Frequency (Horizontal Direction): about 1.5 - 1.7Hz
Vibration Isolation: Air Spring Isolations
Damping: Air Damping by Orifice
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material (Upper plate): 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish
Bench Material (Lateral Side): 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish
Bench Material (Lower Plate): 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 1,800x1,500
H [mm] : 800
T [mm] : 200
Load capacity [kg] : 420
Weight [kg]: 468

Downloads

OSE-OSDVIO.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Tables with substructure
Natural Frequency (Vertical Direction): about 1.2 - 1.5Hz
Natural Frequency (Horizontal Direction): about 1.5 - 1.7Hz
Vibration Isolation: Air Spring Isolations
Damping: Air Damping by Orifice
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material (Upper plate): 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish
Bench Material (Lateral Side): 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish
Bench Material (Lower Plate): 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 2,000x1,000
H [mm] : 800
T [mm] : 200
Load capacity [kg] : 520
Weight [kg]: 362

Downloads

OSE-OSDVIO.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Tables with substructure
Natural Frequency (Vertical Direction): about 1.2 - 1.5Hz
Natural Frequency (Horizontal Direction): about 1.5 - 1.7Hz
Vibration Isolation: Air Spring Isolations
Damping: Air Damping by Orifice
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material (Upper plate): 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish
Bench Material (Lateral Side): 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish
Bench Material (Lower Plate): 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 2,000x1,200
H [mm] : 800
T [mm] : 200
Load capacity [kg] : 460
Weight [kg]: 421

Downloads

OSE-OSDVIO.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Tables with substructure
Natural Frequency (Vertical Direction): about 1.2 - 1.5Hz
Natural Frequency (Horizontal Direction): about 1.5 - 1.7Hz
Vibration Isolation: Air Spring Isolations
Damping: Air Damping by Orifice
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material (Upper plate): 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish
Bench Material (Lateral Side): 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish
Bench Material (Lower Plate): 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 2,000x1,500
H [mm] : 800
T [mm] : 200
Load capacity [kg] : 380
Weight [kg]: 510

Downloads

OSE-OSDVIO.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Tables with substructure
Natural Frequency (Vertical Direction): about 1.2 - 1.5Hz
Natural Frequency (Horizontal Direction): about 1.5 - 1.7Hz
Vibration Isolation: Air Spring Isolations
Damping: Air Damping by Orifice
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material (Upper plate): 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish
Bench Material (Lateral Side): 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish
Bench Material (Lower Plate): 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 2,400x900
H [mm] : 800
T [mm] : 300
Load capacity [kg] : 440
Weight [kg]: 453

Downloads

OSE-OSDVIO.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Tables with substructure
Natural Frequency (Vertical Direction): about 1.2 - 1.5Hz
Natural Frequency (Horizontal Direction): about 1.5 - 1.7Hz
Vibration Isolation: Air Spring Isolations
Damping: Air Damping by Orifice
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material (Upper plate): 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish
Bench Material (Lateral Side): 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish
Bench Material (Lower Plate): 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 2,400x1,200
H [mm] : 800
T [mm] : 300
Load capacity [kg] : 320
Weight [kg]: 578

Downloads

OSE-OSDVIO.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Tables with substructure
Natural Frequency (Vertical Direction): about 1.2 - 1.5Hz
Natural Frequency (Horizontal Direction): about 1.5 - 1.7Hz
Vibration Isolation: Air Spring Isolations
Damping: Air Damping by Orifice
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material (Upper plate): 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish
Bench Material (Lateral Side): 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish
Bench Material (Lower Plate): 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 2,400x1,500
H [mm] : 800
T [mm] : 300
Load capacity [kg] : 200
Weight [kg]: 701

Downloads

OSE-OSDVIO.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Tables with substructure
Natural Frequency (Vertical Direction): about 1.2 - 1.5Hz
Natural Frequency (Horizontal Direction): about 1.5 - 1.7Hz
Vibration Isolation: Air Spring Isolations
Damping: Air Damping by Orifice
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material (Upper plate): 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish
Bench Material (Lateral Side): 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish
Bench Material (Lower Plate): 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 3,000x900
H [mm] : 800
T [mm] : 300
Load capacity [kg] : 350
Weight [kg]: 585

Downloads

OSE-OSDVIO.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Tables with substructure
Natural Frequency (Vertical Direction): about 1.2 - 1.5Hz
Natural Frequency (Horizontal Direction): about 1.5 - 1.7Hz
Vibration Isolation: Air Spring Isolations
Damping: Air Damping by Orifice
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material (Upper plate): 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish
Bench Material (Lateral Side): 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish
Bench Material (Lower Plate): 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 3,000x1,000
H [mm] : 800
T [mm] : 300
Load capacity [kg] : 300
Weight [kg]: 634

Downloads

OSE-OSDVIO.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Tables with substructure
Natural Frequency (Vertical Direction): about 1.2 - 1.5Hz
Natural Frequency (Horizontal Direction): about 1.5 - 1.7Hz
Vibration Isolation: Air Spring Isolations
Damping: Air Damping by Orifice
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material (Upper plate): 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish
Bench Material (Lateral Side): 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish
Bench Material (Lower Plate): 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 3,000x1,200
H [mm] : 800
T [mm] : 300
Load capacity [kg] : 200
Weight [kg]: 739

Downloads

OSE-OSDVIO.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Tables with substructure
Natural Frequency (Vertical Direction): about 1.2 - 1.5Hz
Natural Frequency (Horizontal Direction): about 1.5 - 1.7Hz
Vibration Isolation: Air Spring Isolations
Damping: Air Damping by Orifice
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material (Upper plate): 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish
Bench Material (Lateral Side): 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish
Bench Material (Lower Plate): 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 3,000x1,500
H [mm] : 800
T [mm] : 300
Load capacity [kg] : 450
Weight [kg]: 896

Downloads

OSE-OSDVIO.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Tables with substructure
Natural Frequency (Vertical Direction): about 1.2 - 1.5Hz
Natural Frequency (Horizontal Direction): about 1.5 - 1.7Hz
Vibration Isolation: Air Spring Isolations
Damping: Air Damping by Orifice
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material (Upper plate): 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish
Bench Material (Lateral Side): 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish
Bench Material (Lower Plate): 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 3,600x1,200
H [mm] : 800
T [mm] : 300
Load capacity [kg] : 480
Weight [kg]: 864

Downloads

OSE-OSDVIO.pdf

DOWNLOAD

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Optical Tables with substructure
Natural Frequency (Vertical Direction): about 1.2 - 1.5Hz
Natural Frequency (Horizontal Direction): about 1.5 - 1.7Hz
Vibration Isolation: Air Spring Isolations
Damping: Air Damping by Orifice
Honeycomb Material inside Bench: Plated steel honeycomb (0.25m foil, 3.2cm2 cell size)
Bench Material (Upper plate): 4.0mm thickness 430 series ferro magnetic stainless steel plate,smooth sanded finish
Bench Material (Lateral Side): 2.0mm thickness carbon steel plate with damped wood composite, vinyl convert finish
Bench Material (Lower Plate): 4.0mm thickness carbon steel plate epoxy painted finish
Bench Top Surface: M6 tapped holes on 25x25mm matrix over the entire surface (leaving 37.5mm around the edges)
Bench Top Surface Finish: Unpainted (smooth sanded finish)
Surface Flatness: ±0.1mm over 600mm square
Hole/Core Sealing: Easy clean cylindrical cup (25mm deep)
A x B [mm] : 3,600x1,500
H [mm] : 800
T [mm] : 300
Load capacity [kg] : 309
Weight [kg]: 1051
