Vibration isolated systems

Reference number: OSE-OSDVIA-T45

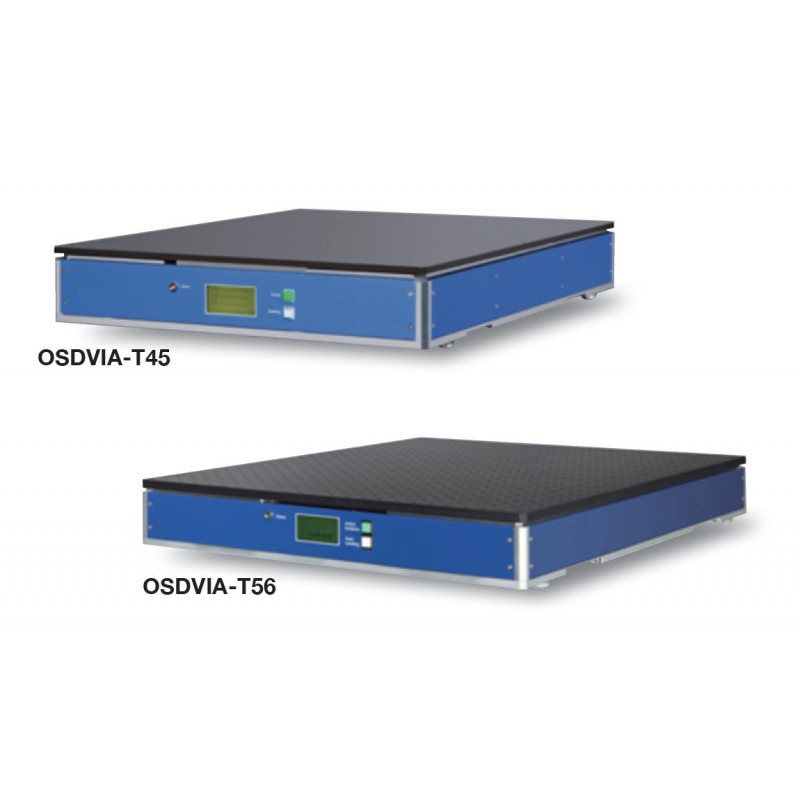

The OSE-OSDVIA-T series is a powerful active vibration isolation system. Its automatic leveling/locking systems and LCD display make it very user-friendly.

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

HP Vibration Isolation Tables

OSE-OSDVIO

€3,229.80
Steel Honeycomb Optical Tables

OSE-OSDVIO-R

€2,571.50
Desk Style Vibration Isolation Systems, C-Series

OSE-OSDVID-C

€4,406.90
Desk Style Vibration Isolation Systems, L-Series

OSE-OSDVID-L

€3,540.60
Desktop Vibration Isolation Systems

OSE-OSDVIT

€10,003.00

Type: Vibration Isolation Systems
Dimensions [mm]: (W)420 x (D)500 x (H)93
Max. Load Capacity [kg]: 10 - 100
Weight [kg]: 25
Actuator: Using Electro-Magnetic Force
Controlled degrees of Freedom: 6
Isolation Performance: -35dB - -40dB/10Hz
Settling Time: <0.5sec
Control Force: Vertical >7N, Horizontal >3N
Input Voltage [V]: AC85 - 264 / 50 - 60Hz
Power Consumption [W]: < 36
Temperature [°C]: 5-50
Humidity [%]: 20 - 90
Top plate: Solid Aluminum / M6 mounting holes
System Configuration: Controller and vibration isolator unit integrated type
Active Control Range: about 0.5Hz - 100Hz
Initial Horizontal Adjustment: Automatic adjustment
Lock when moving: Automatic locking mechanism
Confirmation of Vibration Isolation Status: Displayed on the front monitor

Downloads

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Vibration Isolation Systems
Dimensions [mm]: (W)500 x (D)600 x (H)93
Max. Load Capacity [kg]: 10 - 100
Weight [kg]: 32
Actuator: Using Electro-Magnetic Force
Controlled degrees of Freedom: 6
Isolation Performance: -35dB - -40dB/10Hz
Settling Time: <0.5sec
Control Force: Vertical >7N, Horizontal >3N
Input Voltage [V]: AC85 - 264 / 50 - 60Hz
Power Consumption [W]: < 36
Temperature [°C]: 5-50
Humidity [%]: 20 - 90
Top plate: Solid Aluminum / M6 mounting holes
System Configuration: Controller and vibration isolator unit integrated type
Active Control Range: about 0.5Hz - 100Hz
Initial Horizontal Adjustment: Automatic adjustment
Lock when moving: Automatic locking mechanism
Confirmation of Vibration Isolation Status: Displayed on the front monitor

Downloads

Bases_small.zip

DOWNLOAD

OSE_Optische_Tische_1812.pdf

DOWNLOAD

Type: Vibration Isolation Systems
Dimensions [mm]: (W)600 x (D)700 x (H)93
Max. Load Capacity [kg]: 10 - 100
Weight [kg]: 40
Actuator: Using Electro-Magnetic Force
Controlled degrees of Freedom: 6
Isolation Performance: -35dB - -40dB/10Hz
Settling Time: <0.5sec
Control Force: Vertical >7N, Horizontal >3N
Input Voltage [V]: AC85 - 264 / 50 - 60Hz
Power Consumption [W]: < 36
Temperature [°C]: 5-50
Humidity [%]: 20 - 90
Top plate: Solid Aluminum / M6 mounting holes
System Configuration: Controller and vibration isolator unit integrated type
Active Control Range: about 0.5Hz - 100Hz
Initial Horizontal Adjustment: Automatic adjustment
Lock when moving: Automatic locking mechanism
Confirmation of Vibration Isolation Status: Displayed on the front monitor
