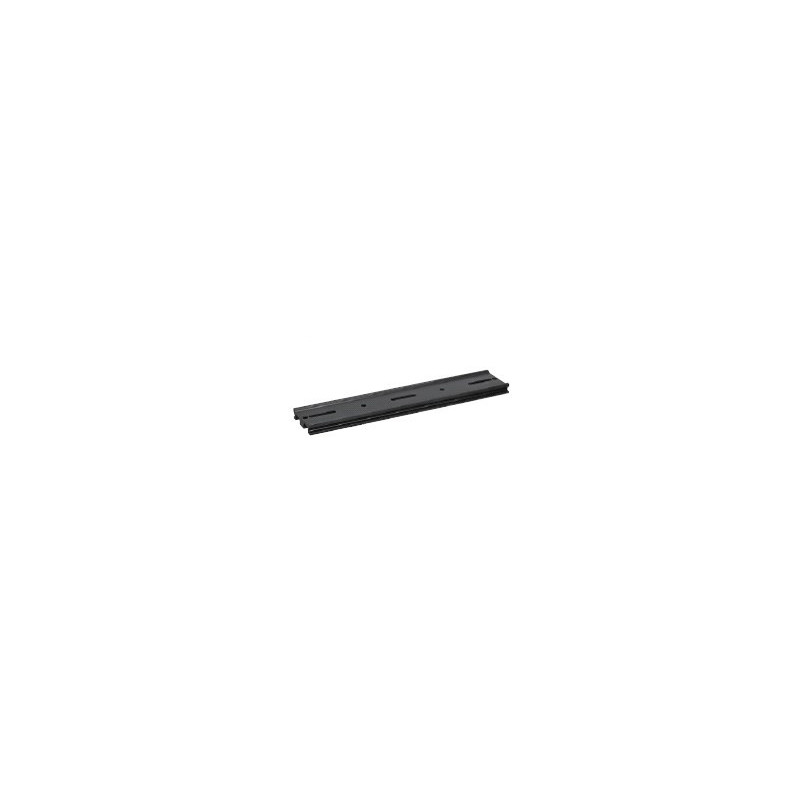

Large metric low profile optical rails

Large metric low profile optical rails

Reference number: OSE-OBT-500LH

A in mm (Attribute) (NEW)

Version

A in mm (Attribute) (NEW)

Version

Need more info?
Contact our expert.

Our Team

I am interested in:

an offer

information material

a call and advice

*Required field

reCAPTCHA

Write your question

Email address^*

Message^*

^* Required fields

Question sent

Your question has been sent!

Your question cannot be sent!

Description

Type: Metric
A [mm]: 500
B [mm]: 72.2
C [mm] (Metric): 100x4
Weight [kg]: 1.7
Primary material: Aluminium
Finish: Black Anodized

Downloads

OSE-OBT-500LH_STP.zip

OSE-OBA-LH.pdf

Bases_small.zip

Type: Metric
A [mm]: 1000
B [mm]: 55.5
C [mm] (Metric): 100x8
Weight [kg]: 3.5
Primary material: Aluminium
Finish: Black Anodized

Downloads

OSE-OBT-1000LH_STP.zip

OSE-OBA-LH.pdf

Bases_small.zip

Type: Metric
A [mm]: 1500
B [mm]: 38.8
C [mm] (Metric): 100x14
Weight [kg]: 5.2
Primary material: Aluminium
Finish: Black Anodized

Downloads

OSE-OBT-1500LH_STP.zip

OSE-OBA-LH.pdf

Bases_small.zip

Type: Metric
A [mm]: 2000
B [mm]: 111
C [mm] (Metric): 100x18
Weight [kg]: 7
Primary material: Aluminium
Finish: Black Anodized

Downloads

OSE-OBT-2000LH_STP.zip

OSE-OBA-LH.pdf

Bases_small.zip

Type: Inch
A [mm]: 500
B [mm]: 72.2
C [mm] (Inch): 177.8x2
Weight [kg]: 1.7
Primary material: Aluminium
Finish: Black Anodized

Downloads

OSE-OBT-500LUU_STP.zip

OSE-OBA-LH.pdf

Bases_small.zip

Type: Inch
A [mm]: 1000
B [mm]: 55.5
C [mm] (Inch): 177.8x5
Weight [kg]: 3.5
Primary material: Aluminium
Finish: Black Anodized

Downloads

OSE-OBT-1000LUU_STP.zip

OSE-OBA-LH.pdf

Bases_small.zip

Type: Inch
A [mm]: 1500
B [mm]: 38.8
C [mm] (Inch): 177.8x8
Weight [kg]: 5.2
Primary material: Aluminium
Finish: Black Anodized

Downloads

OSE-OBT-1500LUU_STP.zip

OSE-OBA-LH.pdf

Bases_small.zip

Type: Inch
A [mm]: 2000
B [mm]: 111
C [mm] (Inch): 177.8x10
Weight [kg]: 7
Primary material: Aluminium
Finish: Black Anodized

Downloads

OSE-OBT-2000LUU_STP.zip

OSE-OBA-LH.pdf

Bases_small.zip
