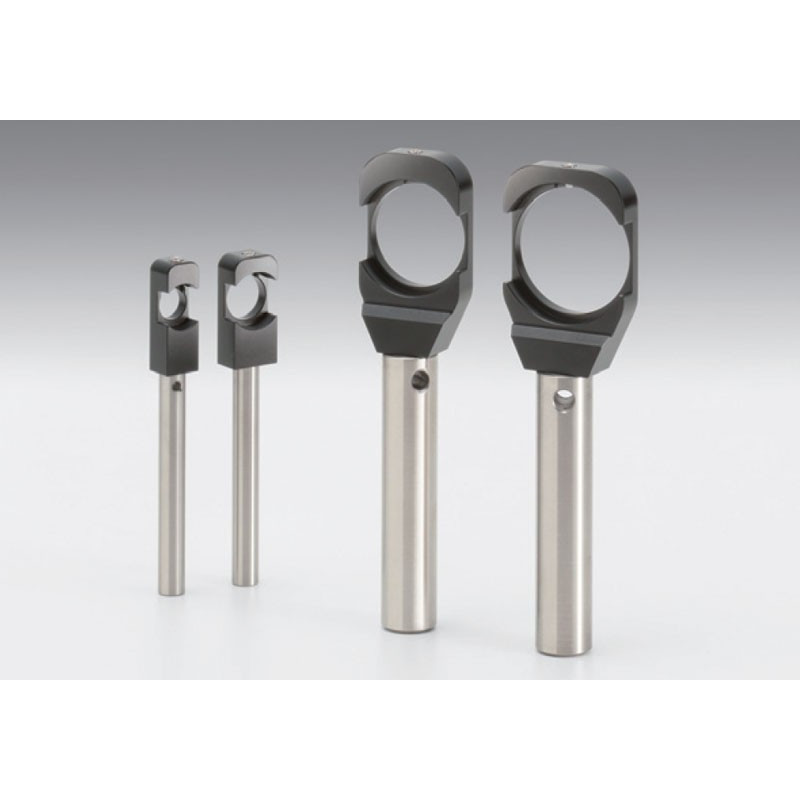

OSE-TLH: Mini Lens Holders

Reference number: OSE-TLH-5-DRi

Option

Compatible Optics Diameter

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

OSE-MHAN-M: Gimballed Mirror Mounts

OSE-MHAN-M

€214.40
OSE-MHAN-S: Gimballed Mirror Mounts

OSE-MHAN-S

€169.70
OSE-MHAN-EE: Gimballed Mirror Mounts

OSE-MHAN-EE

€205.70
OSE-MHA: Gimballed Mirror Mounts

OSE-MHA

€342.70
OSE-MHAN-DM: Gimballed Mirror Mounts

OSE-MHAN-DM

€331.60

Compatible optics diameter [mm]: 5
Compatible optic thickness [mm]: 1 - 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.013
A [mm]: 8.5
B [mm]: 7
C [mm]: 5
D [mm]: 3
Height optical axis [mm]: 15

Downloads

OSE-TLH-5-DRi_STP.zip

OSE-TLH_LHA.pdf

Holders.zip

Compatible optics diameter [mm]: 10
Compatible optic thickness [mm]: 1 - 4
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.013
A [mm]: 8.5
B [mm]: 7
C [mm]: 10
D [mm]: 7
Height optical axis [mm]: 15

Downloads

OSE-TLH-10-Dri_STP.zip

OSE-TLH_LHA.pdf

Holders.zip

Compatible optics diameter [mm]: 12.7
Compatible optic thickness [mm]: 1 - 4
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.014
A [mm]: 11.5
B [mm]: 8
C [mm]: 12.7
D [mm]: 10
Height optical axis [mm]: 15

Downloads

OSE-TLH-12.7-DRi_STP.zip

OSE-TLH_LHA.pdf

Holders.zip

Compatible optics diameter [mm]: 25.4
Compatible optic thickness [mm]: 1 - 4
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.065
A [mm]: 24
B [mm]: 12
C [mm]: 25.4
D [mm]: 22.4
Height optical axis [mm]: 25

Downloads

OSE-TLH-25.4-DRi_STP.zip

OSE-TLH_LHA.pdf

Holders.zip

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 1 - 4
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.065
A [mm]: 28.5
B [mm]: 15
C [mm]: 30
D [mm]: 27
Height optical axis [mm]: 25

Downloads

OSE-TLH-30-DRi_STP.zip

OSE-TLH_LHA.pdf

Holders.zip

Compatible optics diameter [mm]: 5
Compatible optic thickness [mm]: 1 - 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.004
A [mm]: 8.5
B [mm]: 7
C [mm]: 5
D [mm]: 3
Height optical axis [mm]: 15

Downloads

OSE-TLH-5-DRi-N_STP.zip

OSE-TLH_LHA.pdf

Holders.zip

Compatible optics diameter [mm]: 10
Compatible optic thickness [mm]: 1 - 4
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.004
A [mm]: 8.5
B [mm]: 7
C [mm]: 10
D [mm]: 7
Height optical axis [mm]: 15

Downloads

OSE-TLH-10-DRi-N_STP.zip

OSE-TLH_LHA.pdf

Holders.zip

Compatible optics diameter [mm]: 12.7
Compatible optic thickness [mm]: 1 - 4
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.005
A [mm]: 11.5
B [mm]: 8
C [mm]: 12.7
D [mm]: 10
Height optical axis [mm]: 15

Downloads

OSE-TLH-12.7-DRi-N_STP.zip

OSE-TLH_LHA.pdf

Holders.zip

Compatible optics diameter [mm]: 25.7
Compatible optic thickness [mm]: 1 - 4
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.015
A [mm]: 24
B [mm]: 12
C [mm]: 25.4
D [mm]: 22.4
Height optical axis [mm]: 25

Downloads

OSE-TLH-25.4-DRi-N_STP.zip

OSE-TLH_LHA.pdf

Holders.zip

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 1 - 4
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.015
A [mm]: 28.5
B [mm]: 15
C [mm]: 30
D [mm]: 27
Height optical axis [mm]: 25

Downloads

OSE-TLH-30-DRi-N_STP.zip

OSE-TLH_LHA.pdf

Holders.zip
