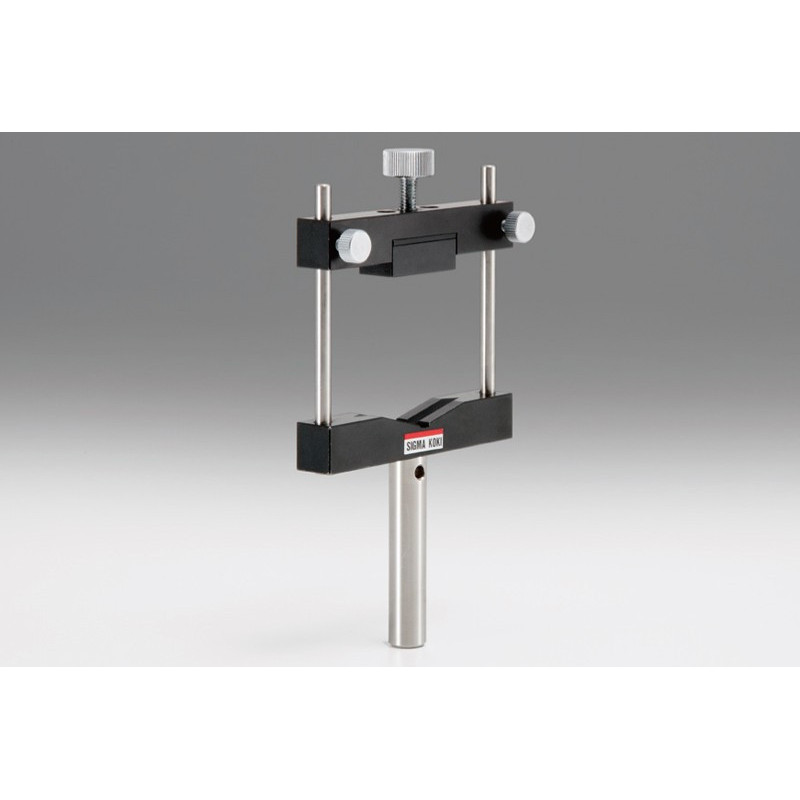

OSE-LHA: Adjustable Round Lens Holders

Reference number: OSE-LHA-25

Option

Compatible Optics Diameter

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

OSE-MHAN-M: Gimballed Mirror Mounts

OSE-MHAN-M

€214.40
OSE-MHAN-S: Gimballed Mirror Mounts

OSE-MHAN-S

€169.70
OSE-MHAN-EE: Gimballed Mirror Mounts

OSE-MHAN-EE

€205.70
OSE-MHA: Gimballed Mirror Mounts

OSE-MHA

€342.70
OSE-MHAN-DM: Gimballed Mirror Mounts

OSE-MHAN-DM

€331.60

Compatible optics diameter [mm]: 5 - 25,4
Compatible optic thickness [mm]: 1 - 2.5
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.1
A [mm]: 25.4
B [mm]: 5
C [mm]: 40
D [mm]: 45
E [mm]: 12
F [mm]: 8
G [mm]: 12
H [mm]: 7.5

Downloads

OSE-LHA-25_STP.zip

Holders.zip

Compatible optics diameter [mm]: 10 - 60
Compatible optic thickness [mm]: 1 - 4.7
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.2
A [mm]: 60
B [mm]: 10
C [mm]: 86
D [mm]: 88
E [mm]: 14
F [mm]: 9
G [mm]: 12
H [mm]: 9

Downloads

OSE-LHA-60_STP.zip

Holders.zip

Compatible optics diameter [mm]: 20 - 101,6
Compatible optic thickness [mm]: 1 - 7
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.5
A [mm]: 101.6
B [mm]: 20
C [mm]: 134
D [mm]: 135
E [mm]: 19
F [mm]: 13
G [mm]: 20
H [mm]: 8

Downloads

OSE-LHA-100_STP.zip

Holders.zip

Compatible optics diameter [mm]: 30 - 150
Compatible optic thickness [mm]: 1 - 7
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.8
A [mm]: 150
B [mm]: 30
C [mm]: 200
D [mm]: 195
E [mm]: 19
F [mm]: 14
G [mm]: 20
H [mm]: 14

Downloads

OSE-LHA-150_STP.zip

Holders.zip

Compatible optics diameter [mm]: 5 - 25,4
Compatible optic thickness [mm]: 1 - 2.5
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.05
A [mm]: 25.4
B [mm]: 5
C [mm]: 40
D [mm]: 45
E [mm]: 12
F [mm]: 8
H [mm]: 7.5

Downloads

OSE-LHA-25-N_STP.zip

Holders.zip

Compatible optics diameter [mm]: 10 - 60
Compatible optic thickness [mm]: 1 - 4.7
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.15
A [mm]: 60
B [mm]: 10
C [mm]: 86
D [mm]: 88
E [mm]: 14
F [mm]: 9
H [mm]: 9

Downloads

OSE-LHA-60-N_STP.zip

Holders.zip

Compatible optics diameter [mm]: 20 - 101,6
Compatible optic thickness [mm]: 1 - 7
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.35
A [mm]: 101.6
B [mm]: 20
C [mm]: 160
D [mm]: 135
E [mm]: 19
F [mm]: 13
H [mm]: 8

Downloads

OSE-LHA-100-N_STP.zip

Holders.zip

Compatible optics diameter [mm]: 5 - 25,4
Compatible optic thickness [mm]: 1 - 2.5
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.05
A [mm]: 25.4
B [mm]: 30
C [mm]: 200
D [mm]: 192
E [mm]: 19
F [mm]: 14
H [mm]: 14

Downloads

OSE-LHA-150-N_STP.zip

Holders.zip

Compatible optics diameter [mm]: 5 - 25,4
Compatible optic thickness [mm]: 1 - 2.5
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.05
A [mm]: 25.4
B [mm]: 5
C [mm]: 40
D [mm]: 45
E [mm]: 10
F [mm]: 8
G [mm]: 7.5
H [mm]: M4

Downloads

OSE-LHA-25-EE_STP.zip

Holders.zip

Compatible optics diameter [mm]: 10 - 60
Compatible optic thickness [mm]: 1 - 4.7
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.15
A [mm]: 60
B [mm]: 10
C [mm]: 86
D [mm]: 97
E [mm]: 14
F [mm]: 8.5
G [mm]: 9
H [mm]: M4

Downloads

OSE-LHA-60-EE_STP.zip

Holders.zip

Compatible optics diameter [mm]: 20 - 101,6
Compatible optic thickness [mm]: 1 - 7
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.35
A [mm]: 101.6
B [mm]: 20
C [mm]: 160
D [mm]: 86
E [mm]: 14
F [mm]: 12.5
G [mm]: 8
H [mm]: M4

Downloads

OSE-LHA-100-EE_STP.zip

Holders.zip

Compatible optics diameter [mm]: 5 - 25,4
Compatible optic thickness [mm]: 1 - 2.5
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.05
A [mm]: 25.4
B [mm]: 5
C [mm]: 40
D [mm]: 45
E [mm]: 10
F [mm]: 8
G [mm]: 7.5
H [mm]: 8-32UNC

Downloads

OSE-LHA-25-UU_STP.zip

Holders.zip

Compatible optics diameter [mm]: 10 - 60
Compatible optic thickness [mm]: 1 - 4.7
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.15
A [mm]: 60
B [mm]: 10
C [mm]: 86
D [mm]: 97
E [mm]: 14
F [mm]: 8.5
G [mm]: 9
H [mm]: 8-32UNC

Downloads

OSE-LHA-60-UU_STP.zip

Holders.zip

Compatible optics diameter [mm]: 20 - 101,6
Compatible optic thickness [mm]: 1 - 7
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.35
A [mm]: 101.6
B [mm]: 20
C [mm]: 160
D [mm]: 86
E [mm]: 14
F [mm]: 12.5
G [mm]: 8
H [mm]: 8-32UNC

Downloads

OSE-LHA-100-UU_STP.zip

Holders.zip
