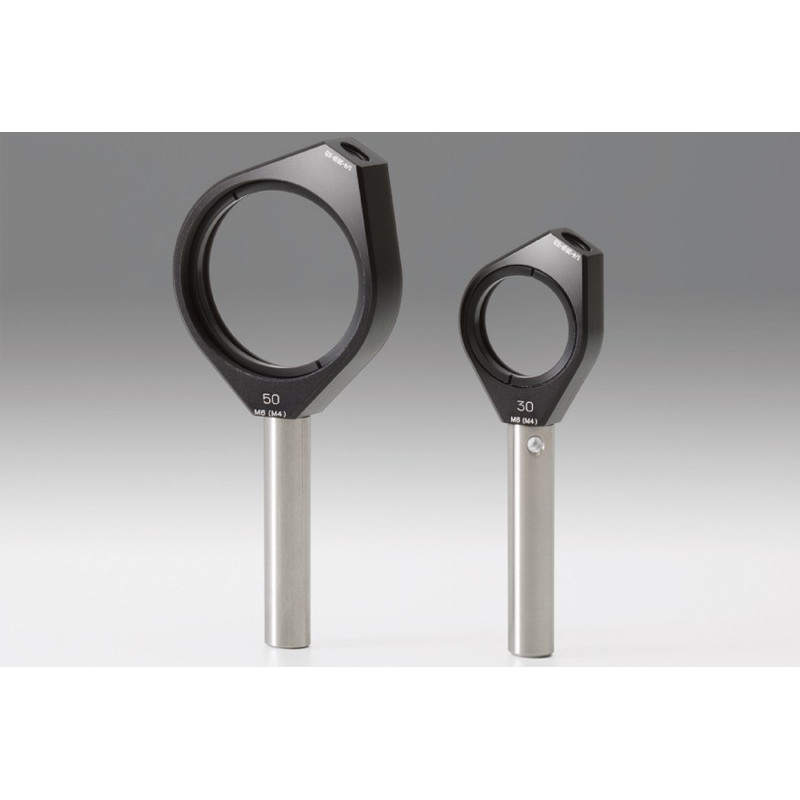

OSE-LHF-S: Slim Lens Holders

Reference number: OSE-LHF-10S

Option

Thickness in mm

Compatible Optics Diameter

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

OSE-MHAN-M: Gimballed Mirror Mounts

OSE-MHAN-M

€214.40
OSE-MHAN-S: Gimballed Mirror Mounts

OSE-MHAN-S

€169.70
OSE-MHAN-EE: Gimballed Mirror Mounts

OSE-MHAN-EE

€205.70
OSE-MHA: Gimballed Mirror Mounts

OSE-MHA

€342.70
OSE-MHAN-DM: Gimballed Mirror Mounts

OSE-MHAN-DM

€331.60

Compatible optics diameter [mm]: 10
Compatible optic thickness [mm]: 2 - 7
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.06
B [mm]: 7
C [mm]: M10.85P0.75
D [mm]: 15
E [mm]: 4
F [mm]: 12
G [mm]: 17
H [mm]: 34.05

Downloads

Compatible optics diameter [mm]: 15
Compatible optic thickness [mm]: 2 - 10
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.07
B [mm]: 12
C [mm]: M15.85P0.75
D [mm]: 20
E [mm]: 5
F [mm]: 15
G [mm]: 20
H [mm]: 39.05

Downloads

OSE-LHF-15S_STP.zip

DOWNLOAD

OSE-LHF-S.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 20
Compatible optic thickness [mm]: 2 - 13
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.08
B [mm]: 17
C [mm]: M20.85P0.75
D [mm]: 20
E [mm]: 7
F [mm]: 18
G [mm]: 27
H [mm]: 39.05

Downloads

OSE-LHF-20S_STP.zip

DOWNLOAD

OSE-LHF-S.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 25
Compatible optic thickness [mm]: 2 - 11
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.09
B [mm]: 22
C [mm]: M25.85P0.75
D [mm]: 25
E [mm]: 6
F [mm]: 16
G [mm]: 32
H [mm]: 50
I [mm]: 25.4

Downloads

OSE-LHF-25S_STP.zip

DOWNLOAD

OSE-LHF-S.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 25.4
Compatible optic thickness [mm]: 2 - 7
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.08
B [mm]: 22
C [mm]: M26.25P0.75
D [mm]: 25
E [mm]: 4
F [mm]: 12
G [mm]: 32
H [mm]: 50
I [mm]: 25.4

Downloads

OSE-LHF-25.4S_STP.zip

DOWNLOAD

OSE-LHF-S.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 2 - 7
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.09
B [mm]: 26
C [mm]: M30.85P0.75
D [mm]: 25
E [mm]: 4
F [mm]: 12
G [mm]: 36
H [mm]: 50
I [mm]: 25.4

Downloads

OSE-LHF-30S_STP.zip

DOWNLOAD

OSE-LHF-S.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 3 - 12
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.11
B [mm]: 26
C [mm]: M30.85P0.75
D [mm]: 25
E [mm]: 7
F [mm]: 18
G [mm]: 36
H [mm]: 50
I [mm]: 25.4

Downloads

OSE-LHF-30AS_STP.zip

DOWNLOAD

OSE-LHF-S.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 12.7
Compatible optic thickness [mm]: 2 - 7
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.06
B [mm]: 10
C [mm]: M13.55P0.75
D [mm]: 15
E [mm]: 4
F [mm]: 12
G [mm]: 17
H [mm]: 34.05

Downloads

OSE-LHF-12.7S_STP.zip

DOWNLOAD

OSE-LHF-S.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 40
Compatible optic thickness [mm]: 2 - 13
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.11
B [mm]: 37
C [mm]: M40.85P0.75
D [mm]: 30
E [mm]: 7
F [mm]: 18
G [mm]: 46
H [mm]: 66
I [mm]: 38.1

Downloads

OSE-LHF-40S_STP.zip

DOWNLOAD

OSE-LHF-S.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 40
Compatible optic thickness [mm]: 3 - 15
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.12
B [mm]: 37
C [mm]: M40.85P0.75
D [mm]: 30
E [mm]: 8
F [mm]: 20
G [mm]: 46
H [mm]: 66
I [mm]: 38.1

Downloads

OSE-LHF-40AS_STP.zip

DOWNLOAD

OSE-LHF-S.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 50
Compatible optic thickness [mm]: 3 - 13
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.11
B [mm]: 46
C [mm]: M50.85P0.75
D [mm]: 35
E [mm]: 7
F [mm]: 18
G [mm]: 57
H [mm]: 71
I [mm]: 38.1

Downloads

OSE-LHF-50S_STP.zip

DOWNLOAD

OSE-LHF-S.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 50
Compatible optic thickness [mm]: 3 - 19
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.13
B [mm]: 46
C [mm]: M50.85P0.75
D [mm]: 35
E [mm]: 10
F [mm]: 24
G [mm]: 57
H [mm]: 71
I [mm]: 38.1

Downloads

OSE-LHF-50AS_STP.zip

DOWNLOAD

OSE-LHF-S.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 50.8
Compatible optic thickness [mm]: 2 - 13
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.11
B [mm]: 47
C [mm]: M51.65P0.75
D [mm]: 35
E [mm]: 7
F [mm]: 18
G [mm]: 58
H [mm]: 71
I [mm]: 38.1

Downloads

OSE-LHF-50.8S_STP.zip

DOWNLOAD

OSE-LHF-S.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 60
Compatible optic thickness [mm]: 3 - 16
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.13
B [mm]: 56
C [mm]: M60.85P0.75
D [mm]: 40
E [mm]: 13.5
F [mm]: 27
G [mm]: 67
H [mm]: 76
I [mm]: 38.1

Downloads

OSE-LHF-60AS_STP.zip

DOWNLOAD

OSE-LHF-S.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 10
Compatible optic thickness [mm]: 2 - 7
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.06
B [mm]: 7
C [mm]: M10.85P0.75
D [mm]: 15
E [mm]: 4
F [mm]: 12
G [mm]: 17
H [mm]: 34.05

Downloads

OSE-LHF-10S-N_STP.zip

DOWNLOAD

OSE-LHF-S.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 15
Compatible optic thickness [mm]: 2 - 10
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.02
B [mm]: 12
C [mm]: M15.85P0.75
D [mm]: 20
E [mm]: 5
F [mm]: 15
G [mm]: 20
H [mm]: 39.05

Downloads

OSE-LHF-15S-N_STP.zip

DOWNLOAD

OSE-LHF-S.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 20
Compatible optic thickness [mm]: 2 - 13
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.03
B [mm]: 17
C [mm]: M20.85P0.75
D [mm]: 20
E [mm]: 7
F [mm]: 18
G [mm]: 27
H [mm]: 39.05

Downloads

OSE-LHF-20S-N_STP.zip

DOWNLOAD

OSE-LHF-S.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 25
Compatible optic thickness [mm]: 2 - 11
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.04
B [mm]: 22
C [mm]: M25.85P0.75
D [mm]: 25
E [mm]: 6
F [mm]: 16
G [mm]: 32
H [mm]: 50
I [mm]: 25.4

Downloads

OSE-LHF-25S-N_STP.zip

DOWNLOAD

OSE-LHF-S.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 25.4
Compatible optic thickness [mm]: 2 - 7
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.03
B [mm]: 22
C [mm]: M26.25P0.75
D [mm]: 25
E [mm]: 4
F [mm]: 12
G [mm]: 32
H [mm]: 50
I [mm]: 25.4

Downloads

OSE-LHF-25.4S-N_STP.zip

DOWNLOAD

OSE-LHF-S.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 2 - 7
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.04
B [mm]: 26
C [mm]: M30.85.P0.75
D [mm]: 25
E [mm]: 4
F [mm]: 12
G [mm]: 36
H [mm]: 50
I [mm]: 25.4

Downloads

OSE-LHF-30S-N_STP.zip

DOWNLOAD

OSE-LHF-S.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 3 - 12
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.06
B [mm]: 26
C [mm]: M30.85P0.75
D [mm]: 25
E [mm]: 7
F [mm]: 18
G [mm]: 36
H [mm]: 50
I [mm]: 25.4

Downloads

OSE-LHF-30AS-N_STP.zip

DOWNLOAD

OSE-LHF-S.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 12.7
Compatible optic thickness [mm]: 2 - 7
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.01
B [mm]: 10
C [mm]: M13.55P0.75
D [mm]: 15
E [mm]: 4
F [mm]: 12
G [mm]: 17
H [mm]: 34.05

Downloads

OSE-LHF-12.7S-N_STP.zip

DOWNLOAD

OSE-LHF-S.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 40
Compatible optic thickness [mm]: 2 - 13
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.06
B [mm]: 37
C [mm]: M40.85P0.75
D [mm]: 30
E [mm]: 7
F [mm]: 18
G [mm]: 46
H [mm]: 66
I [mm]: 38.1

Downloads

OSE-LHF-40S-N_STP.zip

DOWNLOAD

OSE-LHF-S.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 40
Compatible optic thickness [mm]: 3 - 15
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.07
B [mm]: 37
C [mm]: M40.85P0.75
D [mm]: 30
E [mm]: 8
F [mm]: 20
G [mm]: 46
H [mm]: 66
I [mm]: 38.1

Downloads

OSE-LHF-40AS-N_STP.zip

DOWNLOAD

OSE-LHF-S.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 50
Compatible optic thickness [mm]: 3 - 13
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.06
B [mm]: 46
C [mm]: M50.85P0.75
D [mm]: 35
E [mm]: 7
F [mm]: 18
G [mm]: 57
H [mm]: 71
I [mm]: 38.1

Downloads

OSE-LHF-50S-N_STP.zip

DOWNLOAD

OSE-LHF-S.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 50
Compatible optic thickness [mm]: 3 - 19
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.08
B [mm]: 46
C [mm]: M50.85P0.75
D [mm]: 35
E [mm]: 10
F [mm]: 24
G [mm]: 57
H [mm]: 71
I [mm]: 38.1

Downloads

OSE-LHF-50AS-N_STP.zip

DOWNLOAD

OSE-LHF-S.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 50.8
Compatible optic thickness [mm]: 2 - 13
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.06
B [mm]: 47
C [mm]: M51.65P0.75
D [mm]: 35
E [mm]: 7
F [mm]: 18
G [mm]: 58
H [mm]: 71
I [mm]: 38.1

Downloads

OSE-LHF-50.8S-N_STP.zip

DOWNLOAD

OSE-LHF-S.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 60
Compatible optic thickness [mm]: 3 - 16
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.08
B [mm]: 56
C [mm]: M60.85P0.75
D [mm]: 40
E [mm]: 13.5
F [mm]: 27
G [mm]: 67
H [mm]: 76
I [mm]: 38.1
