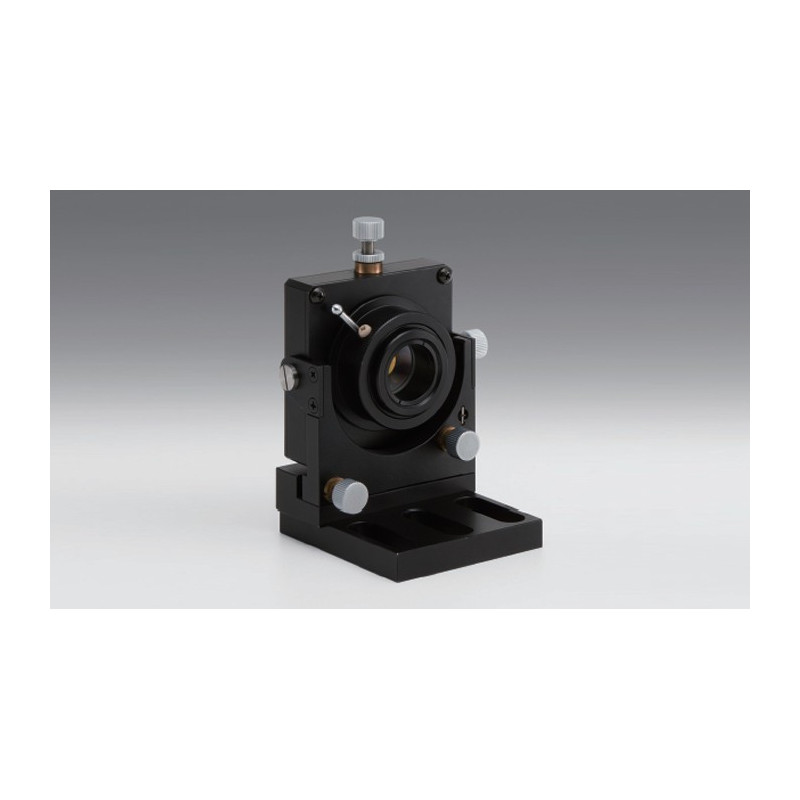

OSE-ALHN-5: Five-axis Lens Holders

Reference number: OSE-ALHN-25-5

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

OSE-MHAN-M: Gimballed Mirror Mounts

OSE-MHAN-M

€214.40
OSE-MHAN-S: Gimballed Mirror Mounts

OSE-MHAN-S

€169.70
OSE-MHAN-EE: Gimballed Mirror Mounts

OSE-MHAN-EE

€205.70
OSE-MHA: Gimballed Mirror Mounts

OSE-MHA

€342.70
OSE-MHAN-DM: Gimballed Mirror Mounts

OSE-MHAN-DM

€331.60

Compatible optics diameter [mm]: 25
Compatible optic thickness [mm]: 3 - 28
Centering adjustment range: 6
Centering adjustment resolution [mm/rotation]: 0.25
Focus adjustment range: 3
Tilt range /tilt: 4
Tilt range /rotation: 4
Resolution /tilt [°/rotation]: about 0.5
Resolution /rotation [°/rotation]: about 0.5
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.5
A [mm]: 68
B [mm]: 99.5
C [mm]: 63.5
D [mm]: 74
F [mm]: 25
G [mm]: 22
H [mm]: 75
I [mm]: 68
J [mm]: 41.3

Downloads

OSE-ALHN-25-5_STP.zip

OSE-ALHN-3_ALHN-5.pdf

Holders.zip

Compatible optics diameter [mm]: 25.4
Compatible optic thickness [mm]: 3 - 28
Centering adjustment range: 6
Centering adjustment resolution [mm/rotation]: 0.25
Focus adjustment range: 3
Tilt range /tilt: 4
Tilt range /rotation: 4
Resolution /tilt [°/rotation]: about 0.5
Resolution /rotation [°/rotation]: about 0.5
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.5
A [mm]: 68
B [mm]: 99.5
C [mm]: 63.5
D [mm]: 74
F [mm]: 25.4
G [mm]: 22
H [mm]: 75
I [mm]: 68
J [mm]: 41.3

Downloads

OSE-ALHN-25.4-5_STP.zip

OSE-ALHN-3_ALHN-5.pdf

Holders.zip

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 3 - 28
Centering adjustment range: 6
Centering adjustment resolution [mm/rotation]: 0.25
Focus adjustment range: 3
Tilt range /tilt: 4
Tilt range /rotation: 4
Resolution /tilt [°/rotation]: about 0.5
Resolution /rotation [°/rotation]: about 0.5
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.5
A [mm]: 68
B [mm]: 99.5
C [mm]: 63.5
D [mm]: 74
F [mm]: 30
G [mm]: 27
H [mm]: 75
I [mm]: 68
J [mm]: 41.3

Downloads

OSE-ALHN-30-5_STP.zip

OSE-ALHN-3_ALHN-5.pdf

Holders.zip

Compatible optics diameter [mm]: 50
Compatible optic thickness [mm]: 3 - 28
Centering adjustment range: 6
Centering adjustment resolution [mm/rotation]: 0.25
Focus adjustment range: 3
Tilt range /tilt: 3
Tilt range /rotation: 3
Resolution /tilt [°/rotation]: about 0.36
Resolution /rotation [°/rotation]: about 0.36
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.75
A [mm]: 88
B [mm]: 1222.2
C [mm]: 76.2
D [mm]: 94
F [mm]: 50
G [mm]: 46
H [mm]: 95
I [mm]: 75
J [mm]: 59.6

Downloads

OSE-ALHN-50-5_STP.zip

OSE-ALHN-3_ALHN-5.pdf

Holders.zip

Compatible optics diameter [mm]: 50.8
Compatible optic thickness [mm]: 3 - 28
Centering adjustment range: 6
Centering adjustment resolution [mm/rotation]: 0.25
Focus adjustment range: 3
Tilt range /tilt: 3
Tilt range /rotation: 3
Resolution /tilt [°/rotation]: about 0.36
Resolution /rotation [°/rotation]: about 0.36
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.75
A [mm]: 88
B [mm]: 122.2
C [mm]: 76.2
D [mm]: 94
F [mm]: 50.8
G [mm]: 46
H [mm]: 95
I [mm]: 75
J [mm]: 59.8

Downloads

OSE-ALHN-50.8-5_STP.zip

OSE-ALHN-3_ALHN-5.pdf

Holders.zip
