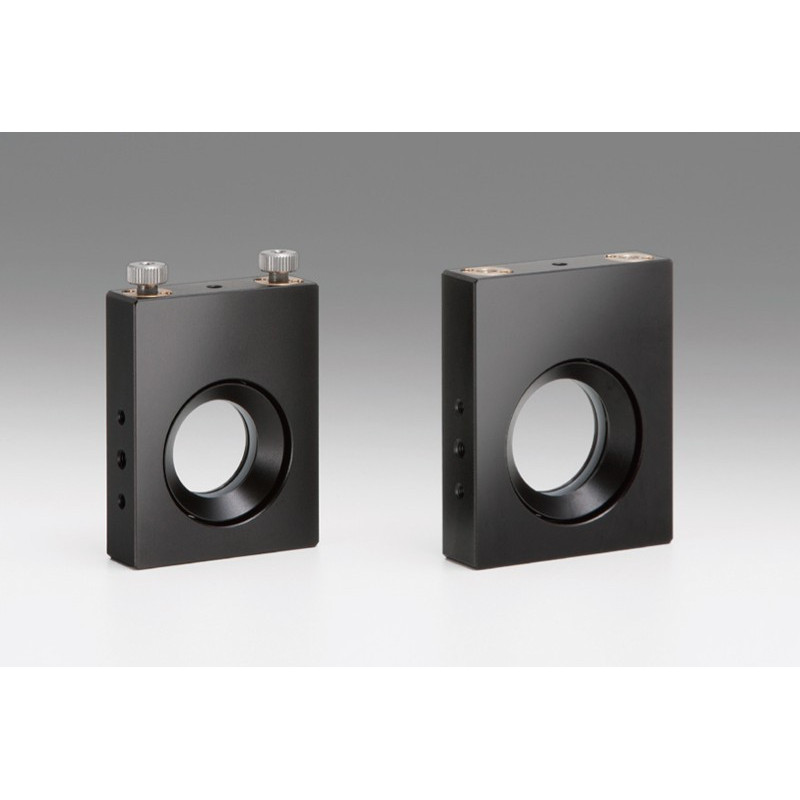

OSE-BSHL-TF: Vertical Control Gimbal Beamsplitter Holders

Reference number: OSE-BSHL-12.7-TF

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

OSE-MHAN-M: Gimballed Mirror Mounts

OSE-MHAN-M

€214.40
OSE-MHAN-S: Gimballed Mirror Mounts

OSE-MHAN-S

€169.70
OSE-MHAN-EE: Gimballed Mirror Mounts

OSE-MHAN-EE

€205.70
OSE-MHA: Gimballed Mirror Mounts

OSE-MHA

€342.70
OSE-MHAN-DM: Gimballed Mirror Mounts

OSE-MHAN-DM

€331.60

with/without knobs: Without Knobs
Compatible optics diameter [mm]: 12.7
Compatible optic thickness [mm]: 1 - 3
45° Incidence reflected beam diameter [mm]: 6.8
45° Incidence central transmission beam diameter [mm]: 2.51
Adjustment range tilt ±[mm]: 1.5
Adjustment range rotation ±[mm]: 1.2
Fine adjustment range /tilt [°/rotation]: 0.6
Fine adjustment range /rotation [°/rotation]: 0.6
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.06
Minimum mirror thickness [mm]: 8.9

Downloads

OSE-BSHL-12.7-TF_STP.zip

OSE-BSHL-2_BSHL-TF.pdf

Holders.zip

with/without knobs: Without Knobs
Compatible optics diameter [mm]: 15
Compatible optic thickness [mm]: 1 - 3
45° Incidence reflected beam diameter [mm]: 8.4
45° Incidence central transmission beam diameter [mm]: 4.13
Adjustment range tilt ±[mm]: 1.5
Adjustment range rotation ±[mm]: 1.2
Fine adjustment range /tilt [°/rotation]: 0.6
Fine adjustment range /rotation [°/rotation]: 0.6
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.06
Minimum mirror thickness [mm]: -

Downloads

OSE-BSHL-15-TF_STP.zip

OSE-BSHL-2_BSHL-TF.pdf

Holders.zip

with/without knobs: Without Knobs
Compatible optics diameter [mm]: 20
Compatible optic thickness [mm]: 3 - 5
45° Incidence reflected beam diameter [mm]: 12
45° Incidence central transmission beam diameter [mm]: 7.67
Adjustment range tilt ±[mm]: 1.2
Adjustment range rotation ±[mm]: 1.2
Fine adjustment range /tilt [°/rotation]: 0.35
Fine adjustment range /rotation [°/rotation]: 0.45
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.11
Minimum mirror thickness [mm]: 1.4

Downloads

OSE-BSHL-20-TF_STP.zip

OSE-BSHL-2_BSHL-TF.pdf

Holders.zip

with/without knobs: Without Knobs
Compatible optics diameter [mm]: 25.4
Compatible optic thickness [mm]: 3 - 5
45° Incidence reflected beam diameter [mm]: 15.8
45° Incidence central transmission beam diameter [mm]: 11.49
Adjustment range tilt ±[mm]: 1.2
Adjustment range rotation ±[mm]: 1.2
Fine adjustment range /tilt [°/rotation]: 0.35
Fine adjustment range /rotation [°/rotation]: 0.45
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.11
Minimum mirror thickness [mm]: 5.3

Downloads

OSE-BSHL-25.4-TF_STP.zip

OSE-BSHL-2_BSHL-TF.pdf

Holders.zip

with/without knobs: Without Knobs
Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 3 - 5
45° Incidence reflected beam diameter [mm]: 19
45° Incidence central transmission beam diameter [mm]: 14.74
Adjustment range tilt ±[mm]: 1.2
Adjustment range rotation ±[mm]: 1.2
Fine adjustment range /tilt [°/rotation]: 0.34
Fine adjustment range /rotation [°/rotation]: 0.4
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.13
Minimum mirror thickness [mm]: 8.9

Downloads

OSE-BSHL-30-TF_STP.zip

OSE-BSHL-2_BSHL-TF.pdf

Holders.zip

with/without knobs: Without Knobs
Compatible optics diameter [mm]: 50
Compatible optic thickness [mm]: 5 - 8
45° Incidence reflected beam diameter [mm]: 31
45° Incidence central transmission beam diameter [mm]: 27.39
Adjustment range tilt ±[mm]: 1.5
Adjustment range rotation ±[mm]: 1.5
Fine adjustment range /tilt [°/rotation]: 0.23
Fine adjustment range /rotation [°/rotation]: 0.27
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.48
Minimum mirror thickness [mm]: 8.9

Downloads

OSE-BSHL-50-TF_STP.zip

OSE-BSHL-2_BSHL-TF.pdf

Holders.zip

with/without knobs: Without Knobs
Compatible optics diameter [mm]: 50.8
Compatible optic thickness [mm]: 5 - 8
45° Incidence reflected beam diameter [mm]: 32
45° Incidence central transmission beam diameter [mm]: 28.10
Adjustment range tilt ±[mm]: 1.5
Adjustment range rotation ±[mm]: 1.5
Fine adjustment range /tilt [°/rotation]: 0.23
Fine adjustment range /rotation [°/rotation]: 0.27
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.48
Minimum mirror thickness [mm]: 8.9

Downloads

OSE-BSHL-50.8-TF_STP.zip

OSE-BSHL-2_BSHL-TF.pdf

Holders.zip
