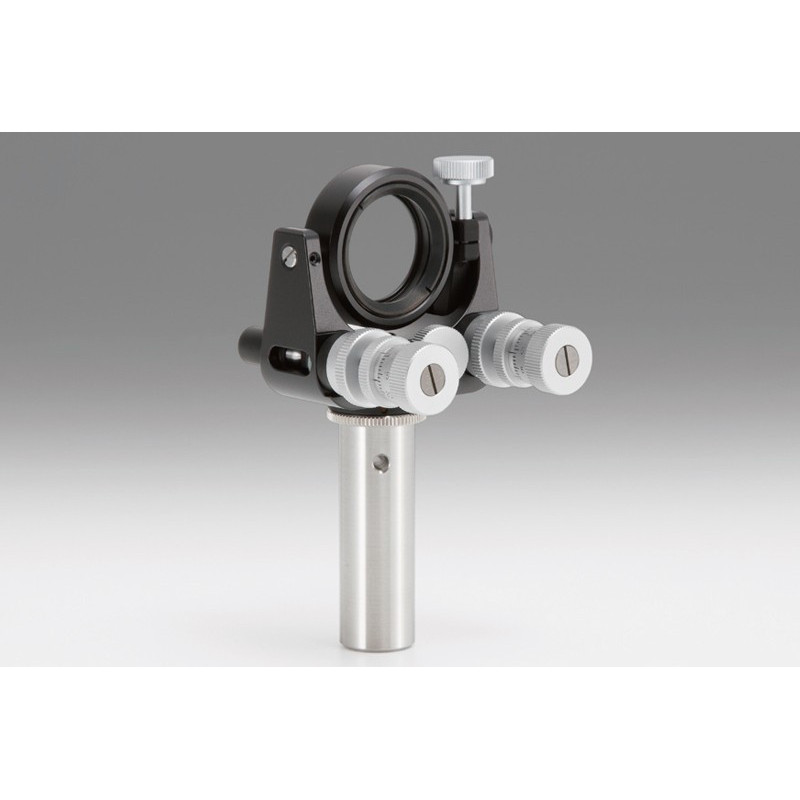

OSE-BHAN-S: Gimbal Beamsplitter Holders

Reference number: OSE-BHAN-30S

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

OSE-MHAN-M: Gimballed Mirror Mounts

OSE-MHAN-M

€214.40
OSE-MHAN-S: Gimballed Mirror Mounts

OSE-MHAN-S

€169.70
OSE-MHAN-EE: Gimballed Mirror Mounts

OSE-MHAN-EE

€205.70
OSE-MHA: Gimballed Mirror Mounts

OSE-MHA

€342.70
OSE-MHAN-DM: Gimballed Mirror Mounts

OSE-MHAN-DM

€331.60

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 3 - 5
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.54
Fine adjustment range /rotation [°/rotation]: about 0.68
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.4
B [mm]: ±4°

Downloads

OSE-BHAN-30S_STP.zip

OSE-BHAN-S_BHAN-DM.pdf

Holders.zip

Compatible optics diameter [mm]: 50
Compatible optic thickness [mm]: 5 - 8
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.31
Fine adjustment range /rotation [°/rotation]: about 0.48
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.5
B [mm]: ±4°

Downloads

OSE-BHAN-50S_STP.zip

OSE-BHAN-S_BHAN-DM.pdf

Holders.zip

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 3 - 5
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.54
Fine adjustment range /rotation [°/rotation]: about 0.68
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.25

Downloads

OSE-BHAN-30S-N_STP.zip

Holders.zip

Compatible optics diameter [mm]: 50
Compatible optic thickness [mm]: 5 - 8
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.31
Fine adjustment range /rotation [°/rotation]: about 0.48
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.35

Downloads

OSE-BHAN-50S-N_STP.zip

Holders.zip

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 3 - 5
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.54
Fine adjustment range /rotation [°/rotation]: about 0.68
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.25

Downloads

OSE-BHAN-30S-UU_STP.zip

OSE-BHAN-S_BHAN-DM.pdf

Holders.zip

Compatible optics diameter [mm]: 50
Compatible optic thickness [mm]: 5 - 8
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.31
Fine adjustment range /rotation [°/rotation]: about 0.48
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.35

Downloads

OSE-BHAN-50S-UU_STP.zip

OSE-BHAN-S_BHAN-DM.pdf

Holders.zip
