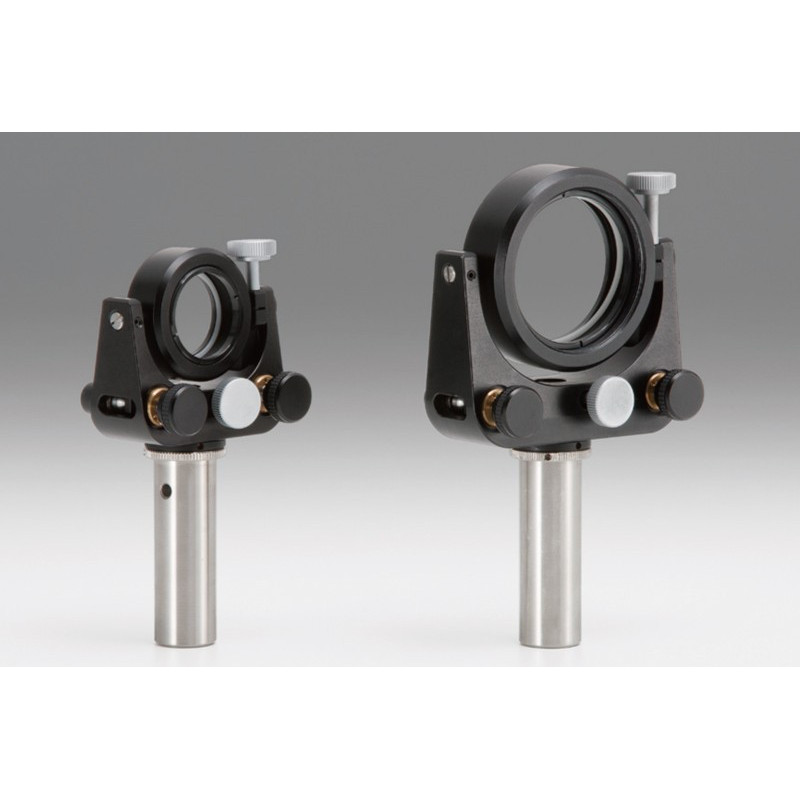

OSE-MHA: Gimballed Mirror Mounts

Reference number: OSE-MHA-80S

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

OSE-MHAN-M: Gimballed Mirror Mounts

OSE-MHAN-M

€214.40
OSE-MHAN-S: Gimballed Mirror Mounts

OSE-MHAN-S

€169.70
OSE-MHAN-EE: Gimballed Mirror Mounts

OSE-MHAN-EE

€205.70
OSE-MHAN-DM: Gimballed Mirror Mounts

OSE-MHAN-DM

€331.60
OSE-BHAN-M: Gimbal Beamsplitter Holders

OSE-BHAN-M

€231.40

Compatible optics diameter [mm]: 80
Compatible optic thickness [mm]: 4 - 15
Clear/input aperture: 65.1
Adjustment range tilt ±[mm]: 3.5
Adjustment range rotation ±[mm]: 5
Fine adjustment range /tilt [°/rotation]: about 0.49
Fine adjustment range /rotation [°/rotation]: about 0.72
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 1.6

Downloads

OSE-MHA-80S_STP.zip

OSE-MHAN-S_MHA_MHAN-DM.pdf

Holders.zip

Compatible optics diameter [mm]: 100
Compatible optic thickness [mm]: 4 - 14.5
Clear/input aperture: 86.3
Adjustment range tilt ±[mm]: 3.4
Adjustment range rotation ±[mm]: 5
Fine adjustment range /tilt [°/rotation]: about 0.35
Fine adjustment range /rotation [°/rotation]: about 0.52
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 1.9

Downloads

OSE-MHAN-S_MHA_MHAN-DM.pdf

Holders.zip

Compatible optics diameter [mm]: 130
Compatible optic thickness [mm]: 7 - 17
Clear/input aperture: 100.4
Adjustment range tilt ±[mm]: 2.9
Adjustment range rotation ±[mm]: 5
Fine adjustment range /tilt [°/rotation]: about 0.30
Fine adjustment range /rotation [°/rotation]: about 0.42
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 2.3

Downloads

OSE-MHA-130S_STP.zip

OSE-MHAN-S_MHA_MHAN-DM.pdf

Holders.zip

Compatible optics diameter [mm]: 150
Compatible optic thickness [mm]: 4 - 20
Adjustment range tilt ±[mm]: 2.5
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.26
Fine adjustment range /rotation [°/rotation]: about 0.38
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 2.5

Downloads

OSE-MHA-150S_STP.zip

OSE-MHAN-S_MHA_MHAN-DM.pdf

Holders.zip
