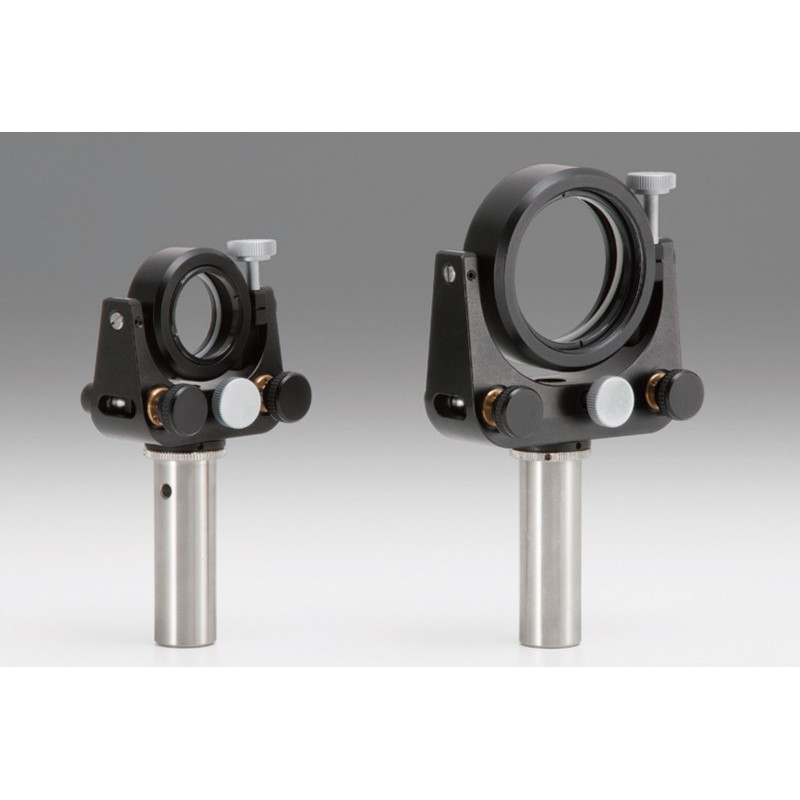

OSE-MHAN-S: Gimballed Mirror Mounts

Reference number: OSE-MHAN-20S

Option

Compatible Optics Diameter

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

OSE-MHAN-M: Gimballed Mirror Mounts

OSE-MHAN-M

€214.40
OSE-MHAN-EE: Gimballed Mirror Mounts

OSE-MHAN-EE

€205.70
OSE-MHA: Gimballed Mirror Mounts

OSE-MHA

€342.70
OSE-MHAN-DM: Gimballed Mirror Mounts

OSE-MHAN-DM

€331.60
OSE-BHAN-M: Gimbal Beamsplitter Holders

OSE-BHAN-M

€231.40

Compatible optics diameter [mm]: 20
Compatible optic thickness [mm]: 2 - 6
Clear/input aperture: 12.7
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.54
Fine adjustment range /rotation [°/rotation]: about 0.68
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.3

Downloads

OSE-MHAN-20S_STP.zip

OSE-MHAN-S_MHA_MHAN-DM.pdf

Holders.zip

Compatible optics diameter [mm]: 25.4
Compatible optic thickness [mm]: 2 - 6
Clear/input aperture: 16.3
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.54
Fine adjustment range /rotation [°/rotation]: about 0.68
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.4

Downloads

OSE-MHAN-25.4S_STP.zip

OSE-MHAN-S_MHA_MHAN-DM.pdf

Holders.zip

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 2 - 6
Clear/input aperture: 23.3
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.54
Fine adjustment range /rotation [°/rotation]: about 0.68
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.4

Downloads

OSE-MHAN-30S_STP.zip

OSE-MHAN-S_MHA_MHAN-DM.pdf

Holders.zip

Compatible optics diameter [mm]: 40
Compatible optic thickness [mm]: 2 - 8
Clear/input aperture: 30.4
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.45
Fine adjustment range /rotation [°/rotation]: about 0.55
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.6

Downloads

OSE-MHAN-40S_STP.zip

OSE-MHAN-S_MHA_MHAN-DM.pdf

Holders.zip

Compatible optics diameter [mm]: 50
Compatible optic thickness [mm]: 3 - 11
Clear/input aperture: 30.4
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.35
Fine adjustment range /rotation [°/rotation]: about 0.48
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.7

Downloads

OSE-MHAN-50S_STP.zip

OSE-MHAN-S_MHA_MHAN-DM.pdf

Holders.zip

Compatible optics diameter [mm]: 50.8
Compatible optic thickness [mm]: 3 - 11
Clear/input aperture: 37.5
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.35
Fine adjustment range /rotation [°/rotation]: about 0.48
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.7

Downloads

OSE-MHAN-50.8S_STP.zip

OSE-MHAN-S_MHA_MHAN-DM.pdf

Holders.zip

Compatible optics diameter [mm]: 60
Compatible optic thickness [mm]: 3 -11
Clear/input aperture: 9.2
Adjustment range tilt ±[mm]: 3
Adjustment range rotation ±[mm]: 3
Fine adjustment range /tilt [°/rotation]: about 0.31
Fine adjustment range /rotation [°/rotation]: about 0.41
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.9

Downloads

OSE-MHAN-60S_STP.zip

OSE-MHAN-S_MHA_MHAN-DM.pdf

Holders.zip

Compatible optics diameter [mm]: 20
Compatible optic thickness [mm]: 2 - 6
Clear/input aperture: 12.7
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.54
Fine adjustment range /rotation [°/rotation]: about 0.68
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.15

Downloads

OSE-MHAN-20S-N_STP.zip

OSE-MHAN-S_MHA_MHAN-DM.pdf

Holders.zip

Compatible optics diameter [mm]: 25.4
Compatible optic thickness [mm]: 2 - 6
Clear/input aperture: 16.3
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.54
Fine adjustment range /rotation [°/rotation]: about 0.68
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.25

Downloads

OSE-MHAN-25.4S-N_STP.zip

OSE-MHAN-S_MHA_MHAN-DM.pdf

Holders.zip

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 2 - 6
Clear/input aperture: 23.3
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.54
Fine adjustment range /rotation [°/rotation]: about 0.68
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.25

Downloads

OSE-MHAN-30S-N_STP.zip

OSE-MHAN-S_MHA_MHAN-DM.pdf

Holders.zip

Compatible optics diameter [mm]: 40
Compatible optic thickness [mm]: 2 - 8
Clear/input aperture: 30.4
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.45
Fine adjustment range /rotation [°/rotation]: about 0.55
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.45

Downloads

OSE-MHAN-40S-N_STP.zip

OSE-MHAN-S_MHA_MHAN-DM.pdf

Holders.zip

Compatible optics diameter [mm]: 50
Compatible optic thickness [mm]: 3 - 11
Clear/input aperture: 30.4
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.35
Fine adjustment range /rotation [°/rotation]: about 0.48
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.55

Downloads

OSE-MHAN-50S-N_STP.zip

OSE-MHAN-S_MHA_MHAN-DM.pdf

Holders.zip

Compatible optics diameter [mm]: 50.8
Compatible optic thickness [mm]: 3 - 11
Clear/input aperture: 37.5
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.35
Fine adjustment range /rotation [°/rotation]: about 0.48
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.55

Downloads

OSE-MHAN-50.8S-N_STP.zip

OSE-MHAN-S_MHA_MHAN-DM.pdf

Holders.zip

Compatible optics diameter [mm]: 60
Compatible optic thickness [mm]: 3 - 11
Clear/input aperture: 9.2
Adjustment range tilt ±[mm]: 3
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.31
Fine adjustment range /rotation [°/rotation]: about 0.41
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.75

Downloads

OSE-MHAN-60S-N_STP.zip

OSE-MHAN-S_MHA_MHAN-DM.pdf

Holders.zip

Compatible optics diameter [mm]: 20
Compatible optic thickness [mm]: 2 - 6
Clear/input aperture: 12.7
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.54
Fine adjustment range /rotation [°/rotation]: about 0.68
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.15

Downloads

OSE-MHAN-20S-UU_STP.zip

OSE-MHAN-S_MHA_MHAN-DM.pdf

Holders.zip

Compatible optics diameter [mm]: 25.4
Compatible optic thickness [mm]: 2 - 6
Clear/input aperture: 16.3
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.54
Fine adjustment range /rotation [°/rotation]: about 0.68
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.25

Downloads

OSE-MHAN-25.4S-UU_STP.zip

OSE-MHAN-S_MHA_MHAN-DM.pdf

Holders.zip

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 2 - 6
Clear/input aperture: 23.3
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.54
Fine adjustment range /rotation [°/rotation]: about 0.68
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.25

Downloads

OSE-MHAN-30S-UU_STP.zip

OSE-MHAN-S_MHA_MHAN-DM.pdf

Holders.zip

Compatible optics diameter [mm]: 40
Compatible optic thickness [mm]: 2 - 8
Clear/input aperture: 30.4
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.45
Fine adjustment range /rotation [°/rotation]: about 0.55
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.45

Downloads

OSE-MHAN-40S-UU_STP.zip

OSE-MHAN-S_MHA_MHAN-DM.pdf

Holders.zip

Compatible optics diameter [mm]: 50
Compatible optic thickness [mm]: 3 - 11
Clear/input aperture: 30.4
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.35
Fine adjustment range /rotation [°/rotation]: about 0.48
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.55

Downloads

OSE-MHAN-50S-UU_STP.zip

OSE-MHAN-S_MHA_MHAN-DM.pdf

Holders.zip

Compatible optics diameter [mm]: 50.8
Compatible optic thickness [mm]: 3 - 11
Clear/input aperture: 37.5
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.35
Fine adjustment range /rotation [°/rotation]: about 0.48
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.55

Downloads

OSE-MHAN-50.8S-UU_STP.zip

OSE-MHAN-S_MHA_MHAN-DM.pdf

Holders.zip

Compatible optics diameter [mm]: 60
Compatible optic thickness [mm]: 3 - 11
Adjustment range tilt ±[mm]: 3
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.31
Fine adjustment range /rotation [°/rotation]: about 0.41
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.75

Downloads

OSE-MHAN-60S-UU_STP.zip

OSE-MHAN-S_MHA_MHAN-DM.pdf

Holders.zip
