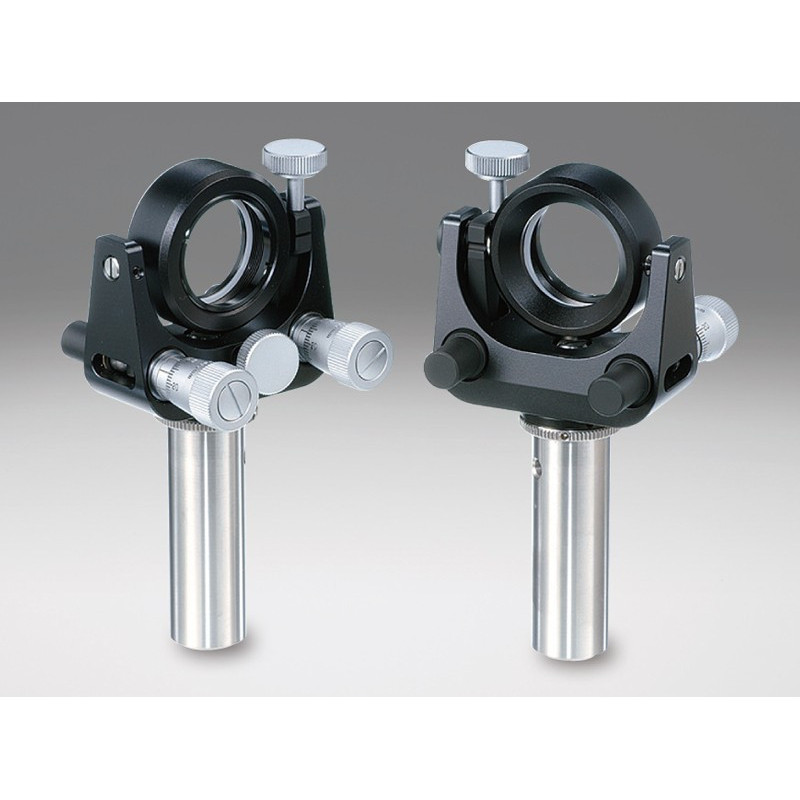

OSE-MHAN-M: Gimballed Mirror Mounts

Reference number: OSE-MHAN-30M

Compatible Optics Diameter

Need more info?
Contact our expert.

Our Team

Description

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 2 - 6
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.54
Fine adjustment range /rotation [°/rotation]: about 0.68
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.4

Downloads

OSE-MHAN-30M_STP.zip

Holders.zip

Compatible optics diameter [mm]: 40
Compatible optic thickness [mm]: 2 - 8
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.45
Fine adjustment range /rotation [°/rotation]: about 0.6
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.6

Downloads

OSE-MHAN-40M_STP.zip

Holders.zip

Compatible optics diameter [mm]: 50
Compatible optic thickness [mm]: 3 - 11
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.35
Fine adjustment range /rotation [°/rotation]: about 0.48
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.7

Downloads

OSE-MHAN-50M_STP.zip

Holders.zip

Compatible optics diameter [mm]: 50.8
Compatible optic thickness [mm]: 3 - 11
Adjustment range tilt ±[mm]: 4
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.35
Fine adjustment range /rotation [°/rotation]: about 0.48
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.7

Downloads

OSE-MHAN-50.8M_STP.zip

Holders.zip

Compatible optics diameter [mm]: 60
Compatible optic thickness [mm]: 3 - 11
Clear/input aperture: 9.2
Adjustment range tilt ±[mm]: 3
Adjustment range rotation ±[mm]: 4
Fine adjustment range /tilt [°/rotation]: about 0.31
Fine adjustment range /rotation [°/rotation]: about 0.41
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.9

Downloads

OSE-MHAN-60M_STP.zip

Holders.zip
