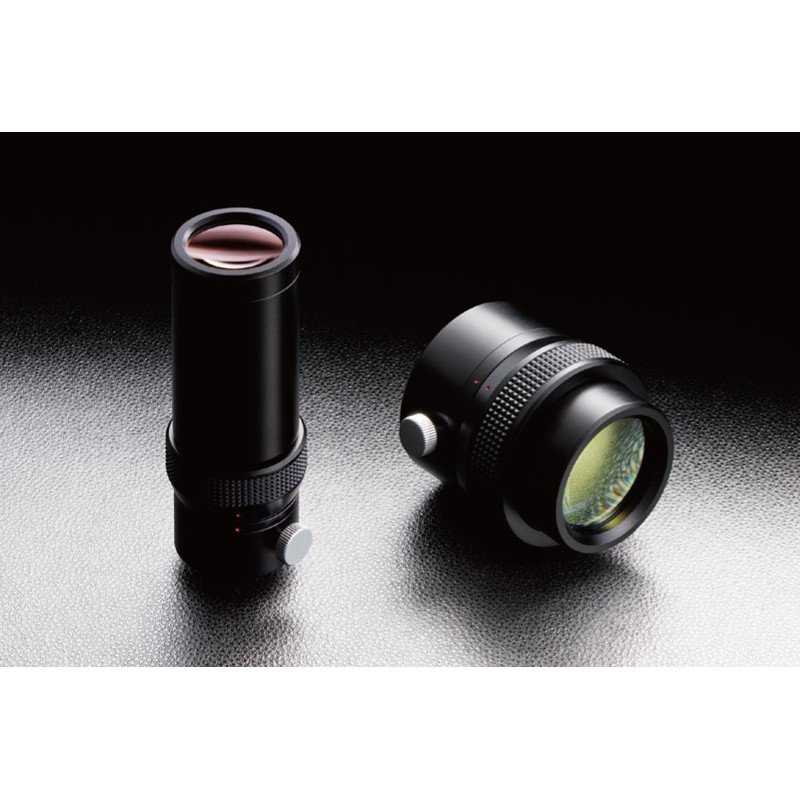

Laser Beam Expander

Reference number: OSE-LBED-3

This is an optical system for expanding a small collimated laser beam to a larger one.

Expansion

Longueur d`onde de conception en nm

Expansion

Longueur d`onde de conception en nm

Besoin de plus d'informations ?
Contactez notre expert.

Notre équipe

Description

ØB [mm]: 36
Diameter D [mm]: 26
Diameter ØE [mm]: 40
Barrel length [mm]: 42,0+3/2
Mounting thread C: M22 P0.75
Weight [kg]: 0.12
Design wavelength [nm]: 400-700
Laser Damage Threshold [J/cm²] : 4
Expansion ratio: 3
Input aperture (MAX) [mm]: 5.4
Primary material: Aluminum
Finish: Black Anodized

Downloads

OSE-LBED-3_STP.zip

OSE-BE_LBED.pdf

Opt(ME-optics).zip

ØB [mm]: 36
Diameter D [mm]: 26
Diameter ØE [mm]: 40
Barrel length [mm]: 50,5±3
Mounting thread C: M22 P0.75
Weight [kg]: 0.12
Design wavelength [nm]: 400-700
Laser Damage Threshold [J/cm²] : 4
Expansion ratio: 5
Input aperture (MAX) [mm]: 3.2
Primary material: Aluminum
Finish: Black Anodized

Downloads

OSE-LBED-5_STP.zip

OSE-BE_LBED.pdf

Opt(ME-optics).zip

ØB [mm]: 36
Diameter D [mm]: 36
Diameter ØE [mm]: 40
Barrel length [mm]: 109,5±3
Mounting thread C: M22 P0.75
Weight [kg]: 0.18
Design wavelength [nm]: 440-700
Laser Damage Threshold [J/cm²] : 4
Expansion ratio: 10
Input aperture (MAX) [mm]: 2.6
Primary material: Aluminum
Finish: Black Anodized

Downloads

OSE-LBED-10_STP.zip

OSE-BE_LBED.pdf

Opt(ME-optics).zip

ØB [mm]: 57
Diameter D [mm]: 48
Diameter ØE [mm]: 60
Barrel length [mm]: 49,0
Mounting thread C: M34 P1
Weight [kg]: 0.3
Design wavelength [nm]: 1064
Laser Damage Threshold [J/cm²] : 4
Expansion ratio: 2
Input aperture (MAX) [mm]: 15.1
Primary material: Aluminum
Finish: Black Anodized

Downloads

OSE-LBED-2Y_STP.zip

OSE-BE_LBED.pdf

Opt(ME-optics).zip

ØB [mm]: 57
Diameter D [mm]: 48
Diameter ØE [mm]: 60
Barrel length [mm]: 64,5±4
Mounting thread C: M34 P1
Weight [kg]: 0.3
Design wavelength [nm]: 1064
Laser Damage Threshold [J/cm²] : 4
Expansion ratio: 3
Input aperture (MAX) [mm]: 10.2
Primary material: Aluminum
Finish: Black Anodized

Downloads

OSE-LBED-3Y_STP.zip

OSE-BE_LBED.pdf

Opt(ME-optics).zip

ØB [mm]: 57
Diameter D [mm]: 48
Diameter ØE [mm]: 60
Barrel length [mm]: 93,5±4
Mounting thread C: M34 P1
Weight [kg]: 0.3
Design wavelength [nm]: 1064
Laser Damage Threshold [J/cm²] : 4
Expansion ratio: 4
Input aperture (MAX) [mm]: 8.6
Primary material: Aluminum
Finish: Black Anodized

Downloads

OSE-LBED-4Y_STP.zip

OSE-BE_LBED.pdf

Opt(ME-optics).zip
