Reference number: ADM-SM-Hera

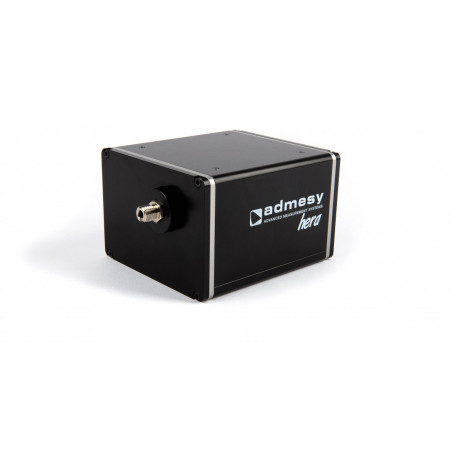

The Hera spectrometer from Admesy provides an accurate UV-VIS spectrometer with auto range function and excellent linearity in a rugged housing of only 95x85x61mm.
Besoin de plus d'informations ?
Contactez notre expert.
Notre équipe
Description
The Hera spectrometer series is a highly accurate spectrometer with auto range function and excellent linearity in a robust and compact housing. Due to this combination the Hera can be used in a broad range of applications varying from R&D research to non-stop use in production environments. The Hera is available with a fixed (lens or cosine corrector) or fiber optics setup covering all you need to start your measurements. The Hera: stuffed with measurement power!
| Model | Hera 01 – VIS |
| Spectral range | 380 - 780 nm |
| Optical resolution (FWHM) | 2.3 nm |
| Order sorting filter | 2nd order sorting filter |
| Wavelength accuracy | +/- 0.5 nm |
| Stray light | <0.03 % |
| Luminance accuracy*2 | +/-4% |
| Chromaticity accuracy*2 | +/- 0.002 |
| Non - Linearity | < 1% |
| Integration time | 2.5 ms – 20 s |
| Spectral resolution | Selectable 0.5 nm - 1 nm - 2.5 nm - 5 nm - 10 nm |
| Interfaces | High speed USB, RS232, Ethernet, Trigger connections |
| Measurement parameters | Spectral output, radiometric data or colour data (Lumen, x,y, DWL, PWL, CRI, CCT, etc.) |
| Data processing time | 14 ms |
| Size (L x W x H) | 95 x 81 x 61mm (without optical system) |
| Weight | 650 gram |
| Operating temperature | 10 - 35 °C |
| Power consumption | 1250 mW |
| Luminance range | 0.05 – 6000 cd/m² |
| Wavelength accuracy | +/- 0.5 nm |
| Luminance accuracy (measured at standard illuminant A) | +/-4% |
| Colour accuracy (measured at standard illuminant A) | +/-0.002 |
