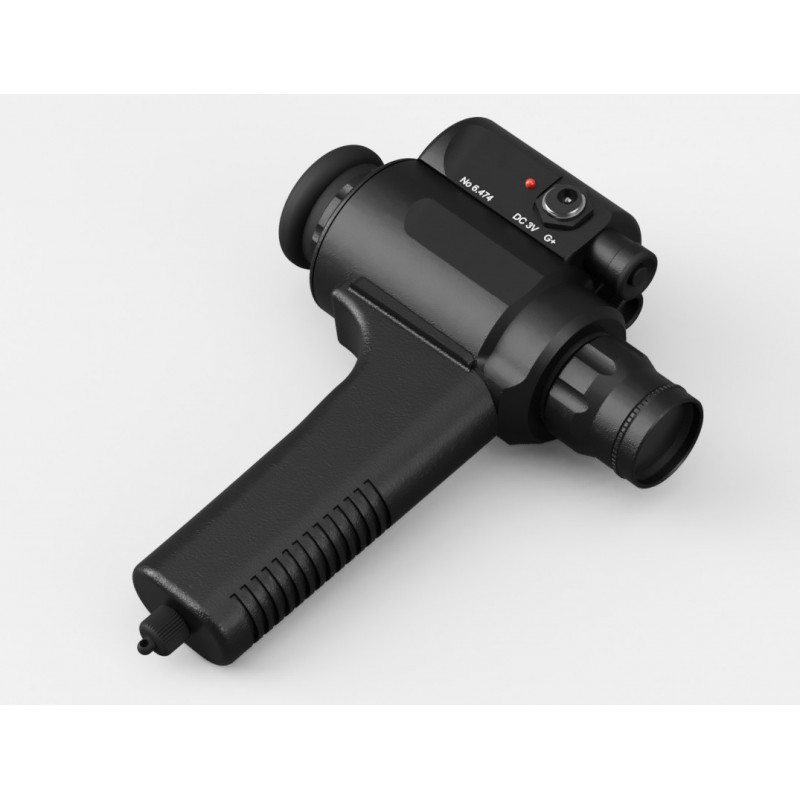

IR-VIewer, 2x, 350-2000 nm

search

Reference number: IRV-VIR-2000-2

High performance image conversion infrared (IR) viewers based on high-grade image converter are designed to observe indirect radiation of infrared laser, light emitting diodes (LED), dye and other IR-sources in 350 – 2000 nm spectral range.

alt

Need more info?
Contact our expert.

Our Team

Description

Infrared (IR) viewers ABRIS M

Main features:

  • Resolution 60 Lp/mm
  • Hand-held / post mounted
  • Battery + DC powered
  • Up to 35 hours continuous working
  • Pulsed and CW light detection
  • PC connection via video adapter
  • 2 years warranty

Application examples:

  • Laser alignment and safety
  • Semiconductor inspection
  • Forensics and art restoration
  • Photo processing
  • Thermal imaging

Specifications:

  • Resolution (centre): 60 Lp/mm
  • Working distance of lens: 12.5 (+/-0.2) mm
  • Battery: 1.5V, 1x “AAA” size
  • Non-uniformity of screen: <20%
  • Non-uniformity of response: <15%
  • Distortion of image: <18%
  • Battery life (continuous): 35 hours
  • External power supply: DC 3V, 30 mA
  • Weight: 0.4kg
  • Dimensions: 140x78x52 mm
  • Temperature range: -10ºC…40º?
  • Tripod or handle connection: R”1/4"
  • Spectral Sensitivity: 350 - 2000 nm
  • Field of View: 20°
  • Magnification: 2x
  • Objective Lens: F1.8 / 50 mm
  • Adjustable Iris: Available
  • Focus: 0.5 m (0.15 m) to inf. (with distance ring)
