Multimode Isolator

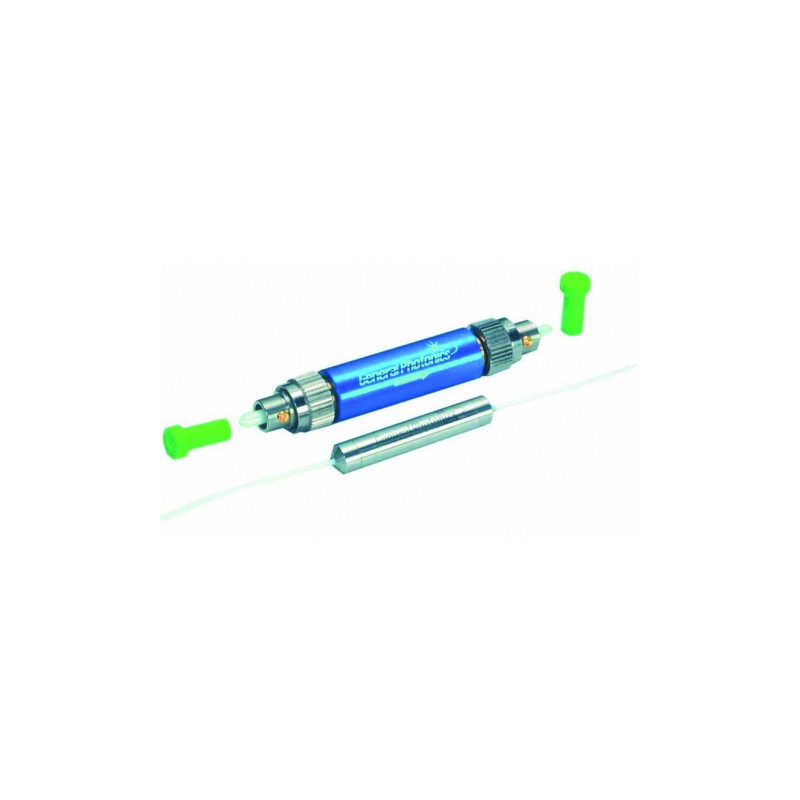

The ISO Multimode Polarization Insensitive Isolator features low insertion loss, high isolation, high return loss and excellent stability and reliability in a compact package. It is ideal for suppressing back reflection and backscattering in fiber lasers and other high performance laser based fiber optic systems.


Applications

• Fiber optic amplifier
• WDM systems
• Transmitters and fiber lasers
• R&D laboratories

Specifications

Center Wavelength	1310 or 1550 nm
Operating Bandwidth	± 20 nm
Typical Peak Isolation	50 dB
Min. Isolation at 23°C	42 dB
Insertion Loss (Typical) at 23°C	0.5 dB
Insertion Loss (Max.) (-5 to 70°C)	0.6 dB
Min. Return Loss (Input/Output)	40/40 dB
Max. TDL	0.15 dB
Optical Power Handling	300 mW
Max. Tensile Load	5 N
Operating Temperature	-5 ~ 70 °C
Storage Temperature	-40 ~ 85 °C
Fiber Type	Multimode fiber 62.5/125/250 or 50/125/250 µm
Dimensions	Ø 5.5 x 62 mm
