Reference number: RES-CM-Pika-IR+

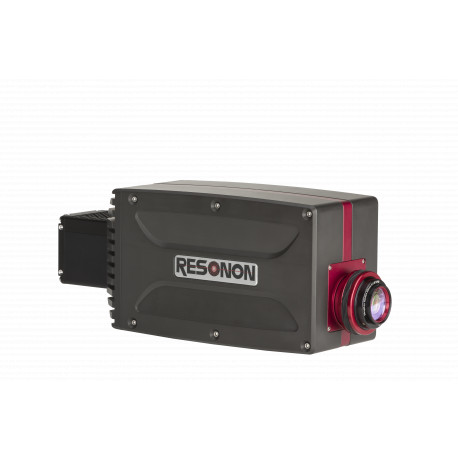

The high-resolution near infrared hyperspectral imaging camera Pika IR + by Resonon can cover a spectral range between 900 - 1700 nm
Besoin de plus d'informations ?
Contactez notre expert.
Notre équipe
Description
Resonon´s hyperspectral imaging cameras can be operated using SpectrononPro software, which controls the cameras and scanning stage and has many tools to analyze hyperspectral data.SpectrononPro also has capability to accept user-written plugins, allowing the user to integrate custom data-analysis algorithms into SpectrononPro.
A free version of SpectrononPro, along with sample datacubes is available.
A C++ Software Development Kit is available for customers who want to integrate Resonon hyperspectral cameras into their own software system. Available in Windows and Linux.
The Pika NIR-640 near-infrared hyperspectral imaging camera covers the 900 - 1700 nm spectral
| Spectral Range | 900 - 1700 nm |
| Spectral Resolution | 2.5 nm |
| Spectral Channels | 328 |
| Dispersion per Pixel = Spectral Sampling | 2.5 nm |
| Spectral Pixels | 328 |
| Spatial Channels | 640 |
| Max Frame Rate | 249 fps |
| Bit Depth | 14 |
| Connection Options | GigE |
| Power Requirements | 12V, 5A |
| Weight | 5.9 lbs, 2.7 kgs |
| Dimensions (in) | 4.3 x 11.7 x 3.5 |
| Dimensions (cm) | 11.0 x 29.6 x 8.9 |
| Operating Temperature | 41-104 F, 5-40 C |
| f / # | f / 1.8 |
| Avg. RMS Spot Radius | 10 µm |
| Smile (peak to peak) | 10 µm |
| Keystone (peak to peak) | 10 µm |
| Pixel size | 15 µm |
Standard objective lens options - Pika NIR-640
| Focal Length (mm) | FOV (deg) | IFOV (mrad) |
| 75 | 7.3 | 0.2 |
| 50 | 11 | 0.3 |
| 25 | 21.7 | 0.6 |
| 6 | 88.8 | 2.5 |
Other objective lenses are available. Please contact us to discuss your requirements.
