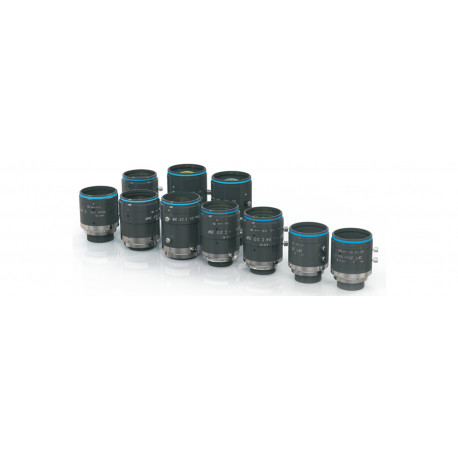

2 MP Fixed Focal Length Lenses

OPT 2 MP-Objektive mit fester Brennweite
search
  • OPT 2 MP-Objektive mit fester Brennweite

Reference number: OPT-2MP-FF

alt

Besoin de plus d'informations ?
Contactez notre expert.

Notre équipe

Description

Product Features:

  • Professional grade design, stable quality, and optical performance
  • High resolution optical design, compatible with mainstream 2 MP industrial cameras, suitable for a pixel sizes of 5.5 µm and above, and 2 MP cameras with sensor size of 2/3’’.
  • The highest resolution is 1000 lp / mm to get image sharpness.
  • High uniformity: Use wide-angle lens to control the attenuation of the edge light and get a whole, bright, sharp image
  • Broad spectrum: Wide spectrum, high pass, 400 – 1000 nm, compatible with VIS and NIR bands.




Part number

Focal length [mm]

Aperture range

WD [mm]

Distortion

Matching chip

OPT-C0420-2M

4

2.0 ~ 16

100 - 8

< 1.6 %

1/3’’, 1/2.5’’, 1/2’’

OPT-C0620-2M

6

2.0 ~ 16

100 - 8

< 1.2 %

1/3’’, 1/2.5’’, 1/2’’

OPT-C0814-2M

8

1.4 ~ 16

100 - 8

< 0.8 %

1/3’’, 1/2.5’’, 1/1.8’’, 2/3’’

OPT-C01214-2M

12

1.4 ~ 16

100 - 8

< 0.9 %

1/3’’, 1/2.5’’, 1/1.8’’, 2/3’’

OPT-C1614-2M

16

1.4 ~ 16

100 - 8

< 0.8 %

1/3’’, 1/2.5’’, 1/1.8’’, 2/3’’

OPT-C2514-2M

25

1.4 ~ 16

180 - 8

< 0.45 %

1/3’’, 1/2.5’’, 1/1.8’’, 2/3’’

OPT-C3516-2M

35

1.6 ~ 16

250 - 8

< 0.25 %

1/3’’, 1/2.5’’, 1/1.8’’, 2/3’’

OPT-C5024-2M

50

2.4 ~ 22

500 - 8

< 0.1 %

1/3’’, 1/2.5’’, 1/1.8’’, 2/3’’

OPT-C7528-2M

75

2.8 ~ 32

700 - 8

< 0.02 %

1/3’’, 1/2.5’’, 1/1.8’’, 2/3’’

OPT-C10028-2M

100

2.8 ~ 32

2700 - 8

< 0.05 %

1/3’’, 1/2.5’’, 1/1.8’’, 2/3’’
