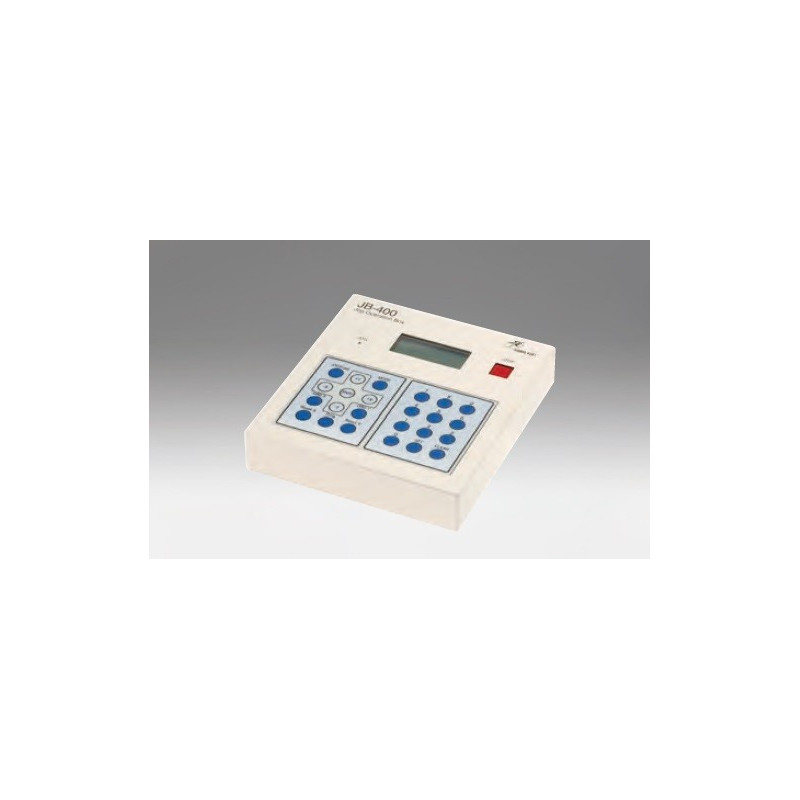

Jog Operation Box

Description

• Cable:

• • MDR14-CA-2.5 (purchase separately)

• Display:

• • LCD (16 digits x 4 lines)

• External Dimensions [WxHxDmm]:

• • 178x38x195

• Weight [kg]:

• • 0.7

• LCD Panel:

• • Display digits: 16 digits x 4 lines

• MODE Button:

• • Switches between SHOT-302GS/SHOT-304GS modes.

• Program Button:

• • Executes SHOT-302GS/SHOT-304GS internal programs

• ORG X/Y Button:

• • Returns X/Y axis to machine origin

• Reset X/Y Button:

• • Sets theoretical (electric) origin of X/Y axis

• SPEED Button:

• Switches the travel speed (4 stages) set with SHOT-302GS/SHOT-304GS
