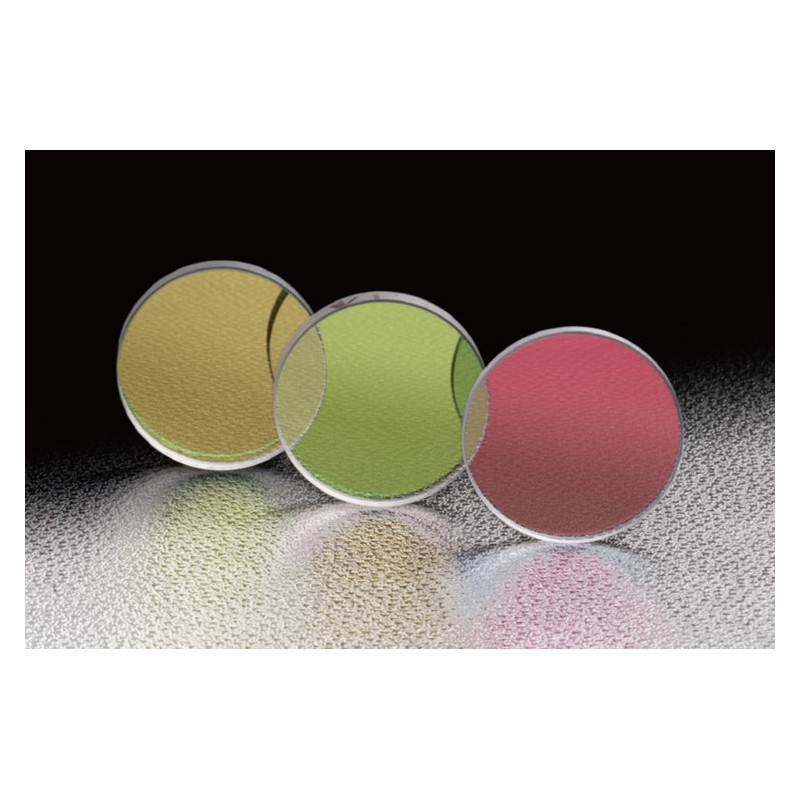

Laser Line Plate Half Mirrors

Reference number: OSE-PSMH-30C03-P-157

Laser line plate mirrors are plate beamsplitters optically coated on the front side of optical parallels or wedge-shaped substrates with a dielectric multilayer coating.

Wavelength Range in nm

Diameter in mm

Thickness in mm

Wavelength Range in nm

Diameter in mm

Thickness in mm

Need more info?
Contact our expert.

Our Team

Description

Surface flatness of substrate: λ/10
Coating: Front surface: Dielectric multi-layer coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Wavelength Range [nm]: 5
Diameter D [mm]: 30
Thickness t [mm]: 3
Material: CaF2
Reflectance:R;Transmittance [%] : R=40±10
Parallelism W: <3
Surface flatness of substrate: λ/10
Coating: Front surface: Dielectric multi-layer coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0.5
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PSMH-Laser-Line.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 5
Diameter D [mm]: 50
Thickness t [mm]: 5
Material: CaF2
Reflectance:R;Transmittance [%] : R=40±10
Parallelism W: <3
Surface flatness of substrate: λ/10
Coating: Front surface: Dielectric multi-layer coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0.5
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PSMH-Laser-Line.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 193
Diameter D [mm]: 30
Thickness t [mm]: 3
Material: Synthetic fused silica
Reflectance:R;Transmittance [%] : 45±5
Parallelism W: 5
Surface flatness of substrate: λ/10
Coating: Front surface: Dielectric multi-layer partial refection coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 1
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PSMH-Laser-Line.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 193
Diameter D [mm]: 30
Thickness t [mm]: 5
Material: Synthetic fused silica
Reflectance:R;Transmittance [%] : 45±5
Parallelism W: 1°±5
Surface flatness of substrate: λ/10
Coating: Front surface: Dielectric multi-layer partial refection coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 1
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PSMH-Laser-Line.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 193
Diameter D [mm]: 50
Thickness t [mm]: 5
Material: Synthetic fused silica
Reflectance:R;Transmittance [%] : 45±5
Parallelism W: 5
Surface flatness of substrate: λ/10
Coating: Front surface: Dielectric multi-layer partial refection coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 1
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PSMH-Laser-Line.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 193
Diameter D [mm]: 50
Thickness t [mm]: 8
Material: Synthetic fused silica
Reflectance:R;Transmittance [%] : 45±5
Parallelism W: 1°±5
Surface flatness of substrate: λ/10
Coating: Front surface: Dielectric multi-layer partial refection coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 1
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PSMH-Laser-Line.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 248 - 266
Diameter D [mm]: 30
Thickness t [mm]: 3
Material: Synthetic fused silica
Reflectance:R;Transmittance [%] : 50±3
Parallelism W: 5
Surface flatness of substrate: λ/10
Coating: Front surface: Dielectric multi-layer partial refection coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 2
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PSMH-Laser-Line.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 248 - 266
Diameter D [mm]: 30
Thickness t [mm]: 5
Material: Synthetic fused silica
Reflectance:R;Transmittance [%] : 50±3
Parallelism W: 1°±5
Surface flatness of substrate: λ/10
Coating: Front surface: Dielectric multi-layer partial refection coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 2
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PSMH-Laser-Line.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 248 - 266
Diameter D [mm]: 50
Thickness t [mm]: 5
Material: Synthetic fused silica
Reflectance:R;Transmittance [%] : 50±3
Parallelism W: 5
Surface flatness of substrate: λ/10
Coating: Front surface: Dielectric multi-layer partial refection coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 2
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PSMH-Laser-Line.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 248 - 266
Diameter D [mm]: 50
Thickness t [mm]: 8
Material: Synthetic fused silica
Reflectance:R;Transmittance [%] : 50±3
Parallelism W: 1°±5
Surface flatness of substrate: λ/10
Coating: Front surface: Dielectric multi-layer partial refection coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 2
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PSMH-Laser-Line.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 308 - 355
Diameter D [mm]: 30
Material: Synthetic fused silica
Reflectance:R;Transmittance [%] : Average 50±5
Parallelism W: 5
Surface flatness of substrate: λ/10
Coating: Front surface: Dielectric multi-layer partial refection coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 2
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PSMH-Laser-Line.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 308 - 355
Diameter D [mm]: 30
Material: Synthetic fused silica
Reflectance:R;Transmittance [%] : Average 50±5
Parallelism W: 1°±5
Surface flatness of substrate: λ/10
Coating: Front surface: Dielectric multi-layer partial refection coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 2
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PSMH-Laser-Line.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 308 - 355
Diameter D [mm]: 50
Material: Synthetic fused silica
Reflectance:R;Transmittance [%] : Average 50±5
Parallelism W: 5
Surface flatness of substrate: λ/10
Coating: Front surface: Dielectric multi-layer partial refection coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 2
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PSMH-Laser-Line.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 308 - 355
Diameter D [mm]: 50
Material: Synthetic fused silica
Reflectance:R;Transmittance [%] : Average 50±5
Parallelism W: 1°±5
Surface flatness of substrate: λ/10
Coating: Front surface: Dielectric multi-layer partial refection coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 2
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PSMH-Laser-Line.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 390 - 410
Diameter D [mm]: 30
Material: BK7
Reflectance:R;Transmittance [%] : 50±3
Parallelism W: 1°±5
Surface flatness of substrate: λ/10
Coating: Front surface: Dielectric multi-layer partial refection coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 2.1
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PSMH-Laser-Line.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 390 - 410
Diameter D [mm]: 50
Material: BK7
Reflectance:R;Transmittance [%] : 50±3
Parallelism W: 5
Surface flatness of substrate: λ/10
Coating: Front surface: Dielectric multi-layer partial refection coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 2.1
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PSMH-Laser-Line.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 390 - 410
Diameter D [mm]: 50
Material: BK7
Reflectance:R;Transmittance [%] : 50±3
Parallelism W: 1°±5
Surface flatness of substrate: λ/10
Coating: Front surface: Dielectric multi-layer partial refection coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 2.1
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PSMH-Laser-Line.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 1064
Diameter D [mm]: 30
Material: BK7
Reflectance:R;Transmittance [%] : 50±3
Parallelism W: 5
Surface flatness of substrate: λ/10
Coating: Front surface: Dielectric multi-layer partial refection coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 20
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PSMH-Laser-Line.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 1064
Diameter D [mm]: 30
Material: BK7
Reflectance:R;Transmittance [%] : 50±3
Parallelism W: 1°±5
Surface flatness of substrate: λ/10
Coating: Front surface: Dielectric multi-layer partial refection coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 20
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PSMH-Laser-Line.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 1064
Diameter D [mm]: 50
Material: BK7
Reflectance:R;Transmittance [%] : 50±3
Parallelism W: 5
Surface flatness of substrate: λ/10
Coating: Front surface: Dielectric multi-layer partial refection coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 20
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PSMH-Laser-Line.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 1064
Diameter D [mm]: 50
Material: BK7
Reflectance:R;Transmittance [%] : 50±3
Parallelism W: 1°±5
Surface flatness of substrate: λ/10
Coating: Front surface: Dielectric multi-layer partial refection coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 20
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PSMH-Laser-Line.xls

Opt_Beamsplitters_.zip
