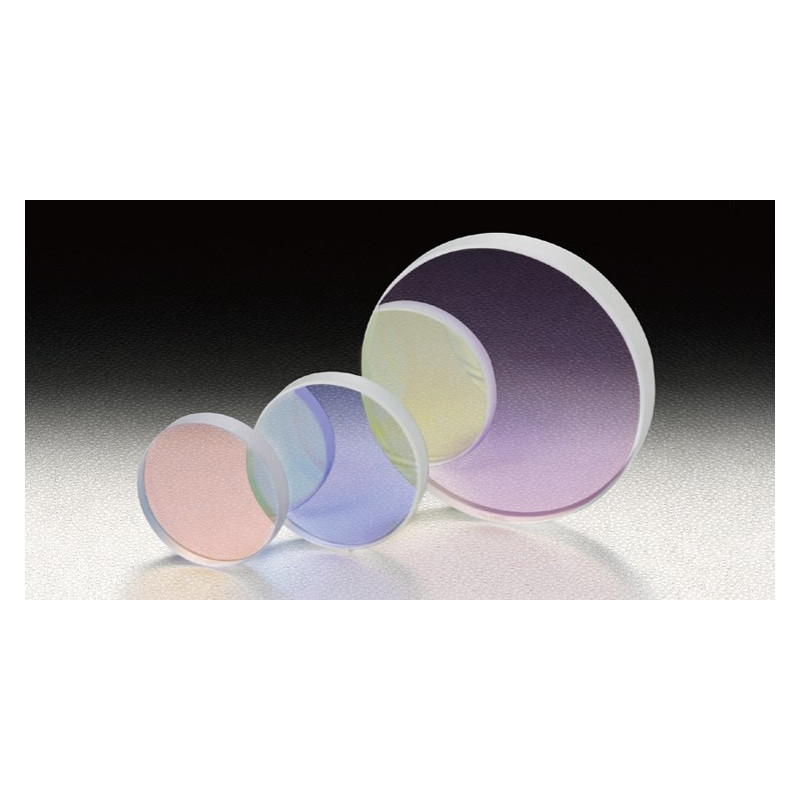

Ultra Broadband Dielectric Half Mirrors

Reference number: OSE-PMH-25.4C03-10-25/7

These half mirrors have 4 types of ultra-wideband optics suitable for UV to IR applications.

Gamme de longueurs d`onde en nm

Diamètre en mm

Gamme de longueurs d`onde en nm

Diamètre en mm

Besoin de plus d'informations ?
Contactez notre expert.

Notre équipe

Description

Parallelism W: 5
Surface flatness of substrate: ?/10
Coating: Front surface: Dielectric multi-layer coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0.5
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Wavelength Range [nm]: 250 - 700
Diameter D [mm]: 25.4
Thickness t [mm]: 3
Material: Synthetic fused sillica
Reflectance:R;Transmittance [%] : Average 50±10
Parallelism W: 5
Surface flatness of substrate: ?/10
Coating: Front surface: Dielectric multi-layer coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0.5
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PMH.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 250 - 700
Diameter D [mm]: 30
Thickness t [mm]: 3
Material: Synthetic fused sillica
Reflectance:R;Transmittance [%] : Average 50±10
Parallelism W: 5
Surface flatness of substrate: ?/10
Coating: Front surface: Dielectric multi-layer coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0.5
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PMH.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 250 - 700
Diameter D [mm]: 50
Thickness t [mm]: 5
Material: Synthetic fused sillica
Reflectance:R;Transmittance [%] : Average 50±10
Parallelism W: 5
Surface flatness of substrate: ?/10
Coating: Front surface: Dielectric multi-layer coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0.5
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PMH.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 300 - 1000
Diameter D [mm]: 25.4
Thickness t [mm]: 3
Material: Synthetic fused sillica
Reflectance:R;Transmittance [%] : Average 50±10
Parallelism W: 5
Surface flatness of substrate: ?/10
Coating: Front surface: Dielectric multi-layer coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0.5
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PMH.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 300 - 1000
Diameter D [mm]: 30
Thickness t [mm]: 3
Material: Synthetic fused sillica
Reflectance:R;Transmittance [%] : Average 50±10
Parallelism W: 5
Surface flatness of substrate: ?/10
Coating: Front surface: Dielectric multi-layer coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0.5
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PMH.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 300 - 1000
Diameter D [mm]: 50
Thickness t [mm]: 5
Material: Synthetic fused sillica
Reflectance:R;Transmittance [%] : Average 50±10
Parallelism W: 5
Surface flatness of substrate: ?/10
Coating: Front surface: Dielectric multi-layer coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0.5
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PMH.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 600 - 1800
Diameter D [mm]: 25.4
Thickness t [mm]: 3
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±10
Parallelism W: 5
Surface flatness of substrate: ?/10
Coating: Front surface: Dielectric multi-layer coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0.5
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PMH.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 600 - 1800
Diameter D [mm]: 30
Thickness t [mm]: 3
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±10
Parallelism W: 5
Surface flatness of substrate: ?/10
Coating: Front surface: Dielectric multi-layer coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0.5
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PMH.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 600 - 1800
Diameter D [mm]: 50
Thickness t [mm]: 5
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±10
Parallelism W: 5
Surface flatness of substrate: ?/10
Coating: Front surface: Dielectric multi-layer coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0.5
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PMH.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 400 - 2000
Diameter D [mm]: 25.4
Thickness t [mm]: 3
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±10
Parallelism W: 5
Surface flatness of substrate: ?/10
Coating: Front surface: Dielectric multi-layer coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0.5
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PMH.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 400 - 2000
Diameter D [mm]: 30
Thickness t [mm]: 3
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±10
Parallelism W: 5
Surface flatness of substrate: ?/10
Coating: Front surface: Dielectric multi-layer coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0.5
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture

Downloads

OSE-PMH_PSMH.pdf

PMH.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 400 - 2000
Diameter D [mm]: 50
Thickness t [mm]: 5
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±10
Parallelism W: 5
Surface flatness of substrate: ?/10
Coating: Front surface: Dielectric multi-layer coating Rear surface: Multi-layer anti-reflection coating
Incident angle [°]: 45
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0.5
Surface Quality (Scratch-Dig): 10-5
Clear aperture: 90% of actual aperture
