Dielectric Cube Half Mirrors

Reference number: OSE-CSMH-10-405

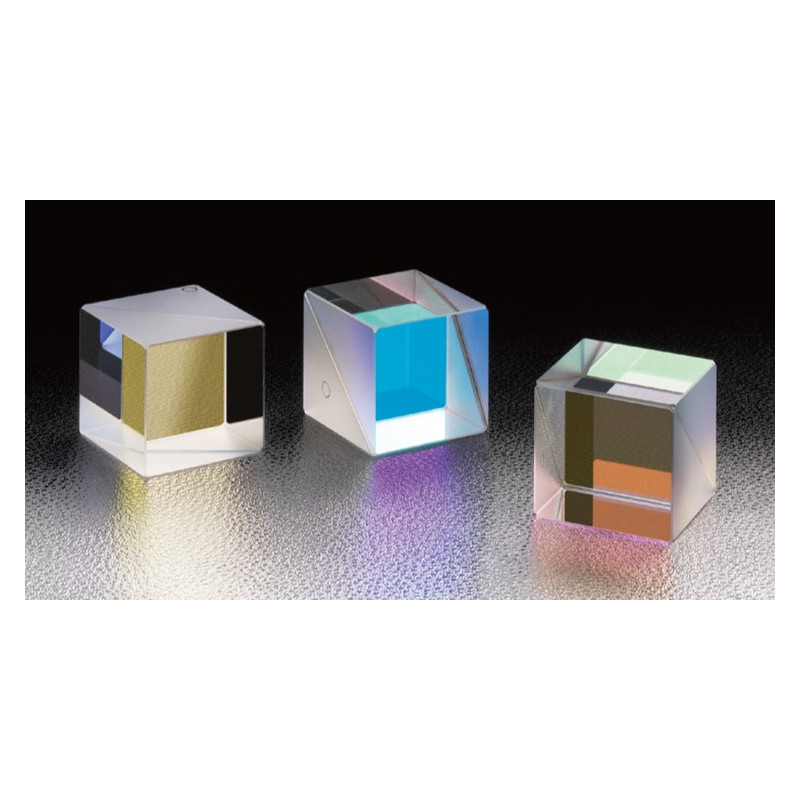

Dielectric cube half mirrors consist of two right-angled prisms. One of them is coated with a dielectric multilayer partial reflection layer on the hypotenuse surface.

Gamme de longueurs d`onde en nm

A - B - C en mm

Gamme de longueurs d`onde en nm

A - B - C en mm

Besoin de plus d'informations ?
Contactez notre expert.

Notre équipe

Description

Material: BK7
Surface flatness of substrate: ?/4
Beam Deviation: 5
Coating: Hypotenuse surface: Dielectric multi-layer coating Four surfaces: Multi-layer anti-reflection coating
Incident angle [°]: 0
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0,3
Surface Quality (Scratch-Dig): 20-10
Clear aperture: 85% of circle to actual dimension (80% of actual aperture for 5 and 7mm dimension (A=B=C) products.)

Wavelength Range [nm]: 390 - 410
A=B=C [mm]: 10
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±3
Surface flatness of substrate: ?/4
Beam Deviation: 5
Coating: Hypotenuse surface: Dielectric multi-layer coating Four surfaces: Multi-layer anti-reflection coating
Incident angle [°]: 0
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0,3
Surface Quality (Scratch-Dig): 20-10
Clear aperture: 85% of circle to actual dimension (80% of actual aperture for 5 and 7mm dimension (A=B=C) products.)

Downloads

OSE-CSMH.pdf

CSMH-405-Average.xls

CSMH-405-P-polarization.xls

CSMH-405-S-polarization.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 390 - 410
A=B=C [mm]: 12.7
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±3
Surface flatness of substrate: ?/4
Beam Deviation: 5
Coating: Hypotenuse surface: Dielectric multi-layer coating Four surfaces: Multi-layer anti-reflection coating
Incident angle [°]: 0
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0,3
Surface Quality (Scratch-Dig): 20-10
Clear aperture: 85% of circle to actual dimension (80% of actual aperture for 5 and 7mm dimension (A=B=C) products.)

Downloads

OSE-CSMH.pdf

CSMH-405-Average.xls

CSMH-405-P-polarization.xls

CSMH-405-S-polarization.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 390 - 410
A=B=C [mm]: 15
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±3
Surface flatness of substrate: ?/4
Beam Deviation: 5
Coating: Hypotenuse surface: Dielectric multi-layer coating Four surfaces: Multi-layer anti-reflection coating
Incident angle [°]: 0
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0,3
Surface Quality (Scratch-Dig): 20-10
Clear aperture: 85% of circle to actual dimension (80% of actual aperture for 5 and 7mm dimension (A=B=C) products.)

Downloads

OSE-CSMH.pdf

CSMH-405-Average.xls

CSMH-405-P-polarization.xls

CSMH-405-S-polarization.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 390 - 410
A=B=C [mm]: 20
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±3
Surface flatness of substrate: ?/4
Beam Deviation: 5
Coating: Hypotenuse surface: Dielectric multi-layer coating Four surfaces: Multi-layer anti-reflection coating
Incident angle [°]: 0
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0,3
Surface Quality (Scratch-Dig): 20-10
Clear aperture: 85% of circle to actual dimension (80% of actual aperture for 5 and 7mm dimension (A=B=C) products.)

Downloads

OSE-CSMH.pdf

CSMH-405-Average.xls

CSMH-405-P-polarization.xls

CSMH-405-S-polarization.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 390 - 410
A=B=C [mm]: 25
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±3
Surface flatness of substrate: ?/4
Beam Deviation: 5
Coating: Hypotenuse surface: Dielectric multi-layer coating Four surfaces: Multi-layer anti-reflection coating
Incident angle [°]: 0
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0,3
Surface Quality (Scratch-Dig): 20-10
Clear aperture: 85% of circle to actual dimension (80% of actual aperture for 5 and 7mm dimension (A=B=C) products.)

Downloads

OSE-CSMH.pdf

CSMH-405-Average.xls

CSMH-405-P-polarization.xls

CSMH-405-S-polarization.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 390 - 410
A=B=C [mm]: 30
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±3
Surface flatness of substrate: ?/4
Beam Deviation: 5
Coating: Hypotenuse surface: Dielectric multi-layer coating Four surfaces: Multi-layer anti-reflection coating
Incident angle [°]: 0
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0,3
Surface Quality (Scratch-Dig): 20-10
Clear aperture: 85% of circle to actual dimension (80% of actual aperture for 5 and 7mm dimension (A=B=C) products.)

Downloads

OSE-CSMH.pdf

CSMH-405-Average.xls

CSMH-405-P-polarization.xls

CSMH-405-S-polarization.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 400 - 700
A=B=C [mm]: 5
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±5
Surface flatness of substrate: ?/4
Beam Deviation: 5
Coating: Hypotenuse surface: Dielectric multi-layer coating Four surfaces: Multi-layer anti-reflection coating
Incident angle [°]: 0
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0,3
Surface Quality (Scratch-Dig): 20-10
Clear aperture: 85% of circle to actual dimension (80% of actual aperture for 5 and 7mm dimension (A=B=C) products.)

Downloads

OSE-CSMH.pdf

CSMH-550-Average.xls

CSMH-550-P-polarization.xls

CSMH-550-S-polarization.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 400 - 700
A=B=C [mm]: 7
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±5
Surface flatness of substrate: ?/4
Beam Deviation: 5
Coating: Hypotenuse surface: Dielectric multi-layer coating Four surfaces: Multi-layer anti-reflection coating
Incident angle [°]: 0
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0,3
Surface Quality (Scratch-Dig): 20-10
Clear aperture: 85% of circle to actual dimension (80% of actual aperture for 5 and 7mm dimension (A=B=C) products.)

Downloads

OSE-CSMH.pdf

CSMH-550-Average.xls

CSMH-550-P-polarization.xls

CSMH-550-S-polarization.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 400 - 700
A=B=C [mm]: 10
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±5
Surface flatness of substrate: ?/4
Beam Deviation: 5
Coating: Hypotenuse surface: Dielectric multi-layer coating Four surfaces: Multi-layer anti-reflection coating
Incident angle [°]: 0
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0,3
Surface Quality (Scratch-Dig): 20-10
Clear aperture: 85% of circle to actual dimension (80% of actual aperture for 5 and 7mm dimension (A=B=C) products.)

Downloads

OSE-CSMH.pdf

CSMH-550-Average.xls

CSMH-550-P-polarization.xls

CSMH-550-S-polarization.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 400 - 700
A=B=C [mm]: 12.7
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±5
Surface flatness of substrate: ?/4
Beam Deviation: 5
Coating: Hypotenuse surface: Dielectric multi-layer coating Four surfaces: Multi-layer anti-reflection coating
Incident angle [°]: 0
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0,3
Surface Quality (Scratch-Dig): 20-10
Clear aperture: 85% of circle to actual dimension (80% of actual aperture for 5 and 7mm dimension (A=B=C) products.)

Downloads

OSE-CSMH.pdf

CSMH-550-Average.xls

CSMH-550-P-polarization.xls

CSMH-550-S-polarization.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 400 - 700
A=B=C [mm]: 15
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±5
Surface flatness of substrate: ?/4
Beam Deviation: 5
Coating: Hypotenuse surface: Dielectric multi-layer coating Four surfaces: Multi-layer anti-reflection coating
Incident angle [°]: 0
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0,3
Surface Quality (Scratch-Dig): 20-10
Clear aperture: 85% of circle to actual dimension (80% of actual aperture for 5 and 7mm dimension (A=B=C) products.)

Downloads

OSE-CSMH.pdf

CSMH-550-Average.xls

CSMH-550-P-polarization.xls

CSMH-550-S-polarization.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 400 - 700
A=B=C [mm]: 20
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±5
Surface flatness of substrate: ?/4
Beam Deviation: 5
Coating: Hypotenuse surface: Dielectric multi-layer coating Four surfaces: Multi-layer anti-reflection coating
Incident angle [°]: 0
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0,3
Surface Quality (Scratch-Dig): 20-10
Clear aperture: 85% of circle to actual dimension (80% of actual aperture for 5 and 7mm dimension (A=B=C) products.)

Downloads

OSE-CSMH.pdf

CSMH-550-Average.xls

CSMH-550-P-polarization.xls

CSMH-550-S-polarization.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 400 - 700
A=B=C [mm]: 25
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±5
Surface flatness of substrate: ?/4
Beam Deviation: 5
Coating: Hypotenuse surface: Dielectric multi-layer coating Four surfaces: Multi-layer anti-reflection coating
Incident angle [°]: 0
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0,3
Surface Quality (Scratch-Dig): 20-10
Clear aperture: 85% of circle to actual dimension (80% of actual aperture for 5 and 7mm dimension (A=B=C) products.)

Downloads

OSE-CSMH.pdf

CSMH-550-Average.xls

CSMH-550-P-polarization.xls

CSMH-550-S-polarization.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 400 - 700
A=B=C [mm]: 30
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±5
Surface flatness of substrate: ?/4
Beam Deviation: 5
Coating: Hypotenuse surface: Dielectric multi-layer coating Four surfaces: Multi-layer anti-reflection coating
Incident angle [°]: 0
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0,3
Surface Quality (Scratch-Dig): 20-10
Clear aperture: 85% of circle to actual dimension (80% of actual aperture for 5 and 7mm dimension (A=B=C) products.)

Downloads

OSE-CSMH.pdf

CSMH-550-Average.xls

CSMH-550-P-polarization.xls

CSMH-550-S-polarization.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 400 - 700
A=B=C [mm]: 40
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±5
Surface flatness of substrate: ?/4
Beam Deviation: 5
Coating: Hypotenuse surface: Dielectric multi-layer coating Four surfaces: Multi-layer anti-reflection coating
Incident angle [°]: 0
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0,3
Surface Quality (Scratch-Dig): 20-10
Clear aperture: 85% of circle to actual dimension (80% of actual aperture for 5 and 7mm dimension (A=B=C) products.)

Downloads

OSE-CSMH.pdf

CSMH-550-Average.xls

CSMH-550-P-polarization.xls

CSMH-550-S-polarization.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 400 - 700
A=B=C [mm]: 50
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±5
Surface flatness of substrate: ?/4
Beam Deviation: 5
Coating: Hypotenuse surface: Dielectric multi-layer coating Four surfaces: Multi-layer anti-reflection coating
Incident angle [°]: 0
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0,3
Surface Quality (Scratch-Dig): 20-10
Clear aperture: 85% of circle to actual dimension (80% of actual aperture for 5 and 7mm dimension (A=B=C) products.)

Downloads

OSE-CSMH.pdf

CSMH-550-Average.xls

CSMH-550-P-polarization.xls

CSMH-550-S-polarization.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 750 - 850
A=B=C [mm]: 5
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±5
Surface flatness of substrate: ?/4
Beam Deviation: 5
Coating: Hypotenuse surface: Dielectric multi-layer coating Four surfaces: Multi-layer anti-reflection coating
Incident angle [°]: 0
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0,3
Surface Quality (Scratch-Dig): 20-10
Clear aperture: 85% of circle to actual dimension (80% of actual aperture for 5 and 7mm dimension (A=B=C) products.)

Downloads

OSE-CSMH.pdf

CSMH-800-Average.xls

CSMH-800-P-polarization.xls

CSMH-800-S-polarization.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 750 - 850
A=B=C [mm]: 10
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±5
Surface flatness of substrate: ?/4
Beam Deviation: 5
Coating: Hypotenuse surface: Dielectric multi-layer coating Four surfaces: Multi-layer anti-reflection coating
Incident angle [°]: 0
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0,3
Surface Quality (Scratch-Dig): 20-10
Clear aperture: 85% of circle to actual dimension (80% of actual aperture for 5 and 7mm dimension (A=B=C) products.)

Downloads

OSE-CSMH.pdf

CSMH-800-Average.xls

CSMH-800-P-polarization.xls

CSMH-800-S-polarization.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 750 - 850
A=B=C [mm]: 12.7
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±5
Surface flatness of substrate: ?/4
Beam Deviation: 5
Coating: Hypotenuse surface: Dielectric multi-layer coating Four surfaces: Multi-layer anti-reflection coating
Incident angle [°]: 0
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0,3
Surface Quality (Scratch-Dig): 20-10
Clear aperture: 85% of circle to actual dimension (80% of actual aperture for 5 and 7mm dimension (A=B=C) products.)

Downloads

OSE-CSMH.pdf

CSMH-800-Average.xls

CSMH-800-P-polarization.xls

CSMH-800-S-polarization.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 750 - 850
A=B=C [mm]: 15
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±5
Surface flatness of substrate: ?/4
Beam Deviation: 5
Coating: Hypotenuse surface: Dielectric multi-layer coating Four surfaces: Multi-layer anti-reflection coating
Incident angle [°]: 0
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0,3
Surface Quality (Scratch-Dig): 20-10
Clear aperture: 85% of circle to actual dimension (80% of actual aperture for 5 and 7mm dimension (A=B=C) products.)

Downloads

OSE-CSMH.pdf

CSMH-800-Average.xls

CSMH-800-P-polarization.xls

CSMH-800-S-polarization.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 750 - 850
A=B=C [mm]: 20
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±5
Surface flatness of substrate: ?/4
Beam Deviation: 5
Coating: Hypotenuse surface: Dielectric multi-layer coating Four surfaces: Multi-layer anti-reflection coating
Incident angle [°]: 0
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0,3
Surface Quality (Scratch-Dig): 20-10
Clear aperture: 85% of circle to actual dimension (80% of actual aperture for 5 and 7mm dimension (A=B=C) products.)

Downloads

OSE-CSMH.pdf

CSMH-800-Average.xls

CSMH-800-P-polarization.xls

CSMH-800-S-polarization.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 750 - 850
A=B=C [mm]: 25
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±5
Surface flatness of substrate: ?/4
Beam Deviation: 5
Coating: Hypotenuse surface: Dielectric multi-layer coating Four surfaces: Multi-layer anti-reflection coating
Incident angle [°]: 0
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0,3
Surface Quality (Scratch-Dig): 20-10
Clear aperture: 85% of circle to actual dimension (80% of actual aperture for 5 and 7mm dimension (A=B=C) products.)

Downloads

OSE-CSMH.pdf

CSMH-800-Average.xls

CSMH-800-P-polarization.xls

CSMH-800-S-polarization.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 750 - 850
A=B=C [mm]: 30
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±5
Surface flatness of substrate: ?/4
Beam Deviation: 5
Coating: Hypotenuse surface: Dielectric multi-layer coating Four surfaces: Multi-layer anti-reflection coating
Incident angle [°]: 0
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0,3
Surface Quality (Scratch-Dig): 20-10
Clear aperture: 85% of circle to actual dimension (80% of actual aperture for 5 and 7mm dimension (A=B=C) products.)

Downloads

OSE-CSMH.pdf

CSMH-800-Average.xls

CSMH-800-P-polarization.xls

CSMH-800-S-polarization.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 1300 - 1550
A=B=C [mm]: 10
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±5
Surface flatness of substrate: ?/4
Beam Deviation: 5
Coating: Hypotenuse surface: Dielectric multi-layer coating Four surfaces: Multi-layer anti-reflection coating
Incident angle [°]: 0
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0,3
Surface Quality (Scratch-Dig): 20-10
Clear aperture: 85% of circle to actual dimension (80% of actual aperture for 5 and 7mm dimension (A=B=C) products.)

Downloads

OSE-CSMH.pdf

CSMH-1400-Average.xls

CSMH-1400-P-polarization.xls

CSMH-1400-S-polarization.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 1300 - 1550
A=B=C [mm]: 12.7
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±5
Surface flatness of substrate: ?/4
Beam Deviation: 5
Coating: Hypotenuse surface: Dielectric multi-layer coating Four surfaces: Multi-layer anti-reflection coating
Incident angle [°]: 0
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0,3
Surface Quality (Scratch-Dig): 20-10
Clear aperture: 85% of circle to actual dimension (80% of actual aperture for 5 and 7mm dimension (A=B=C) products.)

Downloads

OSE-CSMH.pdf

CSMH-1400-Average.xls

CSMH-1400-P-polarization.xls

CSMH-1400-S-polarization.xls

Opt_Beamsplitters_.zip

Wavelength Range [nm]: 1300 - 1550
A=B=C [mm]: 20
Material: BK7
Reflectance:R;Transmittance [%] : Average 50±5
Surface flatness of substrate: ?/4
Beam Deviation: 5
Coating: Hypotenuse surface: Dielectric multi-layer coating Four surfaces: Multi-layer anti-reflection coating
Incident angle [°]: 0
Divergence ratio (reflectance : transmittance): 1:1
Laser Damage Threshold [J/cm2] : 0,3
Surface Quality (Scratch-Dig): 20-10
Clear aperture: 85% of circle to actual dimension (80% of actual aperture for 5 and 7mm dimension (A=B=C) products.)

Downloads

OSE-CSMH.pdf

CSMH-1400-Average.xls

CSMH-1400-P-polarization.xls

CSMH-1400-S-polarization.xls

Opt_Beamsplitters_.zip
