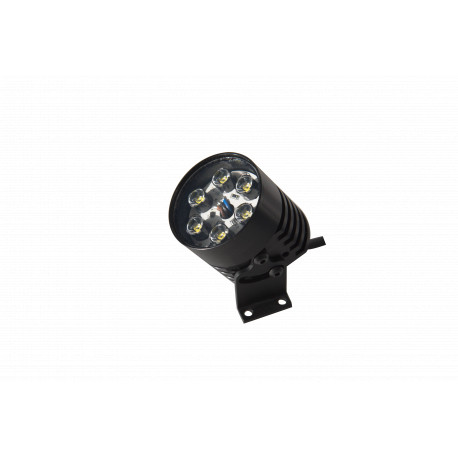

Reference number: GEE-GES
Lighting of medium and large areas, internal illumination of industrial machines and installations. Genesi illuminator for vision systems with cameras.
Besoin de plus d'informations ?
Contactez notre expert.
Notre équipe
Description
| Lighting type | Light Spot |
| Optical properties | |
| Lightcolor | 6K, 4K, 3K, IR850, IR940, UV365-405, Red, Blue, Green, custom |
| Useful length [mm] | see datasheet |
| Beam angle [°] | 20, 40, 60, 120 |
| Cover lens variants | Plexi standard cover, opaline Plexi, safety glass |
| Typical luminous flux [lm] | 900 - 3,600 |
| Electrical properties | |
| Supply voltage [V] | 24 +/- 10% |
| Power consumption [W] | 6 - 24 |
| Supply connection | Standard, M8, M12, S, M8S, M12S, 5M, 5MS, custom |
| Mechanical properties | |
| dimensions | see datasheet |
| Working temperature range [°C] | 0 to +50 |
| IP rating | 67 |
