Reference number: GEE-GEST

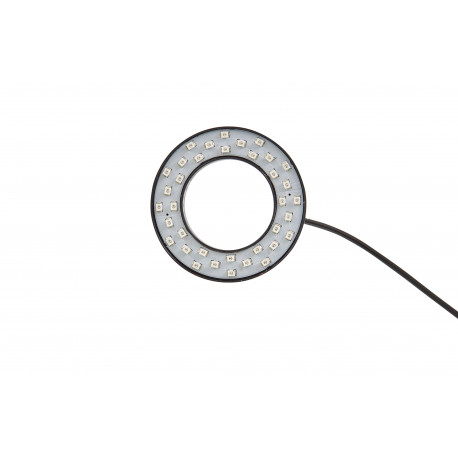

Direct ring light with continuous or strobe driving. GEST illuminator for vision systems with cameras. Available outer diameters from: 42 to 122 mm.
Besoin de plus d'informations ?
Contactez notre expert.
Notre équipe
Description
| Lighting type | Ring |
| Optical properties | |
| Lightcolor | 6K, 4K, 3K, IR730, IR850, IR940, UV365-405, Red, Blue, Green, custom |
| Inner/Outer diameter [mm] | see datasheet |
| Beam angle [°] | 20, 40, 120, 150 |
| Cover lens variants | Transparent, Opaline |
| Typical luminous flux [lm] | 540 - 30,000 |
| Electrical properties | |
| Supply voltage [V] | 24 +/- 10% |
| Power consumption [W] | 3.6 - 20.0 |
| Supply connection | Standard, M8, M12, S, M8S, M12S, 5M, 5MS, custom |
| Mechanical properties | |
| dimensions | see datasheet |
| Working temperature range [°C] | 0 to +40°C |
| IP rating | 20 - 68 |
