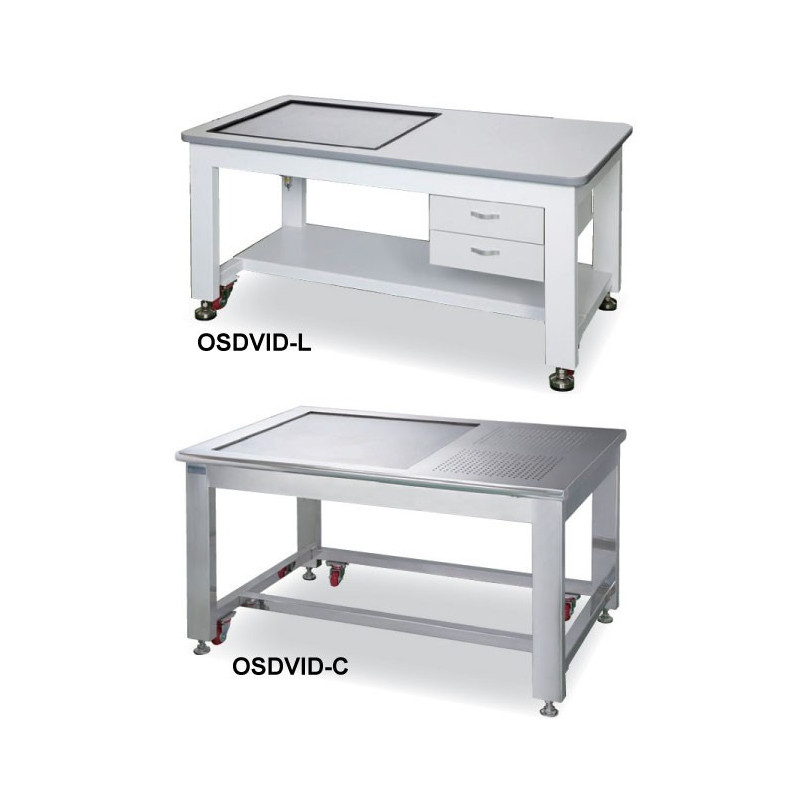

Desk Style Vibration Isolation Systems, C-Series
Reference number: OSE-OSDVID-C-0405-L/R600
C-type for clean rooms.
Besoin de plus d'informations ?
Contactez notre expert.
Notre équipe
Write your question
check_circle Question sent
Your question has been sent!
error Your question cannot be sent!
Description
- Type: Small Table with Substructure
- Natural Frequency: 1.2Hz - 2.0Hz
- Isolation Efficiency: at 10Hz: 75% - 95%, at 20Hz: 85% - 98%
- Levelling Repeatability: ±1.0mm / ±0.05mm
- Net Load Capacity: 500kg
- Shipping Weight: 150 - 250kg
- Material: Frame & Top: All Stainless Steel (?C? Type) Steel tube, Powder Painted (?L? Type) Top: Stainless Steel (?C? Type) Melamine H.P.Boards (?L? Type)
- Operation: 3 - 5kg/cm2 Compressed Air or Bottled Nitrogen
- W x D [mm] : 400x500
- H [mm] : 800
- Load capacity [kg]: 500
- Weight [kg]: 103
- Type: Small Table with Substructure
- Natural Frequency: 1.2Hz - 2.0Hz
- Isolation Efficiency: at 10Hz: 75% - 95%, at 20Hz: 85% - 98%
- Levelling Repeatability: ±1.0mm / ±0.05mm
- Net Load Capacity: 500kg
- Shipping Weight: 150 - 250kg
- Material: Frame & Top: All Stainless Steel (?C? Type) Steel tube, Powder Painted (?L? Type) Top: Stainless Steel (?C? Type) Melamine H.P.Boards (?L? Type)
- Operation: 3 - 5kg/cm2 Compressed Air or Bottled Nitrogen
- W x D [mm] : 500x600
- H [mm] : 800
- Load capacity [kg]: 500
- Weight [kg]: 126
- Type: Small Table with Substructure
- Natural Frequency: 1.2Hz - 2.0Hz
- Isolation Efficiency: at 10Hz: 75% - 95%, at 20Hz: 85% - 98%
- Levelling Repeatability: ±1.0mm / ±0.05mm
- Net Load Capacity: 500kg
- Shipping Weight: 150 - 250kg
- Material: Frame & Top: All Stainless Steel (?C? Type) Steel tube, Powder Painted (?L? Type) Top: Stainless Steel (?C? Type) Melamine H.P.Boards (?L? Type)
- Operation: 3 - 5kg/cm2 Compressed Air or Bottled Nitrogen
- W x D [mm] : 700x700
- H [mm] : 800
- Load capacity [kg]: 500
- Weight [kg]: 183
- Type: Small Table with Substructure
- Natural Frequency: 1.2Hz - 2.0Hz
- Isolation Efficiency: at 10Hz: 75% - 95%, at 20Hz: 85% - 98%
- Levelling Repeatability: ±1.0mm / ±0.05mm
- Net Load Capacity: 500kg
- Shipping Weight: 150 - 250kg
- Material: Frame & Top: All Stainless Steel (?C? Type) Steel tube, Powder Painted (?L? Type) Top: Stainless Steel (?C? Type) Melamine H.P.Boards (?L? Type)
- Operation: 3 - 5kg/cm2 Compressed Air or Bottled Nitrogen
- W x D [mm] : 800x600
- H [mm] : 800
- Load capacity [kg]: 500
- Weight [kg]: 178
- Type: Small Table with Substructure
- Natural Frequency: 1.2Hz - 2.0Hz
- Isolation Efficiency: at 10Hz: 75% - 95%, at 20Hz: 85% - 98%
- Levelling Repeatability: ±1.0mm / ±0.05mm
- Net Load Capacity: 500kg
- Shipping Weight: 150 - 250kg
- Material: Frame & Top: All Stainless Steel (?C? Type) Steel tube, Powder Painted (?L? Type) Top: Stainless Steel (?C? Type) Melamine H.P.Boards (?L? Type)
- Operation: 3 - 5kg/cm2 Compressed Air or Bottled Nitrogen
- W x D [mm] : 800x800
- H [mm] : 800
- Load capacity [kg]: 500
- Weight [kg]: 203
- Type: Small Table with Substructure
- Natural Frequency: 1.2Hz - 2.0Hz
- Isolation Efficiency: at 10Hz: 75% - 95%, at 20Hz: 85% - 98%
- Levelling Repeatability: ±1.0mm / ±0.05mm
- Net Load Capacity: 500kg
- Shipping Weight: 150 - 250kg
- Material: Frame & Top: All Stainless Steel (?C? Type) Steel tube, Powder Painted (?L? Type) Top: Stainless Steel (?C? Type) Melamine H.P.Boards (?L? Type)
- Operation: 3 - 5kg/cm2 Compressed Air or Bottled Nitrogen
- W x D [mm] : 900x600
- H [mm] : 800
- Load capacity [kg]: 500
- Weight [kg]: 192
- Type: Small Table with Substructure
- Natural Frequency: 1.2Hz - 2.0Hz
- Isolation Efficiency: at 10Hz: 75% - 95%, at 20Hz: 85% - 98%
- Levelling Repeatability: ±1.0mm / ±0.05mm
- Net Load Capacity: 500kg
- Shipping Weight: 150 - 250kg
- Material: Frame & Top: All Stainless Steel (?C? Type) Steel tube, Powder Painted (?L? Type) Top: Stainless Steel (?C? Type) Melamine H.P.Boards (?L? Type)
- Operation: 3 - 5kg/cm2 Compressed Air or Bottled Nitrogen
- W x D [mm] : 900x700
- H [mm] : 800
- Load capacity [kg]: 500
- Weight [kg]: 207
- Type: Small Table with Substructure
- Natural Frequency: 1.2Hz - 2.0Hz
- Isolation Efficiency: at 10Hz: 75% - 95%, at 20Hz: 85% - 98%
- Levelling Repeatability: ±1.0mm / ±0.05mm
- Net Load Capacity: 500kg
- Shipping Weight: 150 - 250kg
- Material: Frame & Top: All Stainless Steel (?C? Type) Steel tube, Powder Painted (?L? Type) Top: Stainless Steel (?C? Type) Melamine H.P.Boards (?L? Type)
- Operation: 3 - 5kg/cm2 Compressed Air or Bottled Nitrogen
- W x D [mm] : 900x900
- H [mm] : 800
- Load capacity [kg]: 500
- Weight [kg]: 235
- Type: Small Table with Substructure
- Natural Frequency: 1.2Hz - 2.0Hz
- Isolation Efficiency: at 10Hz: 75% - 95%, at 20Hz: 85% - 98%
- Levelling Repeatability: ±1.0mm / ±0.05mm
- Net Load Capacity: 500kg
- Shipping Weight: 150 - 250kg
- Material: Frame & Top: All Stainless Steel (?C? Type) Steel tube, Powder Painted (?L? Type) Top: Stainless Steel (?C? Type) Melamine H.P.Boards (?L? Type)
- Operation: 3 - 5kg/cm2 Compressed Air or Bottled Nitrogen
- W x D [mm] : 1,000x700
- H [mm] : 800
- Load capacity [kg]: 500
- Weight [kg]: 219
- Type: Small Table with Substructure
- Natural Frequency: 1.2Hz - 2.0Hz
- Isolation Efficiency: at 10Hz: 75% - 95%, at 20Hz: 85% - 98%
- Levelling Repeatability: ±1.0mm / ±0.05mm
- Net Load Capacity: 500kg
- Shipping Weight: 150 - 250kg
- Material: Frame & Top: All Stainless Steel (?C? Type) Steel tube, Powder Painted (?L? Type) Top: Stainless Steel (?C? Type) Melamine H.P.Boards (?L? Type)
- Operation: 3 - 5kg/cm2 Compressed Air or Bottled Nitrogen
- W x D [mm] : 1,200x700
- H [mm] : 800
- Load capacity [kg]: 500
- Weight [kg]: 245
- Type: Small Table with Substructure
- Natural Frequency: 1.2Hz - 2.0Hz
- Isolation Efficiency: at 10Hz: 75% - 95%, at 20Hz: 85% - 98%
- Levelling Repeatability: ±1.0mm / ±0.05mm
- Net Load Capacity: 500kg
- Shipping Weight: 150 - 250kg
- Material: Frame & Top: All Stainless Steel (?C? Type) Steel tube, Powder Painted (?L? Type) Top: Stainless Steel (?C? Type) Melamine H.P.Boards (?L? Type)
- Operation: 3 - 5kg/cm2 Compressed Air or Bottled Nitrogen
- W x D [mm] : 1,200x800
- H [mm] : 800
- Load capacity [kg]: 500
- Weight [kg]: 266
- Type: Small Table with Substructure
- Natural Frequency: 1.2Hz - 2.0Hz
- Isolation Efficiency: at 10Hz: 75% - 95%, at 20Hz: 85% - 98%
- Levelling Repeatability: ±1.0mm / ±0.05mm
- Net Load Capacity: 500kg
- Shipping Weight: 150 - 250kg
- Material: Frame & Top: All Stainless Steel (?C? Type) Steel tube, Powder Painted (?L? Type) Top: Stainless Steel (?C? Type) Melamine H.P.Boards (?L? Type)
- Operation: 3 - 5kg/cm2 Compressed Air or Bottled Nitrogen
- W x D [mm] : 1,500x800
- H [mm] : 800
- Load capacity [kg]: 500
- Weight [kg]: 313
C-type for clean rooms.
