Optics & Optomechanics
Optomechanics
Micrometer Heads

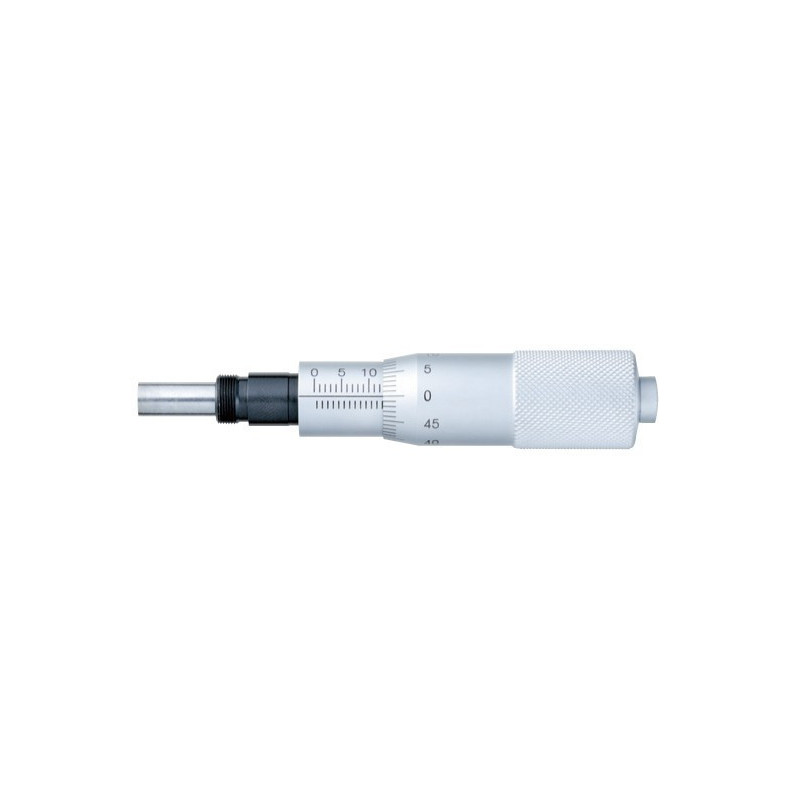

Micrometer Heads, OSE-SHN2

Micrometer Heads, OSE-SHN2

Reference number: OSE-SHN2-25

Micormeter Heads

Travel in mm

Travel in mm

Need more info?
Contact our expert.

Our Team

I am interested in:

an offer

information material

a call and advice

*Required field

reCAPTCHA

Write your question

Email address^*

Message^*

^* Required fields

Question sent

Your question has been sent!

Your question cannot be sent!

Description

Micrometer heads used with manual stages and holders.

Travel: 0 - 25
Type: Standard
Readable Resolution [mm]: 0,01
Lead of Actuator [mm]: 0,5
Load Capacity (Static load) [N]: 39,2
Weight [kg]: 0,09

Downloads

OSE_SHS_SHN_SHH_MHN.pdf

Actuators_1.pdf

Travel: 0 - 40
Type: Kleiner Durchmesser
Readable Resolution [mm]: 0,01
Lead of Actuator [mm]: 0,5
Load Capacity (Static load) [N]: 39,2
Weight [kg]: 0,12

Downloads

OSE_SHS_SHN_SHH_MHN.pdf

Actuators_1.pdf

Micormeter Heads
