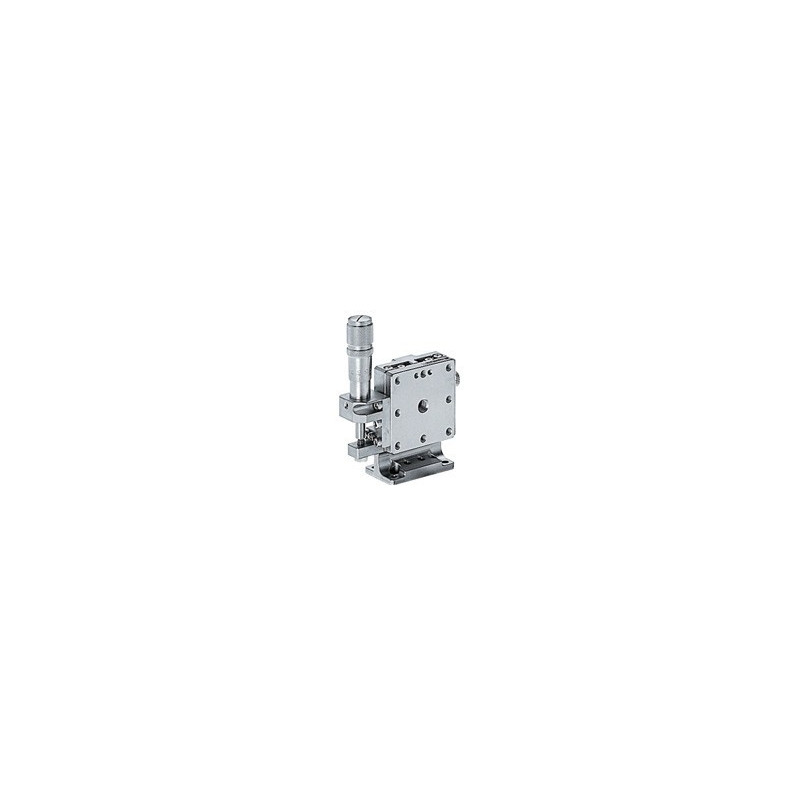

OSE-TSDS-3L: Z axis, 25 x 25 mm

Reference number: OSE-TSDS-253L

Taille de la table en mm

Version

Taille de la table en mm

Version

Besoin de plus d'informations ?
Contactez notre expert.

Notre équipe

Description

Type: Z axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel z-axis [± mm]: 3
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 14.7
Travel Accuracy / Straightness [µm]: 1
Max. Moment Capacity / Pitch [Nm]: 2.2
Max. Moment Capacity / Roll [Nm]: 2.1
Moment Stiffness / Pitch [´´/Ncm]: 3.3
Parallelism [µm]: 30
Running Parallelism: 20
Gewicht in kg: 0.1

Downloads

OSE-TSDS-253L_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel z-axis [± mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 1
Max. Moment Capacity / Pitch [Nm]: 5
Max. Moment Capacity / Roll [Nm]: 5
Moment Stiffness / Pitch [´´/Ncm]: 0.6
Parallelism [µm]: 30
Running Parallelism: 20
Gewicht in kg: 0.3

Downloads

OSE-TSDS-403L_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 6.5
Travel z-axis [± mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 1
Max. Moment Capacity / Pitch [Nm]: 8
Max. Moment Capacity / Roll [Nm]: 8
Moment Stiffness / Pitch [´´/Ncm]: 0.25
Parallelism [µm]: 30
Running Parallelism: 20
Gewicht in kg: 0.9

Downloads

OSE-TSDS-3.pdf

OSE-TSDS-653L-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel z-axis [± mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 1
Max. Moment Capacity / Pitch [Nm]: 5
Max. Moment Capacity / Roll [Nm]: 5
Moment Stiffness / Pitch [´´/Ncm]: 0.6
Parallelism [µm]: 30
Running Parallelism: 20
Gewicht in kg: 0.3

Downloads

OSE-TSDS-3L.pdf

OSE-TSDS-403LUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 6.5
Travel z-axis [± mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 1
Max. Moment Capacity / Pitch [Nm]: 8
Max. Moment Capacity / Roll [Nm]: 8
Moment Stiffness / Pitch [´´/Ncm]: 0.25
Parallelism [µm]: 30
Running Parallelism: 20
Gewicht in kg: 0.8

Downloads

OSE-TSDS-3L.pdf

OSE-TSDS-603L_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 6.5
Travel z-axis [± mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 1
Max. Moment Capacity / Pitch [Nm]: 8
Max. Moment Capacity / Roll [Nm]: 8
Moment Stiffness / Pitch [´´/Ncm]: 0.25
Parallelism [µm]: 30
Running Parallelism: 20
Gewicht in kg: 0.9

Downloads

OSE-TSDS-4.pdf

OSE-TSDS-653LUU_STP.zip

ManualStages.zip

Actuators.pdf
