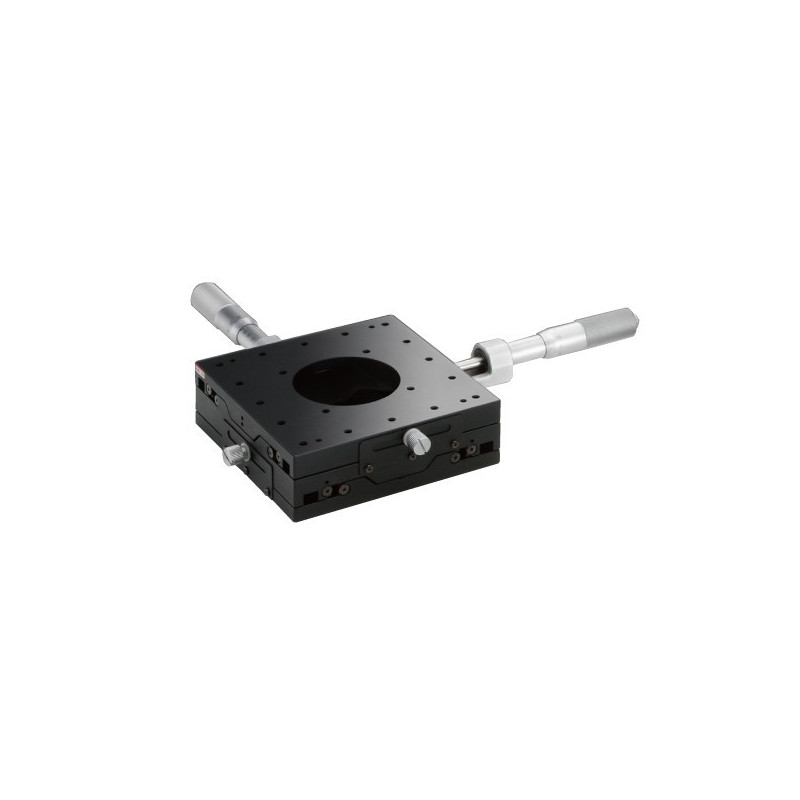

OSE-TSD-1202: XY axis, 120 x 120 mm

Reference number: OSE-TSD-1202CH

Option

Modèle

Version

Position du micromètre

Option

Modèle

Version

Position du micromètre

Besoin de plus d'informations ?
Contactez notre expert.

Notre équipe

Description

Type: XY axis
Tabel Size [mm]: 120×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [± mm]: 20
Travel y-axis [± mm]: 20
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 686
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch [´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 49
Max. Moment Capacity / Roll [Nm]: 49
Max. Moment Capacity / Yaw [Nm]: 27
Moment Stiffness / Pitch [´´/Ncm]: 0.05
Moment Stiffness / Roll [´´/Ncm]: 0.05
Moment Stiffness / Yaw [´´/Ncm]: 0.06
Parallelism [µm]: 50
Running Parallelism: 25
Orthogonality [µm]: 10
Gewicht in kg: 3.1

Downloads

OSE-TSD-251-252.pdf

OSE-TSD-1201SRHUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 120×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Travel y-axis[± mm]: 20
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 686
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 49
Max. Moment Capacity / Roll [Nm]: 49
Max. Moment Capacity / Yaw [Nm]: 27
Moment Stiffness / Pitch [´´/Ncm]: 0.05
Moment Stiffness / Roll [´´/Ncm]: 0.05
Moment Stiffness / Yaw [´´/Ncm]: 0.06
Parallelism [µm]: 50
Running Parallelism: 25
Orthogonality [µm]: 10
Gewicht in kg: 3.1

Downloads

OSE-TSD-251-252.pdf

OSE-TSD-1201SRHUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 120×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Travel y-axis[± mm]: 20
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 686
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 49
Max. Moment Capacity / Roll [Nm]: 49
Max. Moment Capacity / Yaw [Nm]: 27
Moment Stiffness / Pitch [´´/Ncm]: 0.05
Moment Stiffness / Roll [´´/Ncm]: 0.05
Moment Stiffness / Yaw [´´/Ncm]: 0.06
Parallelism [µm]: 50
Running Parallelism: 25
Orthogonality [µm]: 10
Gewicht in kg: 3.1

Downloads

OSE-TSD_TSD-SDM.pdf

OSE-TSD-1201SRHUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 120×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Travel y-axis[± mm]: 20
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 686
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 49
Max. Moment Capacity / Roll [Nm]: 49
Max. Moment Capacity / Yaw [Nm]: 27
Moment Stiffness / Pitch [´´/Ncm]: 0.05
Moment Stiffness / Roll [´´/Ncm]: 0.05
Moment Stiffness / Yaw [´´/Ncm]: 0.06
Parallelism [µm]: 50
Running Parallelism: 25
Orthogonality [µm]: 10
Gewicht in kg: 3.1

Downloads

OSE-TSD-651-M6_UU.pdf

OSE-TSD-1201SRHUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 120×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Travel y-axis[± mm]: 20
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 686
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 49
Max. Moment Capacity / Roll [Nm]: 49
Max. Moment Capacity / Yaw [Nm]: 27
Moment Stiffness / Pitch [´´/Ncm]: 0.05
Moment Stiffness / Roll [´´/Ncm]: 0.05
Moment Stiffness / Yaw [´´/Ncm]: 0.06
Parallelism [µm]: 50
Running Parallelism: 25
Orthogonality [µm]: 10
Gewicht in kg: 3.1

Downloads

OSE-TSD-651-M6_UU.pdf

OSE-TSD-1201SRHUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 120×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Travel y-axis[± mm]: 20
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 686
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 49
Max. Moment Capacity / Roll [Nm]: 49
Max. Moment Capacity / Yaw [Nm]: 27
Moment Stiffness / Pitch [´´/Ncm]: 0.05
Moment Stiffness / Roll [´´/Ncm]: 0.05
Moment Stiffness / Yaw [´´/Ncm]: 0.06
Parallelism [µm]: 50
Running Parallelism: 25
Orthogonality [µm]: 10
Gewicht in kg: 3.1

Downloads

OSE-TSD-1202.pdf

OSE-TSD-1201SRHUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 120×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Travel y-axis[± mm]: 20
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 686
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 49
Max. Moment Capacity / Roll [Nm]: 49
Max. Moment Capacity / Yaw [Nm]: 27
Moment Stiffness / Pitch [´´/Ncm]: 0.05
Moment Stiffness / Roll [´´/Ncm]: 0.05
Moment Stiffness / Yaw [´´/Ncm]: 0.06
Parallelism [µm]: 50
Running Parallelism: 25
Orthogonality [µm]: 10
Gewicht in kg: 3.1

Downloads

OSE-TSD-1202.pdf

OSE-TSD-1201SRHUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 120×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Travel y-axis[± mm]: 20
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 686
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 49
Max. Moment Capacity / Roll [Nm]: 49
Max. Moment Capacity / Yaw [Nm]: 27
Moment Stiffness / Pitch [´´/Ncm]: 0.05
Moment Stiffness / Roll [´´/Ncm]: 0.05
Moment Stiffness / Yaw [´´/Ncm]: 0.06
Parallelism [µm]: 50
Running Parallelism: 25
Orthogonality [µm]: 10
Gewicht in kg: 3.1

Downloads

OSE-TSD-1202.pdf

OSE-TSD-1201SRHUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 120×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Travel y-axis[± mm]: 20
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 686
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 49
Max. Moment Capacity / Roll [Nm]: 49
Max. Moment Capacity / Yaw [Nm]: 27
Moment Stiffness / Pitch [´´/Ncm]: 0.05
Moment Stiffness / Roll [´´/Ncm]: 0.05
Moment Stiffness / Yaw [´´/Ncm]: 0.06
Parallelism [µm]: 50
Running Parallelism: 25
Orthogonality [µm]: 10
Gewicht in kg: 3.1

Downloads

OSE-TSD_TSD-SDM.pdf

OSE-TSD-1201SRHUU_STP.zip

ManualStages.zip

Actuators.pdf
